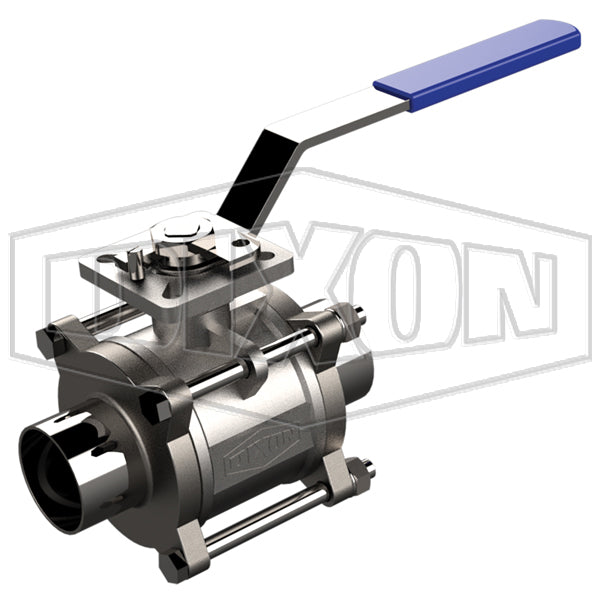

BV2CV-100BB-A Dixon Valve 1" Two-Way Encapsulated Sanitary 3 Piece Weld End Ball Valve - Stainless Steel - Standard Handle - Seat: Virgin PTFE

BV2CV-100BB-A Dixon Valve 1" Two-Way Encapsulated Sanitary 3 Piece Weld End Ball Valve - Stainless Steel - Standard Handle - Seat: Virgin PTFE

Save $19.70 Save $19.70
$177.27
$177.27 - $177.27
$177.27
$157.57
$157.57 - $157.57
$157.57

Dixon Sanitary Valves
Two-Way Encapsulated Sanitary 3 Piece Weld End Ball Valve - Stainless Steel - Standard Handle

Seat: Virgin PTFE

Hygienic ball valve for food and chemical use with ISO mount plate.
Specifications for Variant SKU: BV2CV-100BB-A Dixon
Shape (Orientation): Straight
Ends Configuration: 1in Weld End, 1in Weld End, Some Ends Match
Material(s): Stainless Steel
Seal Material(s): PTFE
Features:
  • Balanced encapsulated construction minimizes cold flow.
  • Live-loaded stem packing.
  • Precision stainless steel balls reduce torque and friction losses while extending seat life.
  • Lockable handle can prevent accidental actuation.
  • Standard internal entry blow out proof stem design.
  • Full port design matches ball and seat ports to tube ID for lower pressure drop and less turbulent flow.
  • Compact design for areas with tight space restrictions.
Construction:
  • PTFE seal.
  • CF8M 316 Stainless Steel.
  • ID polish is R? 32 minimum.
  • Fully encapsulated construction produces bubble tight seal.
  • Integral ISO 5211 mounting pad.
  • Material: CF8M Stainless Steel.
Part Number Size Dimensions
A B C D E F
(mm)		 G
(mm)		 H
(mm)		 Pressure Rating
BV2CV-050BB-A 1/2" 4.3" 4.9" 1.5" 2.0" 3.1" 36mm 42mm 9mm 1,000 PSI WOG
BV2CV-075BB-A 3/4" 4.7" 4.9" 1.8" 2.2" 3.4" 36mm 42mm 9mm 1,000 PSI WOG
BV2CV-100BB-A 1" 4.9" 5.4" 2.1" 2.4" 3.6" 42mm 50mm 11mm 1,000 PSI WOG
BV2CV-150BB-A 1-1/2" 5.6" 9.3" 2.7" 3.2" 4.4" 50mm 70mm 14mm 1,000 PSI WOG
BV2CV-200BB-A 2" 6.4" 9.3" 3.1" 3.8" 4.7" 50mm 70mm 14mm 1,000 PSI WOG
BV2CV-250BB-A 2-1/2" 7.8" 18.0" 3.8" 4.9" 5.2" 70mm 102mm 17mm 800 PSI WOG
BV2CV-300BB-A 3" 9.0" 18.3" 4.2" 5.4" 5.7" 70mm 102mm 17mm 800 PSI WOG
BV2CV-400BB-A 4" 9.6" 18.3" 5.3" 8.7" 6.9" 102mm 125mm 22mm 800 PSI WOG
