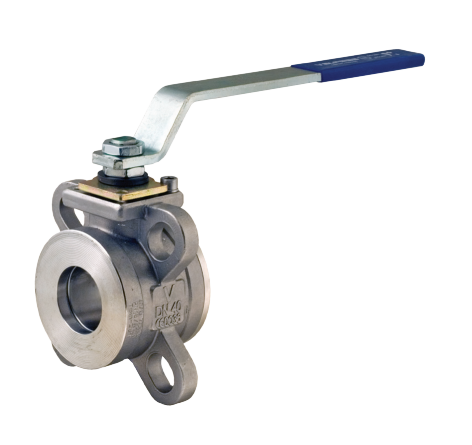

BV2IC-100WW-A Dixon Valve 1" Sanitary Wafer Ball Valve - 316 Stainless Steel - Seat: PTFE

BV2IC-100WW-A Dixon Valve 1" Sanitary Wafer Ball Valve - 316 Stainless Steel - Seat: PTFE

$0.00 - $0.00
$0.00
$0.00
$0.00 - $0.00
$0.00

Dixon Sanitary Valves
BV2IC Series Industrial Stainless Steel Wafer Ball Valve - 316 Stainless Steel

Seat: PTFE
Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for Variant SKU: BV2IC-100WW-A Dixon
Shape (Orientation): Straight
Material(s): 316 Stainless Steel
Seal Material(s): PTFE
Features:
  • ANSI Class 150 wafer style ball valve.
  • Full port, sizes 1" to 4".
  • Blow out proof stem.
  • Ideal option to high performance butterfly valves.
  • Space saving design.
  • Antistatic stem design.
  • Locking plate included.
Materials:
  • Body: CF8M.
  • Ball and End Connection: 316 stainless steel.
  • Elastomers: FKM.
  • Stem seal: PTFE.
Part Number Size A B C D E F G H I J K
BV2IC-100WW-A 1" ANSI 150 1.81" 6.85" 3.58" 2.81" 0.90" 0.41" M12 0.31" F04 4xM5
BV2IC-125WW-A 1-1/4" ANSI 150 2.12" 6.85" 3.74" 2.95" 0.90" 0.41" M12 0.31" F04 4xM5
BV2IC-150WW-A 1-1/2" ANSI 150 2.50" 9.84" 4.33" 3.34" 1.10" 0.59" M16 0.39" F05 4xM6
BV2IC-200WW-A 2" ANSI 150 3.23" 9.84" 4.68" 3.68" 1.10" 0.59" M16 0.39" F05 4xM6
BV2IC-250WW-A 2-1/2" ANSI 150 4.05" 12.63" 5.70" 4.78" 1.31" 0.70" M20 0.55" F07 4xM8
BV2IC-300WW-A 3" ANSI 150 4.80" 12.63" 6.06" 5.15" 1.31" 0.70" M20 0.55" F07 4xM8
BV2IC-400WW-A 4" ANSI 150 5.60" 12.53" 6.57" 5.67" 1.31" 0.70" M20 0.55" F10 4xM8
