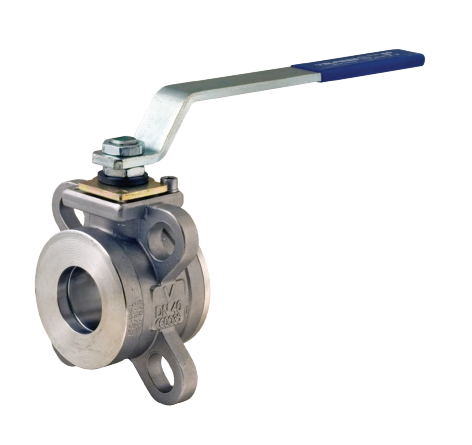

BV2IC-250WW-A Dixon Valve 2-1/2" Sanitary Wafer Ball Valve - 316 Stainless Steel - Seat: PTFE

BV2IC-250WW-A Dixon Valve 2-1/2" Sanitary Wafer Ball Valve - 316 Stainless Steel - Seat: PTFE

$0.00 - $0.00
$0.00
$0.00
$0.00 - $0.00
$0.00

Dixon Valve
Sanitary Industrial Wafer Ball Valve | 316 Stainless Steel

Full Port valve with 25% Carbon Reinforced PTFE Seat.
Specifications for Variant SKU: BV2IC-250WW-A Dixon
Shape (Orientation): Straight
Material(s): 316 Stainless Steel
Seal Material(s): PTFE
Sanitary Ball Valves

Dixon Valve | Sanitary Industrial Wafer Ball Valve

Full Port valve with 25% Carbon Reinforced PTFE Seat.

1

What are the main product features?
  • ANSI Class 150 wafer style ball valve.
  • Full port, sizes 1" to 4".
  • Blow out proof stem.
  • Ideal option to high performance butterfly valves.
  • Space saving design.
  • Antistatic stem design.
  • Locking plate included.
2

What are the construction specifications?
  • Body: CF8M.
  • Ball and End Connection: 316 stainless steel.
  • Elastomers: FKM.
  • Stem seal: PTFE.
3

Which sizes or configurations are available?
Part Number Size A B C D E F G H I J K
BV2IC-100WW-A 1" ANSI 150 1.81" 6.85" 3.58" 2.81" 0.90" 0.41" M12 0.31" F04 4xM5
BV2IC-125WW-A 1-1/4" ANSI 150 2.12" 6.85" 3.74" 2.95" 0.90" 0.41" M12 0.31" F04 4xM5
BV2IC-150WW-A 1-1/2" ANSI 150 2.50" 9.84" 4.33" 3.34" 1.10" 0.59" M16 0.39" F05 4xM6
BV2IC-200WW-A 2" ANSI 150 3.23" 9.84" 4.68" 3.68" 1.10" 0.59" M16 0.39" F05 4xM6
BV2IC-250WW-A 2-1/2" ANSI 150 4.05" 12.63" 5.70" 4.78" 1.31" 0.70" M20 0.55" F07 4xM8
BV2IC-300WW-A 3" ANSI 150 4.80" 12.63" 6.06" 5.15" 1.31" 0.70" M20 0.55" F07 4xM8
BV2IC-400WW-A 4" ANSI 150 5.60" 12.53" 6.57" 5.67" 1.31" 0.70" M20 0.55" F10 4xM8
