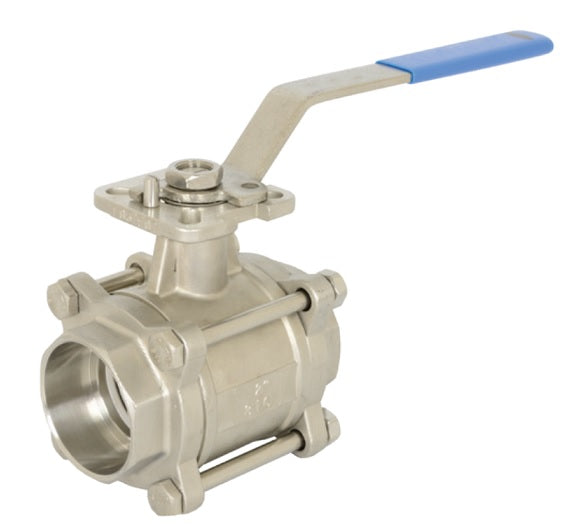

BV2IGN07533-A by Dixon Valve | 3-Piece Industrial Ball Valve Socket Weld | Full Port | 3/4" Female NPT x 3/4" Female NPT | Stainless Steel

BV2IGN07533-A by Dixon Valve | 3-Piece Industrial Ball Valve | Full Port | 3/4" Socket Weld End x 3/4" Socket Weld End | Stainless Steel

Save $59.57 Save $59.57
$148.93
$148.93 - $148.93
$148.93
$89.36
$89.36 - $89.36
$89.36

Dixon Valve & Coupling
3-Piece Industrial Ball Valve | CF8M Stainless Steel
Specifications for Variant SKU: BV2IGN07533-A Dixon
Shape (Orientation): Straight
Ends Configuration: 3/4in Socket Weld End, 3/4in Socket Weld End, Some Ends Match
Material(s): Stainless Steel
Features:
  • Blowout-proof stem.
  • Live-loaded stem packing.
  • Swing out design for easy maintenance.
  • ISO 5211 mounting pad.
Materials:
  • Body: CF8M Stainless Steel
  • RTFE seat and seals.
Specifications:
  • Maximum temperature: 400°F (200°C)
  • Maximum pressure:
    1/4" - 1/2" 1,000 PSI WOG at 65°F
    2-1/2" - 3" 800 PSI WOG at 65°F
    4" 600 PSI WOG at 65°F
Part Number Socket Weld End x Socket Weld End Port PSI at 65°F Body Length
BV2IGN05033-A 1/2" Full 1000 PSI 2.8"
BV2IGN07533-A 3/4" Full 1000 PSI 3.1"
BV2IGN12533-A 1-1/4" Full 1000 PSI 4.1"
BV2IGN15033-A 1-1/2" Full 1000 PSI 4.4"
BV2IGN20033-A 2" Full 1000 PSI 5.1"
BV2IGN25033-A 2-1/2" Full 800 PSI 6.6"
BV2IGN30033-A 3" Full 800 PSI 7.3"
