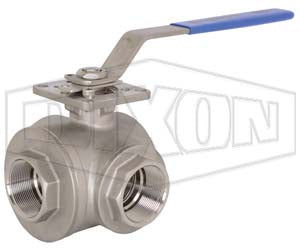

BV3IGLF-0381-A Dixon Valve 3/8" Three-Way "L" Industrial Stainless Steel Ball Valve - Female NPT - Seat: RTFE

BV3IGLF-0381-A Dixon Valve 3/8" Three-Way "L" Industrial Stainless Steel Ball Valve - Female NPT - Seat: RTFE

Save $124.82 Save $124.82
$312.05
$312.05 - $312.05
$312.05
$187.23
$187.23 - $187.23
$187.23

Dixon Sanitary Valves
Three-Way "L" Industrial Stainless Steel Ball Valve - Female NPT

Seat: RTFE
Specifications for Variant SKU: BV3IGLF-0381-A Dixon
Shape (Orientation): Tee
Ends Configuration: 3/8in Female NPT, 3/8in Female NPT, 3/8in Female NPT, Some Ends Match
Material(s): Stainless Steel
Seal Material(s): RTFE
Features:
  • Full Port.
  • FNPT end connection.
  • Blow-out proof stem.
  • Live-loaded stem packing.
  • Seal: RTFE
  • Maximum Temperature: 350°F (177°C)
  • Flow: 3-Way
Construction:
  • CF8M stainless steel body and ball.
  • ISO 5211 mounting pad.
Part Number Size Maximum Operating Pressure
BV3IGLF-0251-A 1/4" 1000 PSI WOG
BV3IGLF-0381-A 3/8" 1000 PSI WOG
BV3IGLF-0501-A 1/2" 1000 PSI WOG
BV3IGLF-0751-A 3/4" 1000 PSI WOG
BV3IGLF-1001-A 1" 1000 PSI WOG
BV3IGLF-1251-A 1-1/4" 800 PSI WOG
BV3IGLF-1501-A 1-1/2" 800 PSI WOG
BV3IGLF-2001-A 2" 800 PSI WOG
