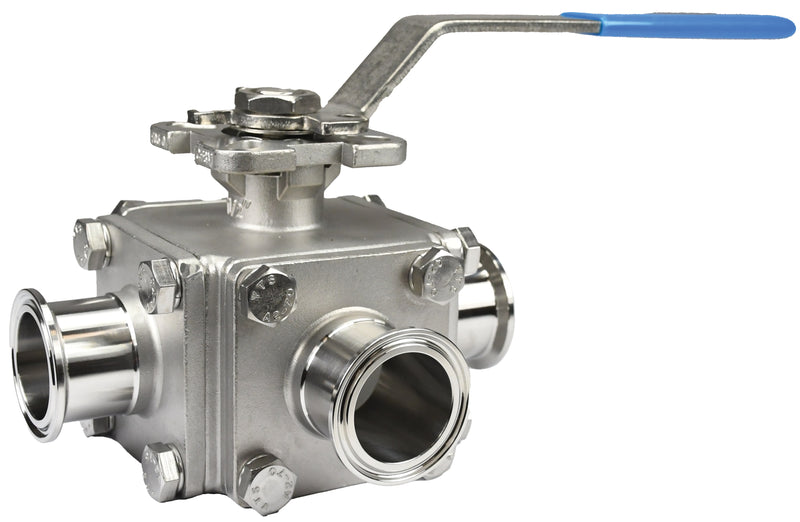

BV3SGTR400C-A Dixon Valve 4" Sanitary Three-Way "T" Multi-Port Stainless Steel Clamp End Ball Valve (Reduced Port) - Seat: 15% Glass Reinforced RTFE

BV3SGTR400C-A Dixon Valve 4" Sanitary Three-Way "T" Multi-Port Stainless Steel Clamp End Ball Valve (Reduced Port) - Seat: 15% Glass Reinforced RTFE

$0.00 - $0.00
$0.00
$0.00
$0.00 - $0.00
$0.00

Dixon Sanitary Valves
Sanitary Three-Way "T" Multi-Port Stainless Steel Clamp End Ball Valve (Reduced Port) - Clamp Ends

Seat: 15% Glass Reinforced RTFE
Specifications for Variant SKU: BV3SGTR400C-A Dixon
Shape (Orientation): Tee
Material(s): Stainless Steel
Seal Material(s): Glass Reinforced RTFE
Features:
  • Reduced port design
  • Blow-out proof stem
  • Live-loaded stem packing
  • Lock-out, tag out
  • Port: T Port
Construction:
  • CF8M stainless body, ends and ball.
  • 15% glass reinforced RTFE seat is specified for higher temperature and pressure rating than PTFE. Specified for applications requiring higher cycle life than PTFE. Food Grade Material.
  • ISO 5211 mounting pad.
Part Number Size Dimensions
A B C D E F G H Break
Torque		 Pressure
Rating
BV3SGTR400C-A 4" 11.4" 6.3" 7.0" 5.4" 18.3" 22mm 102mm 125mm 2255 in. lbs. 300 PSI WOG
Dixon Valve & Coupling

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
