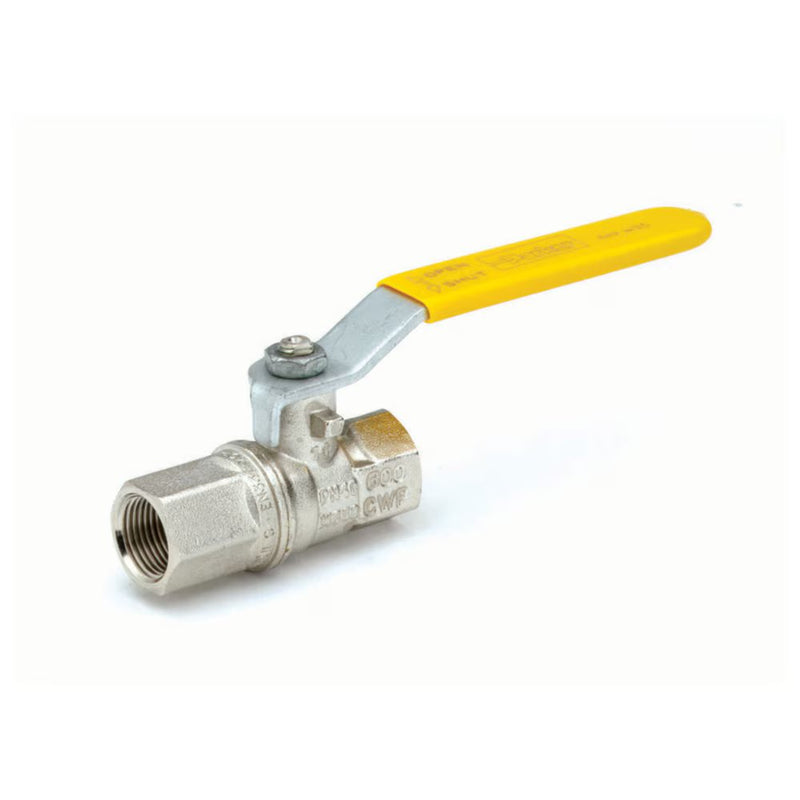

BVG4-1L by Parker | Ball Valves | 1" Female BSPP Thread w/ Lever Handle | Straight | Nickel-Plated Brass

Name: BVG4-1L by Parker | Ball Valves | 1" Female BSPP Thread w/ Lever Handle | Straight | Nickel-Plated Brass
Brand: Parker Fluid Connections Division
SKU: BVG4-1L Parker
Price: 199.76 USD
Availability: InStock

Save $29.35

$229.11

$229.11 - $229.11

$229.11

$199.76

$199.76 - $199.76

$199.76

by Parker Hannifin
Ball Valve Series BVGL:BVGL BSPP Female/Female Valve with Lever Handle

Specifications for Variant SKU: BVG4-1L Parker
Series:	BVGL Series
Shape (Orientation):	Straight
Material(s):	Nickel-Plated Brass, Chrome-Plated Brass
Seal Material(s):	PTFE
Special Properties:	Valved

Product Features:	Nickel plated brass body Chrome plated brass ball PTFE seats/seals Fluorocarbon stem seal
Specification:	Female threads manufactured in accordance to DIN 2999/ISO 228


Part Number	DN (mm)	Thread BSPP	C	H	L	L1	O
BVG4-1/4L	8 mm	1/4"	20 mm	38 mm	50 mm	82 mm	25.0 mm
BVG4-3/8L	10 mm	3/8"	20 mm	38 mm	60 mm	82 mm	25.0 mm
BVG4-1/2L	15 mm	1/2"	25 mm	43 mm	75 mm	100 mm	32.5 mm
BVG4-3/4L	20 mm	3/4"	32 mm	50 mm	80 mm	120 mm	39.0 mm
BVG4-1L	25 mm	1"	41 mm	54 mm	90 mm	120 mm	47.5 mm
BVG4-1.1/4L	32 mm	1-1/4"	50 mm	73 mm	110 mm	158 mm	59.0 mm
BVG4-1.1/2L	40 mm	1-1/2"	55 mm	79 mm	120 mm	158 mm	71.5 mm
BVG4-2L	50 mm	2"	70 mm	86 mm	140 mm	158 mm	86.0 mm
