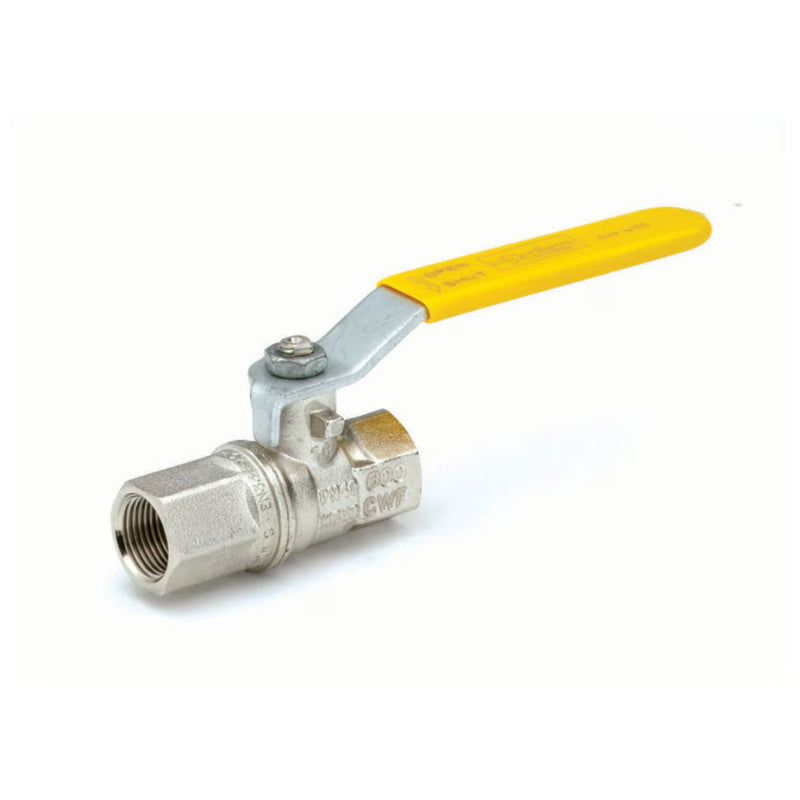

BVG4-3/8L by Parker | Ball Valves | 3/8" Female BSPP Thread w/ Lever Handle | Straight | Nickel-Plated Brass

BVG4-3/8L by Parker | Ball Valves | 3/8" Female BSPP Thread w/ Lever Handle | Straight | Nickel-Plated Brass

Save $32.78 Save $32.78
$81.95
$81.95 - $81.95
$81.95
$49.17
$49.17 - $49.17
$49.17

by Parker Hannifin
Ball Valve Series BVGL:BVGL BSPP Female/Female Valve with Lever Handle
Specifications for Variant SKU: BVG4-3/8L Parker
Series: BVGL Series
Shape (Orientation): Straight
Material(s): Nickel-Plated Brass, Chrome-Plated Brass
Seal Material(s): PTFE
Special Properties: Valved
Product Features:
  • Nickel plated brass body
  • Chrome plated brass ball
  • PTFE seats/seals
  • Fluorocarbon stem seal
Specification: Female threads manufactured in accordance to DIN 2999/ISO 228
Part Number DN (mm) Thread BSPP C H L L1 O
BVG4-1/4L 8 mm 1/4" 20 mm 38 mm 50 mm 82 mm 25.0 mm
BVG4-3/8L 10 mm 3/8" 20 mm 38 mm 60 mm 82 mm 25.0 mm
BVG4-1/2L 15 mm 1/2" 25 mm 43 mm 75 mm 100 mm 32.5 mm
BVG4-3/4L 20 mm 3/4" 32 mm 50 mm 80 mm 120 mm 39.0 mm
BVG4-1L 25 mm 1" 41 mm 54 mm 90 mm 120 mm 47.5 mm
BVG4-1.1/4L 32 mm 1-1/4" 50 mm 73 mm 110 mm 158 mm 59.0 mm
BVG4-1.1/2L 40 mm 1-1/2" 55 mm 79 mm 120 mm 158 mm 71.5 mm
BVG4-2L 50 mm 2" 70 mm 86 mm 140 mm 158 mm 86.0 mm

Parker Fluid System Connectors Division

Parker Fluid System Connectors Division delivers quality and service from design to delivery. Their engineers leverage advanced technology to create prototypes, refine designs, and improve manufacturing efficiencies, offering tailored solutions. ISO 9001 certified and focused on sustainability, they utilize recyclable materials and a brass chip recycling program to protect the environment and control costs. Flexible assembly, packaging, and shipping systems support diverse needs, including kitting and custom labeling, ensuring high-quality products and outstanding customer support.
