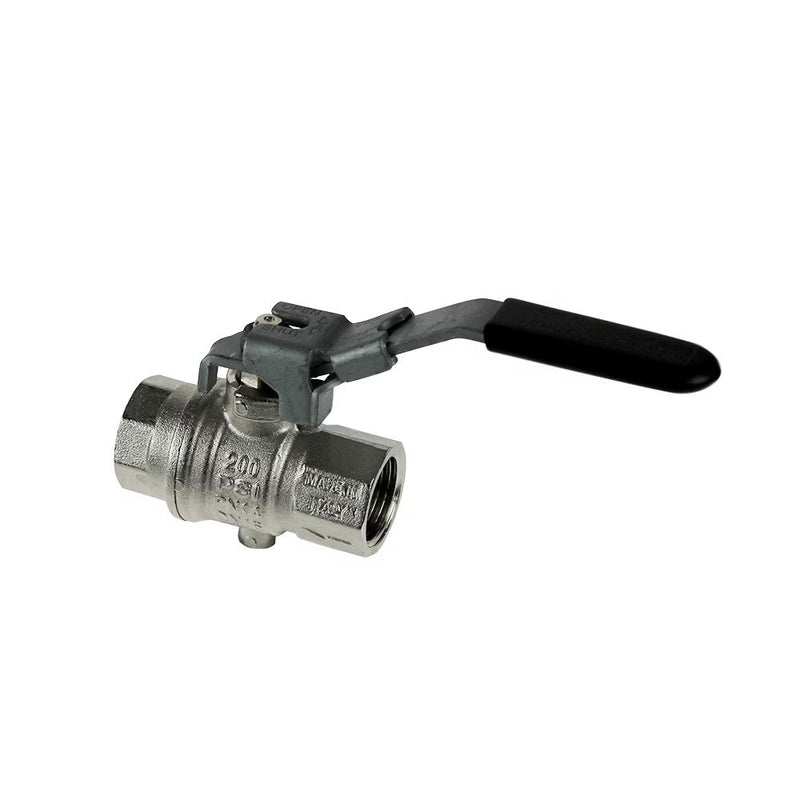

BVG4P-1/2LOCK by Parker | Ball Valve | 1/2" Female BSPP Thread w/ Venting and Locking Handle | Straight | Nickel-Plated Brass | Pack of 8

Save $257.92

$644.80

$644.80 - $644.80

$644.80

$386.88

$386.88 - $386.88

$386.88

by Parker Hannifin
Ball Valves Series BVGLOCK:BVG4PLOCK BSPP Female/Female, Vented, Locking Handle

Package Quantity: 8 Units

Specifications for Variant SKU: BVG4P-1/2LOCK Parker \| 8 \|
Series:	BVG4PLOCK Series
Shape (Orientation):	Straight
Material(s):	Nickel-Plated Brass, Chrome-Plated Brass, Carbon Steel
Seal Material(s):	PTFE
Special Properties:	Valved

Product Features:	Nickel plated brass body Chrome plated brass ball PTFE seats/seals PTFE packing gland Carbon steel handle
Specification:	Meets the requirements of European directive DI 89/392/CEE relating to the isolation of power supply and to meet the health and safety requirements for machines and materials in paragraphs L233-5 of the code DU Travail.


Part Number	Flow Ø (D)	Thread BSPP	C	G	H	I	L	L1	N
BVG4P-1/4LOCK	8.0 mm	1/4"	20 mm	22.5 mm	47.5 mm	12.0 mm	45 mm	96 mm	M5
BVG4P-3/8LOCK	9.5 mm	3/8"	20 mm	22.5 mm	47.5 mm	12.0 mm	45 mm	96 mm	M5
BVG4P-1/2LOCK	15.0 mm	1/2"	25 mm	29.5 mm	52.0 mm	15.5 mm	59 mm	96 mm	M5
BVG4P-3/4LOCK	19.0 mm	3/4"	31 mm	32.0 mm	59.5 mm	17.0 mm	64 mm	117 mm	M5
BVG4P-1LOCK	24.0 mm	1"	40 mm	40.5 mm	63.5 mm	21.0 mm	81 mm	117 mm	M5
BVG4P-1.1/4LOCK	32.0 mm	1-1/4"	49 mm	46.5 mm	76.5 mm	23.0 mm	93 mm	158 mm	G1/4"
BVG4P-1.1/2LOCK	40.0 mm	1-1/2"	54 mm	51.0 mm	82.5 mm	23.0 mm	102 mm	158 mm	G1/4"
BVG4P-2LOCK	50.0 mm	2"	69 mm	60.5 mm	89.5 mm	26.5 mm	121 mm	158 mm	G1/4"
