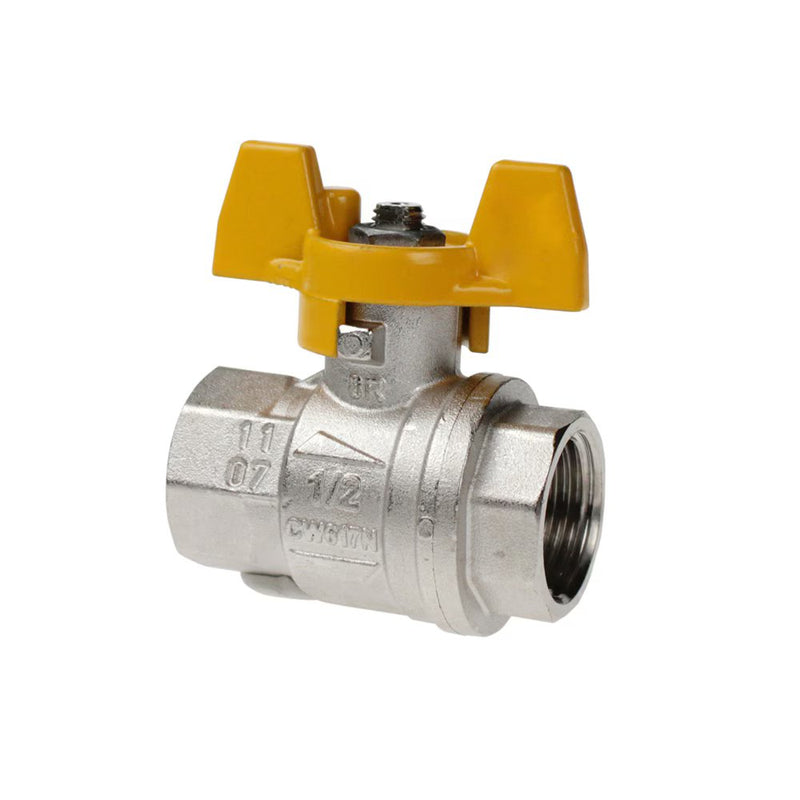

BVGT4-1/4L by Parker | Ball Valves | 1/4" Female BSPP Thread w/ Compact Handle | Straight | Nickel-Plated Brass | Pack of 12

Save $176.93

$1,016.61

$1,016.61 - $1,016.61

$1,016.61

$839.68

$839.68 - $839.68

$839.68

by Parker Hannifin
Ball Valve Series BVGL:BVGTL BSPP Female/Female Valve with Compact Handle

Package Quantity: 12 Units

Specifications for Variant SKU: BVGT4-1/4L Parker \| 12 \|
Series:	BVGTL Series
Shape (Orientation):	Straight
Material(s):	Nickel-Plated Brass, Chrome-Plated Brass
Seal Material(s):	PTFE
Special Properties:	Valved

Product Features:	Nickel plated brass body Chrome plated brass ball PTFE seats/seals Fluorocarbon stem seal
Specification:	Female threads manufactured in accordance to DIN 2999/ISO 228


Part Number	DN (mm)	Thread BSPP	C	H	L	L1	O
BVGT4-1/4L	8 mm	1/4"	20 mm	39 mm	50 mm	82 mm	25.0 mm
BVGT4-3/8L	10 mm	3/8"	20 mm	39 mm	60 mm	82 mm	25.0 mm
BVGT4-1/2L	15 mm	1/2"	25 mm	43 mm	75 mm	50 mm	32.5 mm
BVGT4-3/4L	20 mm	3/4"	32 mm	51 mm	80 mm	60 mm	39.0 mm
BVGT4-1L	25 mm	1"	41 mm	51 mm	90 mm	60 mm	47.5 mm

Parker Fluid System Connectors Division

Parker Fluid System Connectors Division delivers quality and service from design to delivery. Their engineers leverage advanced technology to create prototypes, refine designs, and improve manufacturing efficiencies, offering tailored solutions. ISO 9001 certified and focused on sustainability, they utilize recyclable materials and a brass chip recycling program to protect the environment and control costs. Flexible assembly, packaging, and shipping systems support diverse needs, including kitting and custom labeling, ensuring high-quality products and outstanding customer support.
