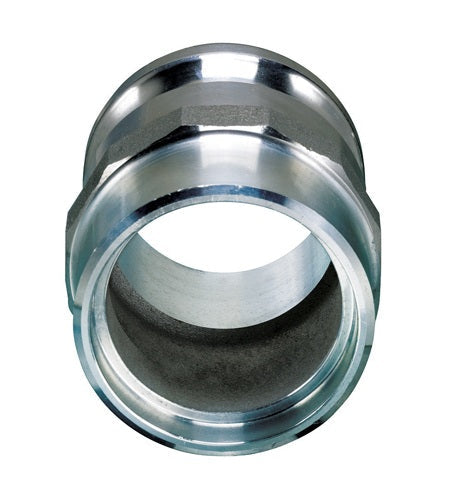

BW-ALF300 by Kuriyama | BW-ALF Series | Part F | Cam & Groove Adapter | 3" Adapter x 3" Butt Weld End | Aluminum

BW-ALF300 by Kuriyama | BW-ALF Series | Part F | Cam & Groove Adapter | 3" Adapter x 3" Butt Weld End | Aluminum

Save $10.22 Save $10.22
$30.36
$30.36 - $30.36
$30.36
$20.14
$20.14 - $20.14
$20.14

Kuriyama of America Inc.
Cam & Groove (Camlock) Adapter | BW-ALF Series | Part F | Adapter x Butt Weld End | Aluminum

Kuriyama Camlock Couplings are intended for use in many industrial applications.

High quality design made to withstand rigorous applications found in industrial markets.
Specifications for Variant SKU: BW-ALF300 Kuriyama
Series: BW-ALF Series
Shape (Orientation): Straight
Cam Type: Type F
Ends Configuration: 3in Male Cam & Groove, 3in Weld End
Material(s): Aluminum

What are the Applications?

  • Kuriyama Camlock Couplings are intended for use in many industrial applications.
  • Ideal for agriculture, industrial, petroleum, construction, and irrigation.

What are the Features?

  • High quality design made to withstand rigorous applications found in industrial markets.
  • Aluminum alloy specially designed for high tensile strength and impact resistance.
  • BW items are dual purpose which allows them be used as butt weld fittings to schedule 40 pipe and socket weld fittings for nominal OD tubing.

What are the Materials?

  • ASTM aluminum alloy.
  • Complies with Mil-Spec A-A-59326 for interchangeability in relevant sizes.
Part Number Size
(in)		 PSI Rating
at 70°F		 ASTM Specification Weight
Each
(lbs)
BW-ALF150 1-1/2" 250 PSI B26 Grade 713 0.52 lbs
BW-ALF200 2" 250 PSI B26 Grade 713 0.74 lbs
BW-ALF250 2-1/2" 150 PSI B26 Grade 713 1.02 lbs
BW-ALF300 3" 150 PSI B26 Grade 713 1.36 lbs
BW-ALF400 4" 150 PSI B26 Grade 713 2.40 lbs
BW-ALF500 5" 75 PSI B26 Grade 713 3.03 lbs
BW-ALF600 6" 75 PSI B26 Grade 713 4.01 lbs
BW-ALF800 8" 50 PSI B26 Grade 713 8.05 lbs

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
