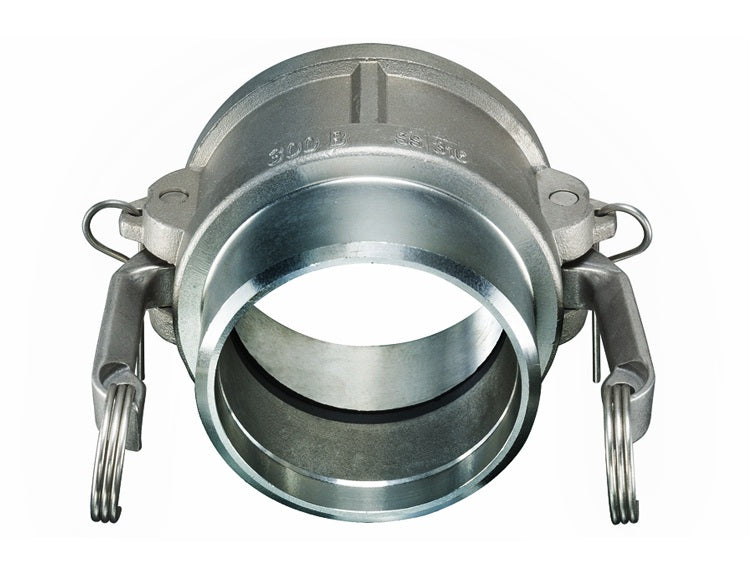

BW-SSB150 by Kuriyama | BW-SSB Series | Part B | Cam & Groove Adapter | 1-1/2" Coupler x 1-1/2" Butt Weld End | 316 Stainless Steel

BW-SSB150 by Kuriyama | BW-SSB Series | Part B | Cam & Groove Adapter | 1-1/2" Coupler x 1-1/2" Butt Weld End | 316 Stainless Steel

Save $12.79 Save $12.79
$52.04
$52.04 - $52.04
$52.04
$39.25
$39.25 - $39.25
$39.25

Kuriyama of America Inc.
Cam & Groove (Camlock) Adapter | BW-SSB Series | Part B | Coupler x Butt Weld End | 316 Stainless Steel

Kuriyama Camlock Couplings are intended for use in many industrial applications.

High quality design made to withstand rigorous applications found in industrial markets.
Specifications for Variant SKU: BW-SSB150 Kuriyama
Series: BW-SSB Series
Shape (Orientation): Straight
Cam Type: Type B
Ends Configuration: 1-1/2in Female Cam & Groove, 1-1/2in Weld End
Material(s): 316 Stainless Steel
Seal Material(s): Buna-N/Nitrile Rubber

What are the Applications?

  • Kuriyama Camlock Couplings are intended for use in many industrial applications.
  • Stainless steel is widely used for manufacturing fittings due to its strength, corrosion resistance, and ability to withstand extreme temperatures.
  • An ideal option for food and beverage applications, which entail frequent, high temperature sanitation protocols.
  • The durability and corrosion resistance also lend themselves to marine, oil and gas, and similarly demanding environments.

What are the Features?

  • High quality design made to withstand rigorous applications found in industrial markets.
  • Stainless steel alloy is analyzed on every melt, and specially designed for high tensile strength, rigidity, and impact resistance.
  • BW items are dual purpose which allows them be used as butt weld fittings to schedule 40 pipe and socket weld fittings for nominal OD tubing.

What are the Materials?

  • ASTM stainless steel alloy.
  • Complies with Mil-Spec A-A-59326 for interchangeability in relevant sizes.
  • 304 stainless steel handles, handle pins, pull rings, and safety clips.
  • Buna-N gasket included.
Part Number Size
(in)		 PSI Rating
at 70°F		 ASTM Specification Weight
Each
(lbs)
BW-SSB150 1-1/2" 250 PSI A666/316 1.27 lbs
BW-SSB200 2" 250 PSI A666/316 1.57 lbs
BW-SSB250 2-1/2" 150 PSI A666/316 2.13 lbs
BW-SSB300 3" 150 PSI A666/316 3.21 lbs
BW-SSB400 4" 150 PSI A666/316 5.72 lbs
BW-SSB500 5" 75 PSI A666/316 6.71 lbs
BW-SSB600 6" 75 PSI A666/316 9.31 lbs

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
