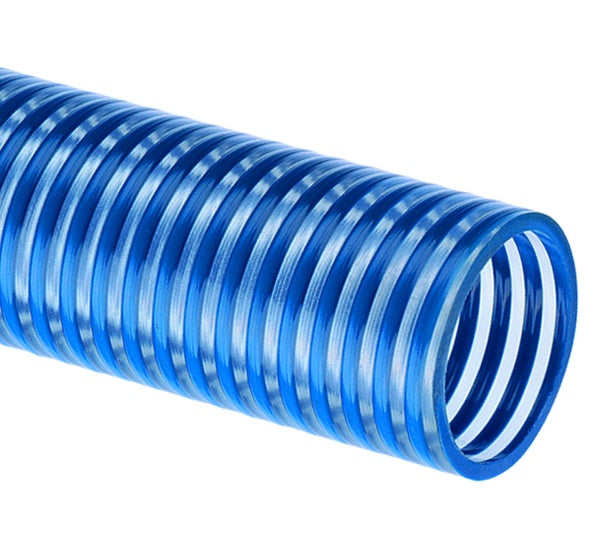

BW600X100 Tigerflex® Blue Water™ by Kuriyama | BW™ Series | Low Temperature Liquid Suction Hose | PVC | 6" ID | 6.69" OD | 100ft Length

BW600X100 Tigerflex® Blue Water™ by Kuriyama | BW™ Series | Low Temperature Liquid Suction Hose | PVC | 6" ID | 6.69" OD | 100ft Length

$0.00 - $0.00
$0.00
$2,025.00
$2,025.00 - $2,025.00
$2,025.00
p>Kuriyama of America Inc.
Tigerflex® | Blue Water™ BW™ Series | Low Temperature Liquid Suction Hose | PVC

Designed for extreme cold environments.

Ideal for construction and rental dewatering pumps, trash pumps, and standard-duty water suction applications.

Made in the USA.


Package Quantity: 100 Foot

Specifications for Variant SKU: BW600X100 Kuriyama | 100 |
Brand: Blue Water, Tigerflex
Series: BW Series
Hose Color(s): Blue
Internal Diameter: 6in
Outer Diameter: 6.69in
Tubing Construction: PVC
Applicable Specs & Approvals: RoHS Compliant
Extreme-Cold PVC Suction Hose

Kuriyama Tigerflex Blue Water™

Cold-flexible PVC suction hose designed for dewatering, trash-pump service and standard-duty water suction in extreme cold conditions.

✓

Cold-Flex Materials

Remains flexible in sub-zero temperatures

◎

See-the-Flow

Transparent construction allows visual confirmation of material flow

☰

Cover Options

Smooth or convoluted design depending on size

★

Made in USA

Manufactured in the United States

1

What is this product used for?
  • Extreme cold conditions
  • Rental and construction dewatering pumps
  • Trash pumps
  • Standard-duty water suction
2

What are the key specifications?
Tube

PVC

Reinforcement

Rigid PVC helix

Cover

Smooth or convoluted, depending on size

Temperature Range

-40°F (-40°C) to +150°F (+65°C)

Compliance

Phthalate free and RoHS

Country of Origin

Made in the USA

3

What are the main product features?
  • Cold-Flex Materials — Blue Water hose remains flexible in sub-zero temperatures and extreme cold conditions.
  • Transparent Construction — “See-the-flow” design allows visual confirmation of material flow.
  • Smooth Outer Cover on 1-Inch Through 4-Inch Sizes — Provides an increased pressure rating and a smooth surface for banding.
  • Convoluted Outer Cover on 5-Inch and 6-Inch Sizes — Provides increased hose flexibility.
  • Made in the USA — Manufactured in the United States.
4

Which sizes and lengths are available?
Part Number Inside Diameter Outside Diameter Working Pressure Vacuum Rating Minimum Bending Radius Length Weight
in mm in mm at 68°F at 104°F at 68°F at 104°F at 68°F ft lbs/ft
BW075X100 3/4" 19.1 1.01" 25.6 115 PSI 75 PSI Full 28 in Hg 3" 100 0.19
BW075X200 3/4" 19.1 1.01" 25.6 115 PSI 75 PSI Full 28 in Hg 3" 200 0.19
BW100X100 1" 25.4 1.26" 32.0 90 PSI 65 PSI Full 28 in Hg 3" 100 0.22
BW100X200 1" 25.4 1.26" 32.0 90 PSI 65 PSI Full 28 in Hg 3" 200 0.22
BW125X100 1-1/4" 31.8 1.56" 39.6 90 PSI 65 PSI Full 26 in Hg 4" 100 0.36
BW150X100 1-1/2" 38.1 1.79" 45.5 90 PSI 65 PSI Full 26 in Hg 5" 100 0.48
BW200X100 2" 50.8 2.35" 59.8 90 PSI 65 PSI Full 26 in Hg 7" 100 0.62
BW250X100 2-1/2" 63.5 2.87" 73.0 70 PSI 48 PSI Full 26 in Hg 8" 100 0.87
BW300X100 3" 76.2 3.43" 87.0 65 PSI 45 PSI Full 26 in Hg 10" 100 1.23
BW400X100 4" 101.6 4.49" 114.0 55 PSI 40 PSI Full 26 in Hg 15" 100 1.83
BW500X100 5" 127.0 5.57" 141.5 45 PSI 30 PSI 28 in Hg 24 in Hg 25" 100 2.42
BW600X100 6" 152.4 6.69" 170.0 40 PSI 25 PSI 28 in Hg 22 in Hg 30" 100 3.36
5

Where can I find product documents?
PDF

Kuriyama Tigerflex Hose Specifications Guide

Review the manufacturer specifications guide for additional compliance, construction and application information.

i
The actual service temperature range and product service life may vary depending on the application, operating conditions and material being conveyed.

How is this product sold?

Available in 100-foot lengths, with 200-foot lengths available for select sizes.

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
