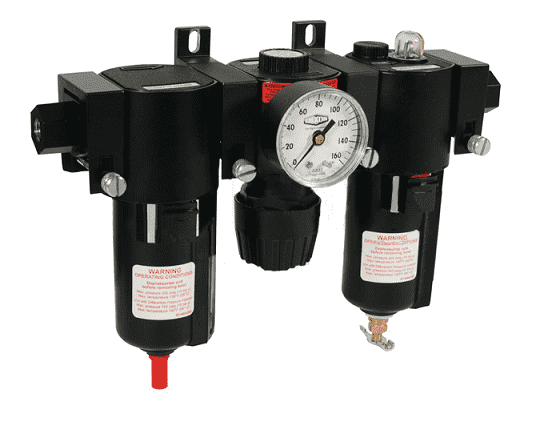

C16-03AMB Dixon Wilkerson 3/8" Compact Combination Unit with Metal Bowl with Sight Glass - Automatic Drain - 58.5 SCFM

C16-03AMB Dixon Valve Wilkerson 3/8" Compact Combination Unit with Metal Bowl with Sight Glass - Automatic Drain - 58.5 SCFM

$0.00 - $0.00
$0.00
$0.00
$0.00 - $0.00
$0.00

Wilkerson Compact Combination Units On hose assemblies, pressure rating is the lower of either the rating of the coupling or the hose at 70 deg. F.
Specifications for Variant SKU: C16-03AMB Dixon
Features:
  • Filter series F16:
    • 5 micron element.
    • 5 oz. bowl.
  • Regulator series R16:
    • 0-125 PSI adjusting range.
    • Self-relieving.
    • Supplied with a GC230 gauge.
  • Lubricator series L16:
    • 5 oz. bowl.
    • Adjustable oil feed.
    • Full view sight dome.
  • Included components:
    • (2) Modular sleeves.
    • (2) Mounting brackets (sleeve and bracket).
    • (2) End blocks.
Part Number Size SCFM Drain Type PSI Min/Max Temp Weight (Lbs.)
With Transparent Bowl and Guard
C16-02A 1/4" 36.1 Automatic Drain 150 (10.20 bar) 32 deg. F/ 125 deg. F (0.00 deg. C / 51.67 deg. C) 6.7400
C16-03A 3/8" 58.5 Automatic Drain 150 (10.20 bar) 32 deg. F/ 125 deg. F (0.00 deg. C / 51.67 deg. C) 6.5980
C16-04A 1/2" 64.0 Automatic Drain 150 (10.20 bar) 32 deg. F/ 125 deg. F (0.00 deg. C / 51.67 deg. C) 6.3000
C16-02M 1/4" 36.1 Manual Drain 150 (10.20 bar) 32 deg. F/ 125 deg. F (0.00 deg. C / 51.67 deg. C) 6.6900
C16-03M 3/8" 58.5 Manual Drain 150 (10.20 bar) 32 deg. F/ 125 deg. F (0.00 deg. C / 51.67 deg. C) 6.5480
C16-04M 1/2" 64.0 Manual Drain 150 (10.20 bar) 32 deg. F/ 125 deg. F (0.00 deg. C / 51.67 deg. C) 6.2500
With Metal Bowl with Sight Glass
C16-02AMB 1/4" 36.1 Automatic Drain 200 (13.61 bar) 32 deg. F/ 175 deg. F (0.00 deg. C / 79.44 deg. C) 7.8650
C16-03AMB 3/8" 58.5 Automatic Drain 200 (13.61 bar) 32 deg. F/ 175 deg. F (0.00 deg. C / 79.44 deg. C) 7.5530
C16-04AMB 1/2" 64.0 Automatic Drain 200 (13.61 bar) 32 deg. F/ 175 deg. F (0.00 deg. C / 79.44 deg. C) 7.3135
C16-02MMB 1/4" 36.1 Manual Drain 200 (13.61 bar) 32 deg. F/ 175 deg. F (0.00 deg. C / 79.44 deg. C) 5.7500
C16-03MMB 3/8" 58.5 Manual Drain 200 (13.61 bar) 32 deg. F/ 175 deg. F (0.00 deg. C / 79.44 deg. C) 7.6280
C16-04MMB 1/2" 64.0 Manual Drain 200 (13.61 bar) 32 deg. F/ 175 deg. F (0.00 deg. C / 79.44 deg. C) 7.5400

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
