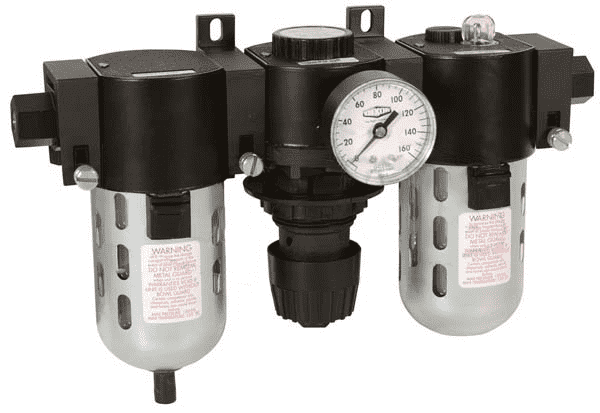

C26-02A Dixon Wilkerson 1/4" Standard Combination Unit with Transparent Bowl and Guard - Automatic Drain - 35 SCFM

C26-02A Dixon Valve Wilkerson 1/4" Standard Combination Unit with Transparent Bowl and Guard - Automatic Drain - 35 SCFM

$0.00 - $0.00
$0.00
$0.00
$0.00 - $0.00
$0.00

Wilkerson Standard Combination Units On hose assemblies, pressure rating is the lower of either the rating of the coupling or the hose at 70 deg. F.
Specifications for Variant SKU: C26-02A Dixon
Features:
  • Filter series F26:
    • 5 micron element.
    • 10 oz. bowl.
  • Regulator series R26:
    • 0-125 PSI adjusting range.
    • Self-relieving.
    • Supplied with a GC230 gauge.
  • Lubricator series L26:
    • 10 oz. bowl.
    • Adjustable oil feed.
    • Full view sight dome.
  • Included components:
    • (2) Modular sleeves
    • (2) Mounting brackets. (sleeve and bracket)
    • (2) End blocks.
Part Number Size SCFM Drain Type PSI Min/Max Temp Weight (Lbs.)
With Transparent Bowl and Guard
C26-02A 1/4" 35 Automatic Drain 150 (10.20 bar) 32 deg. F/ 125 deg. F (0.00 deg. C / 51.67 deg. C) 8.6735
C26-03A 3/8" 60 Automatic Drain 150 (10.20 bar) 32 deg. F/ 125 deg. F (0.00 deg. C / 51.67 deg. C) 8.6780
C26-04A 1/2" 128 Automatic Drain 150 (10.20 bar) 32 deg. F/ 125 deg. F (0.00 deg. C / 51.67 deg. C) 8.4300
C26-02M 1/4" 35 Manual Drain 150 (10.20 bar) 32 deg. F/ 125 deg. F (0.00 deg. C / 51.67 deg. C) 8.6735
C26-03M 3/8" 60 Manual Drain 150 (10.20 bar) 32 deg. F/ 125 deg. F (0.00 deg. C / 51.67 deg. C) 8.6280
C26-04M 1/2" 128 Manual Drain 150 (10.20 bar) 32 deg. F/ 125 deg. F (0.00 deg. C / 51.67 deg. C) 8.3800
With Metal Bowl
C26-02AMB 1/4" 35 Automatic Drain 200 (13.61 bar) 32 deg. F/ 175 deg. F (0.00 deg. C / 79.44 deg. C) 10.1540
C26-03AMB 3/8" 60 Automatic Drain 200 (13.61 bar) 32 deg. F/ 175 deg. F (0.00 deg. C / 79.44 deg. C) 9.3690
C26-04AMB 1/2" 128 Automatic Drain 200 (13.61 bar) 32 deg. F/ 175 deg. F (0.00 deg. C / 79.44 deg. C) 9.7200
C26-02MMB 1/4" 35 Manual Drain 200 (13.61 bar) 32 deg. F/ 175 deg. F (0.00 deg. C / 79.44 deg. C) 9.8390
C26-03MMB 3/8" 60 Manual Drain 200 (13.61 bar) 32 deg. F/ 175 deg. F (0.00 deg. C / 79.44 deg. C) 8.9470
C26-04MMB 1/2" 128 Manual Drain 200 (13.61 bar) 32 deg. F/ 175 deg. F (0.00 deg. C / 79.44 deg. C) 9.7500

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
