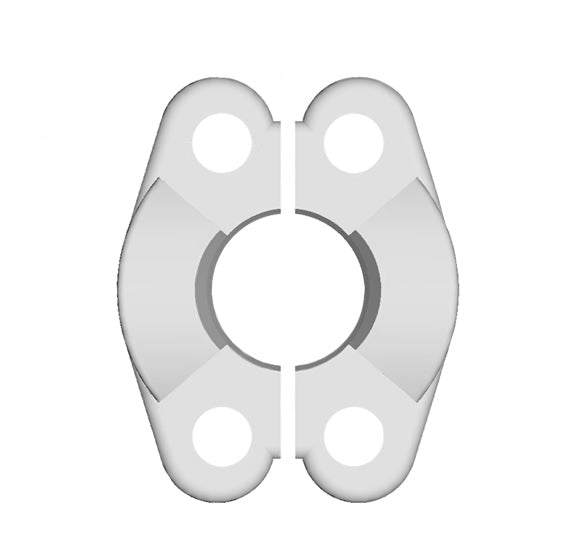

C61SF-20 Alfagomma by Kuriyama | C61SF Series | Two-Piece Hydraulic Hose Fitting | Split Flange Clamps (2 Halves) | SAE J518 | 3000 PSI | -20 Code 61 | Steel

Save $5.01

$17.54

$17.54 - $17.54

$17.54

$12.53

$12.53 - $12.53

$12.53

Note: Bolts, washers and o-ring are not included.

Specifications for Variant SKU: C61SF-20 Kuriyama
Brand:	Alfagomma
Series:	A Series, C61SF Series
Material(s):	Steel
Compatible with the following Series:	PF354 Series \| PF354NC Series \| PFP354 Series \| PFP354NC Series \| PF267 Series \| PF267NC Series \| PF528 Series \| PF528NC Series \| PF427 Series \| PF427NC Series \| PF354TL Series \| PF354NCTL Series \| PF267TL Series \| PF267NCTL Series \| PF528TL Series \| PF528NCTL Series \| PF321TC Series \| PF344LMT Series

About A Series Fittings:
Two-piece insert for: All wire and textile braided hoses. Thermoplastic hose. Flexor 4 and PTFE hose 3/16" thru 2". Alfabiotech 3000 1-1/4" and 1-1/2". Alfabiotech 4000 3/8" thru 1-1/4". Some smaller ID spiral wire reinforced hoses.
Features:
Alfagomma Top Coat Tested in accordance with ASTM B117-03 and UNI ISO 9227 standards. Over 500 hours corrosion prevention in salt spray fog to white rust. More than 1000 hours corrosion resistance to red rust.


Steel Part Number	Flange Size	H	K	Max. Working Pressure	Weight
Steel Part Number	(in.)	(mm)	(mm)	PSI	lbs/each
C61SF-08	1/2"	8.7mm	38.1mm	3000 PSI	0.22 lbs
C61SF-12	3/4"	11.1mm	47.6mm	3000 PSI	0.38 lbs
C61SF-16	1"	13.1mm	52.4mm	3000 PSI	0.50 lbs
C61SF-20	1-1/4"	15.1mm	58.7mm	3000 PSI	0.67 lbs
C61SF-24	1-1/2"	17.9mm	69.9mm	3000 PSI	1.01 lbs
C61SF-32	2"	21.4mm	77.8mm	3000 PSI	1.18 lbs
C61SF-40	2-1/2"	25.5mm	89.0mm	2500 PSI	1.89 lbs

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
