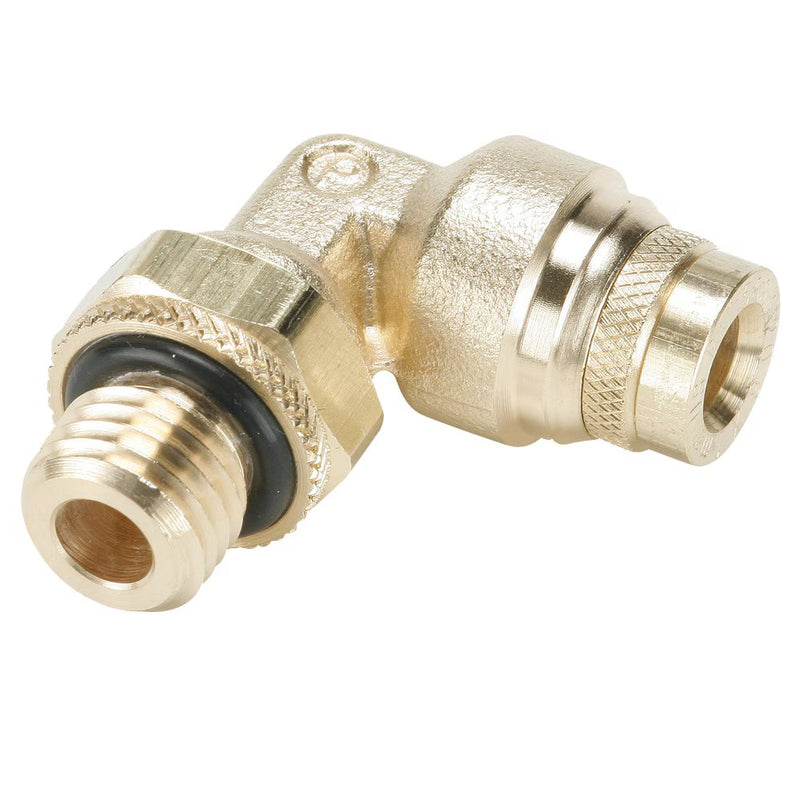

C8UPMTB6-M16 by Parker | Threaded Fitting | 6 mm Push-to-Connect x M16 Male Metric Thread | 24 mm Hex | 90° Elbow | Brass | Pack of 10

C8UPMTB6-M16 by Parker | Threaded Fitting | 6mm Push-to-Connect x M16X1.5 Male Metric Thread | 24mm Hex | 90° Elbow | Brass | Pack of 10

Save $351.65

$879.12

$879.12 - $879.12

$879.12

$527.47

$527.47 - $527.47

$527.47

by Parker Hannifin
Metric Prestomatic Fittings:Male Elbow Metric Straight Thread C8UPMTB

Package Quantity: 10 Units

Specifications for Variant SKU: C8UPMTB6-M16 Parker \| 10 \|
Brand:	Prestomatic
Series:	C8UPMTB Series
Shape (Orientation):	90° Elbow
Material(s):	Brass, Stainless Steel
Seal Material(s):	Buna-N/Nitrile Rubber

Product Features:	Brass Collet Buna N O-ring Stainless Steel Tube Support Meets D.O.T. FMVSS571.106 Meets DIN 74324
Markets:	Heavy Duty Truck Trailer Mobile
Applications:	Air Brakes Air Tanks Air Ride Sliders Tire Inflation Primary & Secondary Air Lines
Specification:
Pressure Range:	Up to 250 PSI (17.2 bar)
Temperature Range:	-40° to +200° F (-40° to +93.3° C)
Compatible Tubing:	DIN 73378 Virgin Nylon SAE J844 Type A & B nylon tubing


Part Number	Tube Size	Metric Thread (B)	Wrench Flats	Hex	L	N	N1
C8UPMTB6-M12	6 mm	M12X1.5	10 mm	17 mm	24.8 mm	28.2 mm	9.5 mm
C8UPMTB6-M16	6 mm	M16X1.5	11 mm	24 mm	25.0 mm	34.0 mm	10.5 mm
