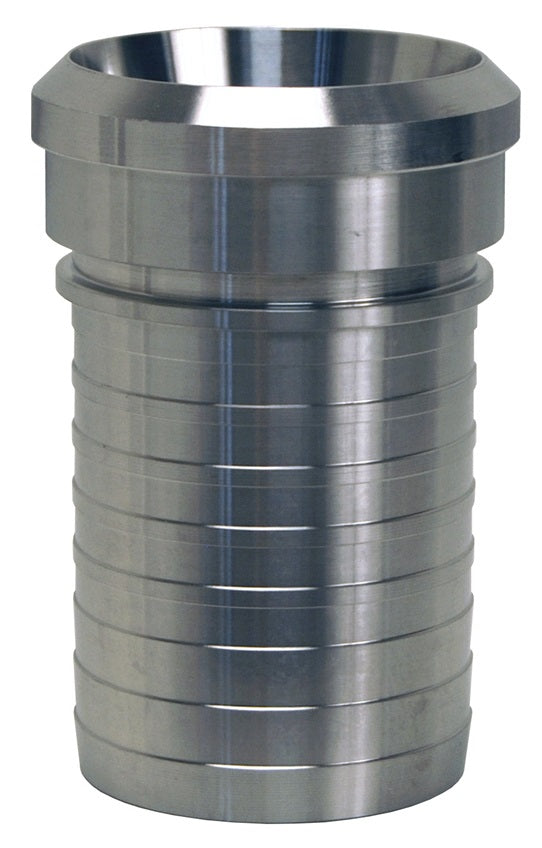

CBSR100 by Dixon Valve | Sanitary Crimp Stem | 1" Bevel Seat End x 1" Hose ID | 316 Stainless Steel

CBSR100 by Dixon Valve | Sanitary Crimp Stem | 1" Bevel Seat End x 1" Hose ID | 316 Stainless Steel

Save $4.89 Save $4.89
$44.04
$44.04 - $44.04
$44.04
$39.15
$39.15 - $39.15
$39.15

Dixon Valve
Sanitary Crimp Stem | Bevel Seat End x Hose Barb

Recommended for food, dairy and pharmaceutical applications where increased flow capacity is important.
Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for Variant SKU: CBSR100 Dixon
Shape (Orientation): Straight
Ends Configuration: 1in Plain Bevel Seat, 1in Hose Barb
Material(s): 316 Stainless Steel
Safety Notes:
  • Dixon sanitary crimp stems are only to be used with Dixon sanitary stainless steel crimp ferrules.
  • Holedall couplings, regardless of coupling style, are never to be used for steam service at any pressure.
  • Holedall fittings are not to be used with cable reinforced high-pressure hose, 4 or 6 braid wire hydraulic hose or any other service not listed in the recommendations. Consult Dixon for recommendations on usage.
  • Hose service working pressure (including surges and spikes) is never to exceed the maximum recommended working pressure for the fitting. The assembly's (hose + coupling) maximum working pressure is the lesser of the hose rated working pressure or the coupling rated working pressure.
  • Media being transported through the hose should be compatible with the stem material. Compatibility of ferrule material with the environment in which it will be used is recommended.
316 Stainless Steel
Part		 Size Nut Used
CBSR100 1" 13H-G100
CBSR150 1-1/2" IXAN24
CBSR200 2" IXAN32
CBSR300 3" IXAN300
