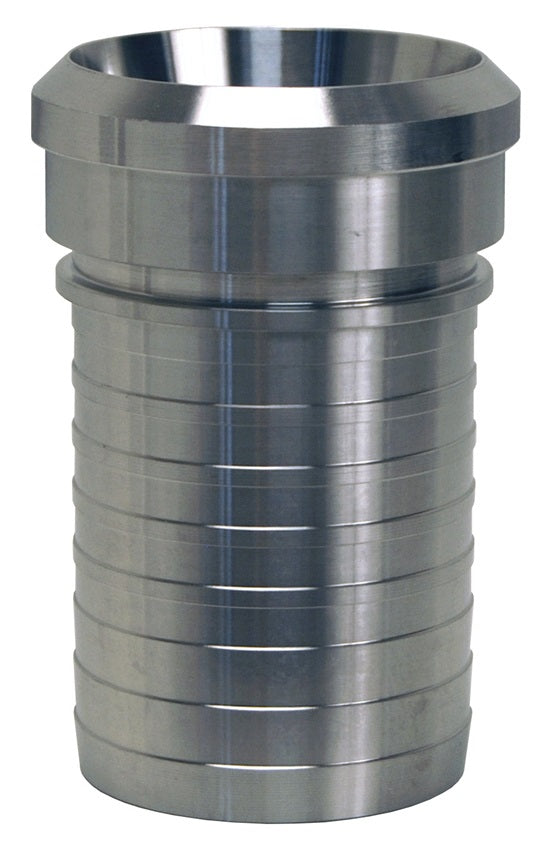

CBSR150 by Dixon Valve | Sanitary Crimp Stem | 1-1/2" Bevel Seat End x 1-1/2" Hose ID | 316 Stainless Steel

CBSR150 by Dixon Valve | Sanitary Crimp Stem | 1-1/2" Bevel Seat End x 1-1/2" Hose ID | 316 Stainless Steel

Save $7.74 Save $7.74
$69.66
$69.66 - $69.66
$69.66
$61.92
$61.92 - $61.92
$61.92

Dixon Valve
Sanitary Crimp Stem | Bevel Seat End x Hose Barb

Recommended for food, dairy and pharmaceutical applications where increased flow capacity is important.
Specifications for Variant SKU: CBSR150 Dixon
Shape (Orientation): Straight
Ends Configuration: 1-1/2in Plain Bevel Seat, 1-1/2in Hose Barb
Material(s): 316 Stainless Steel
Safety Notes:
  • Dixon sanitary crimp stems are only to be used with Dixon sanitary stainless steel crimp ferrules.
  • Holedall couplings, regardless of coupling style, are never to be used for steam service at any pressure.
  • Holedall fittings are not to be used with cable reinforced high-pressure hose, 4 or 6 braid wire hydraulic hose or any other service not listed in the recommendations. Consult Dixon for recommendations on usage.
  • Hose service working pressure (including surges and spikes) is never to exceed the maximum recommended working pressure for the fitting. The assembly's (hose + coupling) maximum working pressure is the lesser of the hose rated working pressure or the coupling rated working pressure.
  • Media being transported through the hose should be compatible with the stem material. Compatibility of ferrule material with the environment in which it will be used is recommended.
316 Stainless Steel
Part		 Size Nut Used
CBSR100 1" 13H-G100
CBSR150 1-1/2" IXAN24
CBSR200 2" IXAN32
CBSR300 3" IXAN300
