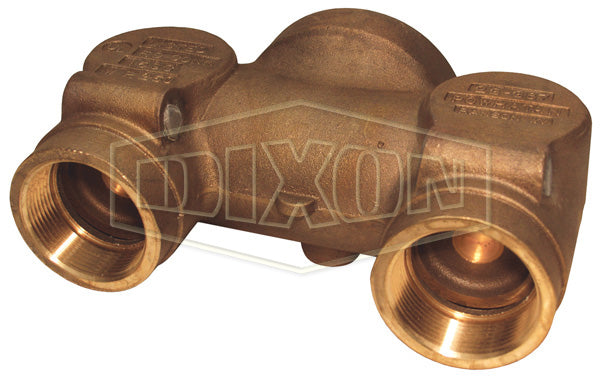

CDMHCB40225 Dixon Brass Concealed Two Way Wall Hydrant Body - Back Outlet - 4" Female NPT Outlet x Two 2-1/2" Female NPT Inlets

CDMHCB40225 Dixon Brass Concealed Two Way Wall Hydrant Body - Back Outlet - 4" Female NPT Outlet x Two 2-1/2" Female NPT Inlets

Save $48.16 Save $48.16
$699.12
$699.12 - $699.12
$699.12
$650.96
$650.96 - $650.96
$650.96

Dixon Fire Fittings
Concealed Two Way Wall Hydrant Body

Concealed clappered body fire department connection to supplement the fire protection water supply.

UL listed.
Specifications for Variant SKU: CDMHCB40225 Dixon
Shape (Orientation): Straight
Ends Configuration: 4in Female NPT, 2-1/2in Female NPT
Material(s): Brass
Features:
  • Provides 500 GPM minimums at 250 GPM per inlet (ref NFPA 14).
  • Drop clappers provide unobstructed waterway.
  • Flush design is desirable when appearance is a factor.
  • Double clapper.
  • 7-5/8" center-line.
  • Bodies require wall plate WP2 (24-385).
Back Outlet
Part Number Outlet (Two) Inlets Dimensions Weight
(Lbs.)
A B C
CDMHCB40225 4" Female NPT 2-1/2" Female NPT 11-1/8" 6" 7-5/8" 19.0000
CDMHCB40230 4" Female NPT 3" Female NPT 12-1/4" 8-1/8" 7-5/8" 22.0000
CDMHCB60225 6" Female NPT 2-1/2" Female NPT 11-1/8" 7-3/8" 7-5/8" 20.0000
CDMHCB60230 6" Female NPT 3" Female NPT 12-1/4" 8-1/4" 7-5/8" 39.0000
Bottom Outlet
Part Number Outlet (Two) Inlets Dimensions Weight
(Lbs.)
A B C
90CDMHCB60230 6" Female NPT 3" Female NPT 12" 9-1/2" 7-5/8" 41.0000
