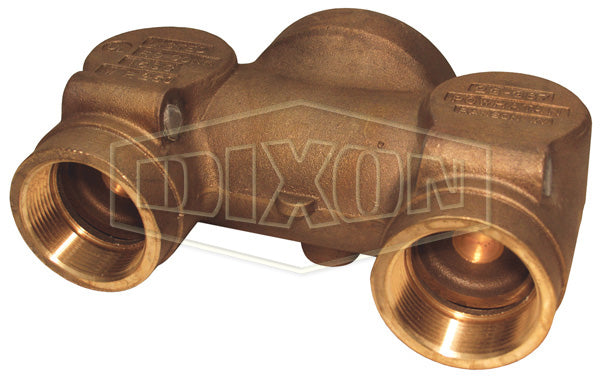

CDMHCB40230 Dixon Brass Concealed Two Way Wall Hydrant Body - Back Outlet - 4" Female NPT Outlet x Two 3" Female NPT Inlets

CDMHCB40230 Dixon Brass Concealed Two Way Wall Hydrant Body - Back Outlet - 4" Female NPT Outlet x Two 3" Female NPT Inlets

Save $67.96 Save $67.96
$828.69
$828.69 - $828.69
$828.69
$760.73
$760.73 - $760.73
$760.73

Dixon Fire Fittings
Concealed Two Way Wall Hydrant Body

Concealed clappered body fire department connection to supplement the fire protection water supply.

UL listed.
Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for Variant SKU: CDMHCB40230 Dixon
Shape (Orientation): Straight
Ends Configuration: 4in Female NPT, 3in Female NPT
Material(s): Brass
Features:
  • Provides 500 GPM minimums at 250 GPM per inlet (ref NFPA 14).
  • Drop clappers provide unobstructed waterway.
  • Flush design is desirable when appearance is a factor.
  • Double clapper.
  • 7-5/8" center-line.
  • Bodies require wall plate WP2 (24-385).
Back Outlet
Part Number Outlet (Two) Inlets Dimensions Weight
(Lbs.)
A B C
CDMHCB40225 4" Female NPT 2-1/2" Female NPT 11-1/8" 6" 7-5/8" 19.0000
CDMHCB40230 4" Female NPT 3" Female NPT 12-1/4" 8-1/8" 7-5/8" 22.0000
CDMHCB60225 6" Female NPT 2-1/2" Female NPT 11-1/8" 7-3/8" 7-5/8" 20.0000
CDMHCB60230 6" Female NPT 3" Female NPT 12-1/4" 8-1/4" 7-5/8" 39.0000
Bottom Outlet
Part Number Outlet (Two) Inlets Dimensions Weight
(Lbs.)
A B C
90CDMHCB60230 6" Female NPT 3" Female NPT 12" 9-1/2" 7-5/8" 41.0000
