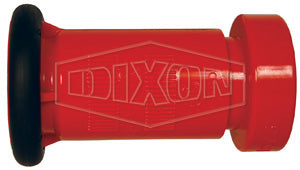

CFB100S Dixon Constant Standard Flow Fog Nozzle - 1" Female NPSH - Polycarbonate

CFB100S Dixon Constant Standard Flow Fog Nozzle - 1" Female NPSH - Polycarbonate

Save $14.43 Save $14.43
$36.07
$36.07 - $36.07
$36.07
$21.64
$21.64 - $21.64
$21.64

Dixon Fire Fittings
Fire Nozzle - Constant Flow Fog Nozzle - Polycarbonate

Provides consistent volume at any spray angle.

Adjusts from Straight Stream to Fog.
Specifications for Variant SKU: CFB100S Dixon
Shape (Orientation): Straight
Material(s): Polycarbonate
Features:
  • Red polycarbonate with bumper and black plastic and steel stem
  • 1" and 1-1/2" are ULC listed
  • Maximum operating pressure: 100 PSI (water only) at 70°F (21°C)
Code 1-1/2" Size 2-1/2" Size
NYF - New York Fire Dept. Thread 1-1/2" (2.100 ODM X 8 TPI) 2-1/2" (3.030 ODM X 8 TPI)
CF - Chicago Fire Dept. Thread 1-1/2" (1.933 ODM X 11.5 TPI) 2-1/2" (2.990 ODM X 7.5 TPI)
NYC - New York Corporation Thread 1-1/2" (2.093 ODM X 11 TPI) 2-1/2" (3.000 ODM X 8 TPI)
Part Number Size 90 deg. Spray
GPM @ 100 PSI		 Flow U/L Listed Weight
(Lbs.)
CFB75GHT 3/4" Female GHT 8 GPM - No 0.4150
CFB100S 1" Female NPSH 22 GPM - Yes 0.3820
CFB150S 1-1/2" Female NPSH 75 GPM Standard Yes 0.4400
HGCFB150S 1-1/2" Female NPSH 150 GPM High Yes 0.5400
CFB2015S 2" Female NPSH 75 GPM Standard No 0.4400
CFB200S 2" Female NPSH 150 GPM High No 0.5200
CFB100NST 1" Female NST(NH) 22 GPM - Yes 0.3500
CFB150NST 1-1/2" Female NST(NH) 75 GPM Standard Yes 0.4350
HGCFB150NST 1-1/2" Female NST(NH) 150 GPM High Yes 0.5200
CFB250NST* 2-1/2" Female NST(NH) 150 GPM - No 2.4300
HGCFB250NST 2-1/2" Female NST(NH) 215 GPM High No 1.4680
* provided with handles
