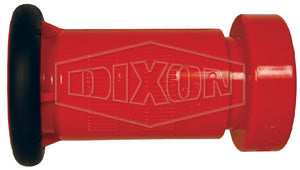

CFB200S Dixon Constant High Flow Fog Nozzle - 2" Female NPSH - Polycarbonate

Name: CFB200S Dixon Constant High Flow Fog Nozzle - 2" Female NPSH - Polycarbonate
Brand: Dixon
SKU: CFB200S Dixon
Price: 61.32 USD
Availability: InStock

Save $40.88

$102.20

$102.20 - $102.20

$102.20

$61.32

$61.32 - $61.32

$61.32

Dixon Fire Fittings
Fire Nozzle - Constant Flow Fog Nozzle - Polycarbonate

Provides consistent volume at any spray angle.

Adjusts from Straight Stream to Fog.

Specifications for Variant SKU: CFB200S Dixon
Shape (Orientation):	Straight
Material(s):	Polycarbonate

Features:
Red polycarbonate with bumper and black plastic and steel stem 1" and 1-1/2" are ULC listed Maximum operating pressure: 100 PSI (water only) at 70°F (21°C)

Code	1-1/2" Size	2-1/2" Size
NYF - New York Fire Dept. Thread	1-1/2" (2.100 ODM X 8 TPI)	2-1/2" (3.030 ODM X 8 TPI)
CF - Chicago Fire Dept. Thread	1-1/2" (1.933 ODM X 11.5 TPI)	2-1/2" (2.990 ODM X 7.5 TPI)
NYC - New York Corporation Thread	1-1/2" (2.093 ODM X 11 TPI)	2-1/2" (3.000 ODM X 8 TPI)

Part Number	Size	90 deg. Spray GPM @ 100 PSI	Flow	U/L Listed	Weight (Lbs.)
CFB75GHT	3/4" Female GHT	8 GPM	-	No	0.4150

CFB100S	1" Female NPSH	22 GPM	-	Yes	0.3820
CFB150S	1-1/2" Female NPSH	75 GPM	Standard	Yes	0.4400
HGCFB150S	1-1/2" Female NPSH	150 GPM	High	Yes	0.5400
CFB2015S	2" Female NPSH	75 GPM	Standard	No	0.4400
CFB200S	2" Female NPSH	150 GPM	High	No	0.5200

CFB100NST	1" Female NST(NH)	22 GPM	-	Yes	0.3500
CFB150NST	1-1/2" Female NST(NH)	75 GPM	Standard	Yes	0.4350
HGCFB150NST	1-1/2" Female NST(NH)	150 GPM	High	Yes	0.5200
CFB250NST*	2-1/2" Female NST(NH)	150 GPM	-	No	2.4300
HGCFB250NST	2-1/2" Female NST(NH)	215 GPM	High	No	1.4680

* provided with handles

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
