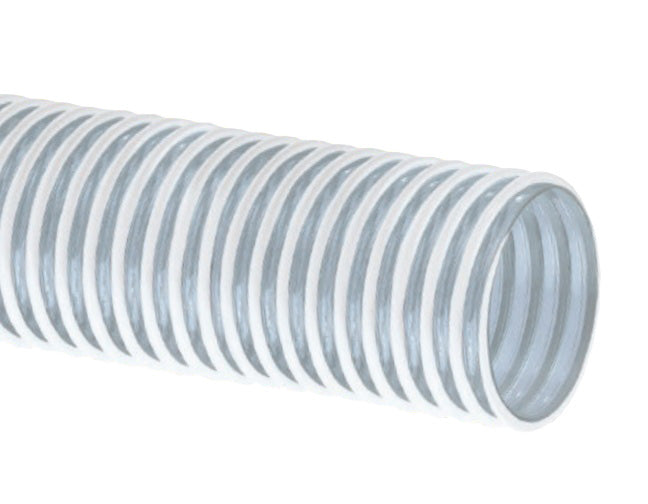

CG200X100 Tigerflex™ by Kuriyama | CG™ Series | Light Weight PVC Ducting Hose | 2" ID | 2.30" OD | 100ft Length

CG200X100 Tigerflex™ by Kuriyama | CG™ Series | Light Weight PVC Ducting Hose | 2" ID | 2.30" OD | 100ft Length

Save $226.74 Save $226.74
$523.14
$523.14 - $523.14
$523.14
$296.40
$296.40 - $296.40
$296.40

Tigerflex™ by Kuriyama
CG™ Series | Light Weight PVC Ducting Hose

Suitable for dust collection, ventilation, and fume removal, as well as use as washing machine drain hoses.

Made in the USA.

Package Quantity: 100 Foot

Specifications for Variant SKU: CG200X100 Kuriyama | 100 |
Brand: Tigerflex
Series: CG Series
Hose Color(s): White/Off-White & Clear/Semi-Clear
Internal Diameter: 2in
Outer Diameter: 2.30in
Tubing Construction: PVC
Applicable Specs & Approvals: Applicable MSHA Standards, RoHS Compliant
General Applications:
  • Dust collection
  • Ducting, ventilation and fume removal
  • Washing machine drain hose
Construction:
  • PVC tube with rigid PVC helix.
Specifications:
  • MSHA(04)
  • Phthalate Free
  • RoHS
Service Temperature Range:
  • -4°F (-20°C) to +150°F (+65°C)*
    *Actual service temperature range is application dependent
Features and Advantages:
  • Transparent Construction - "See-the-flow." Allows for visual confiurmation of material flow.
  • Easy Slide Helix - Rigid helix design protects hose tube from cover wear, and allows hose to slide easily over rough surfaces. Easy-to-handle.
Notes:
  • Service life may vary depending on operating conditions and type of material being conveyed.
Part Number
100ft Length		 ID OD Working
Pressure
(PSI)		 Vacuum
Rating
Min. Bend
Radius
at 68°F		 Weight
in mm in mm at 68°F at 104°F at 68°F at 104°F in (lbs/ft)
CG200X100 2" 50.8mm 2.30" 58.4mm 12 PSI 6 PSI 10 in Hg 5 in Hg 2" 0.28 lbs/ft
CG238X100 2-3/8" 60.3mm 2.76" 70.1mm 12 PSI 6 PSI 10 in Hg 5 in Hg 2" 0.38 lbs/ft
CG250X100 2-1/2" 63.5mm 2.81" 71.3mm 10 PSI 5 PSI 8 in Hg 4 in Hg 2" 0.39 lbs/ft
CG300X100 3" 76.2mm 3.35" 85.0mm 8 PSI 4 PSI 7 in Hg 3 in Hg 3" 0.45 lbs/ft
CG350X100 3-1/2" 88.9mm 3.83" 97.4mm 8 PSI 4 PSI 7 in Hg 3 in Hg 3" 0.51 lbs/ft
CG400X100 4" 102.4mm 4.39" 111.4mm 6 PSI 3 PSI 6 in Hg 3 in Hg 3" 0.64 lbs/ft

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
