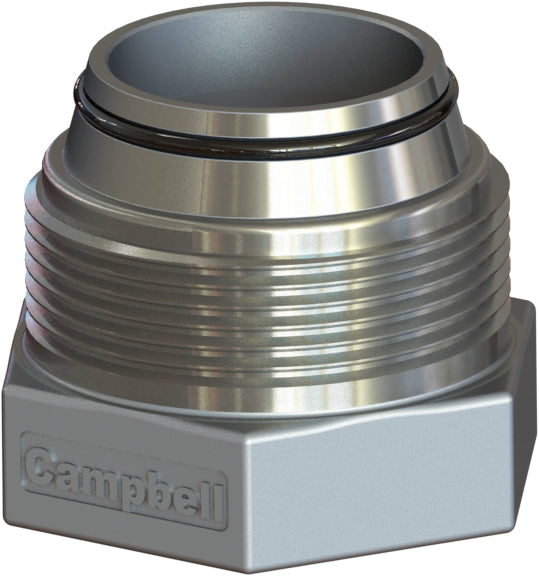

CJVS-4A by Campbell Fittings | CHEMJOINT™ VITON® Coupling | Female Spud | 1" Female ACME Thread x 1" Hose Size | Straight | 316 Stainless Steel

CJVS-4A by Campbell Fittings | CHEMJOINT™ VITON® Coupling | Female Spud | 1" Female ACME Thread x 1" Hose Size | Straight | 316 Stainless Steel

Save $76.15 Save $76.15
$190.38
$190.38 - $190.38
$190.38
$114.23
$114.23 - $114.23
$114.23

by Campbell
CHEMJOINT™ Couplings:CHEMJOINT™ Female VITON® Spud with ACME threads
Specifications for Variant SKU: CJVS-4A Campbell Fittings
Brand: CHEMJOINT™
Shape (Orientation): Straight
Material(s): 316 Stainless Steel
Seal Material(s): Viton
Description: ChemJoint™ Couplings and Male Stems create an extremely versatile Chemical Hose assembly system. The system solves problematic Cam and Groove issues such as pressure, temperature, side load, viscosity, line dedication and ergonomics.
Features and Benefits:
  • Graduated serration pattern - sharper near the interlock, rounder near the end. Grips and seals plastic lined Chemical Hose without cutting through the tube.
  • 360° interlock groove on fitting locks ferrule into place for the ultimate in holding power.
  • Crimped assemblies are low profile and eliminate sharp edges from bands.
  • Viton® Seal allows coupling to meet pressure ratings with hand-tightened nut.
Recommended Hose Attachment:
  • Interlocking ferrules
  • Preformed bands
Part Number NPT
CJVS-4A 1"
CJVS-6A 1-1/2"
CJVS-8A 2"
CJVS-12A 3"
