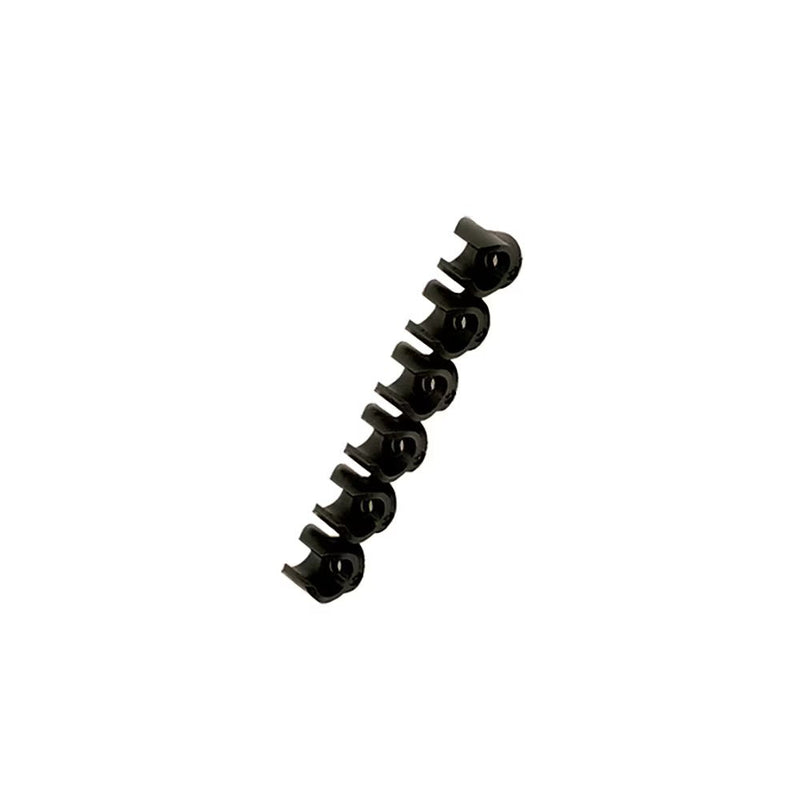

CLIP-12-00 by Parker | Legris Prestolok PLP Composite Push-to-Connect Fittings | Accessories | 1/2", 10mm Tube | 16.5mm Height (H) | LF3000 To Be Clipped | No. Per Strip 5 | Pack of 10

Save $4.54

$49.93

$49.93 - $49.93

$49.93

$45.39

$45.39 - $45.39

$45.39

by Parker Hannifin
Push-to-Connect Fittings:Clip Strips for Tubing and Fittings

Package Quantity: 10 Units

Quantity

Specifications for Variant SKU: CLIP 12 00 Parker \| 10 \|
Shape (Orientation):	No Orientation
Material(s):	Glass-Reinforced Nylon
Special Properties:	Corrosion Resistance, Chemical Resistance, Silicone Free

Product Features:	Stainless steel grab ring Glass-reinforced nylon 6.6 body Nitrile D-seal Nylon release button Corrosion and chemical resistance NPT, BSPT, BSPP, and metric threads Silicone Free
Markets:	Pneumatic Industrial Robotic Automation Printing Packaging Textile
Compatible Media:	Compressed Air Inert Gases Vacuum
Pressure Range:	Up to 290 PSI (19.9 bar) depending on tubing Up to 260 PSI (17.9 bar) depending on tubing (3/16” size only)
Temperature Range:	-4° to +175° F (-20° to +79.4° C) 5° to +155° F (-15° to +68.3° C) (3/16” size only)
Vacuum Rating:	28" Hg
Compatible Tubing:	Semi-rigid nylon Polyurethane 95 Durometer Shore A* Nylon Fluoropolymer Polyethylene


Part Number	D Tube	LF3000 To Be Clipped	H	K	N	Number Per Strip
CLIP 04 00	5/32, 4MM	-	9 mm	13.5 mm	10.5 mm	8
CLIP 06 00	1/4, 3/16, 6MM	-	10.5 mm	13.0 mm	10.5 mm	8
CLIP 08 00	5/16, 8MM	5/32, 4MM	12.5 mm	10.5 mm	12 mm	7
CLIP 10 00	3/8, 10MM	1/4, 6MM	14 mm	12 mm	15 mm	6
CLIP 12 00	1/2, 12MM	-	16.5 mm	14 mm	16.5 mm	5
CLIP 14 00	14MM	5/16, 8MM	18 mm	16 mm	20.5 mm	4

Clip strips come complete with screws of .512 inches in length.

Parker Fluid System Connectors Division

Parker Fluid System Connectors Division delivers quality and service from design to delivery. Their engineers leverage advanced technology to create prototypes, refine designs, and improve manufacturing efficiencies, offering tailored solutions. ISO 9001 certified and focused on sustainability, they utilize recyclable materials and a brass chip recycling program to protect the environment and control costs. Flexible assembly, packaging, and shipping systems support diverse needs, including kitting and custom labeling, ensuring high-quality products and outstanding customer support.
