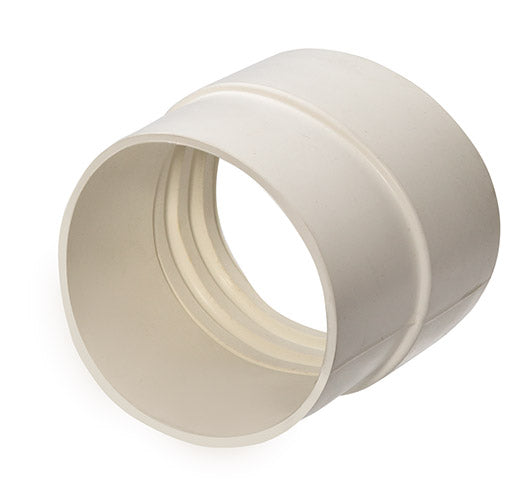

CMCW-150 Tiger-Duct® by Kuriyama | Extendo-Duct® | CMCW Series | Molded Cuff for Ducting Hose | 1-1/2" ID | 2.76" Length | White

Save $71.37

$76.45

$76.45 - $76.45

$76.45

$5.08

$5.08 - $5.08

$5.08

Tiger-Duct® by Kuriyama
Extendo-Duct® | CMCB / CMCW Series | Molded Cuff for Ducting Hose

For use on Extendo-Duct Air Ducting Hose.

Specifications for Variant SKU: CMCW-150 Kuriyama
Brand:	Tiger-Duct
Series:	Extendo-Duct, CMCW Series
Hose Color(s):	White
Internal Diameter:	1.50in - 1-1/2in
Tubing Construction:	EPT Rubber

Construction:
Material: EPT Rubber
Notes:
Molded cuffs are sold seperately from hoses.


Part Number Brown	Part Number White	ID	L Total Length	A Cuff Length Outside	B Cuff Length Inside	T Thickness
CMCB-150	CMCW-150	1-1/2"	2.76"	1.38"	1.57"	3mm
CMCB-200	CMCW-200	2"	2.76"	1.38"	1.57"	3mm
CMCB-250	CMCW-250	2-1/2"	2.76"	1.38"	1.57"	3mm
CMCB-300	CMCW-300	3"	3.15"	1.57"	1.77"	3mm
CMCB-400	CMCW-400	4"	3.54"	1.77"	1.97"	3mm
CMCB-500	CMCW-500	5"	3.74"	1.77"	1.93"	3.5mm
CMCB-600	CMCW-600	6"	3.94"	1.77"	2.17"	3mm

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
