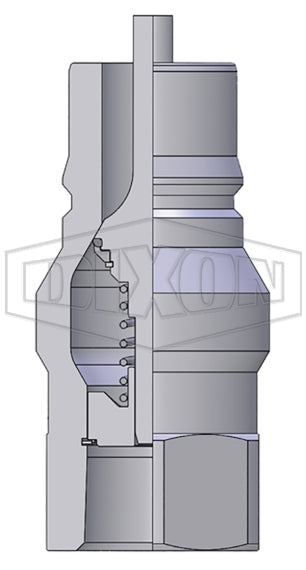

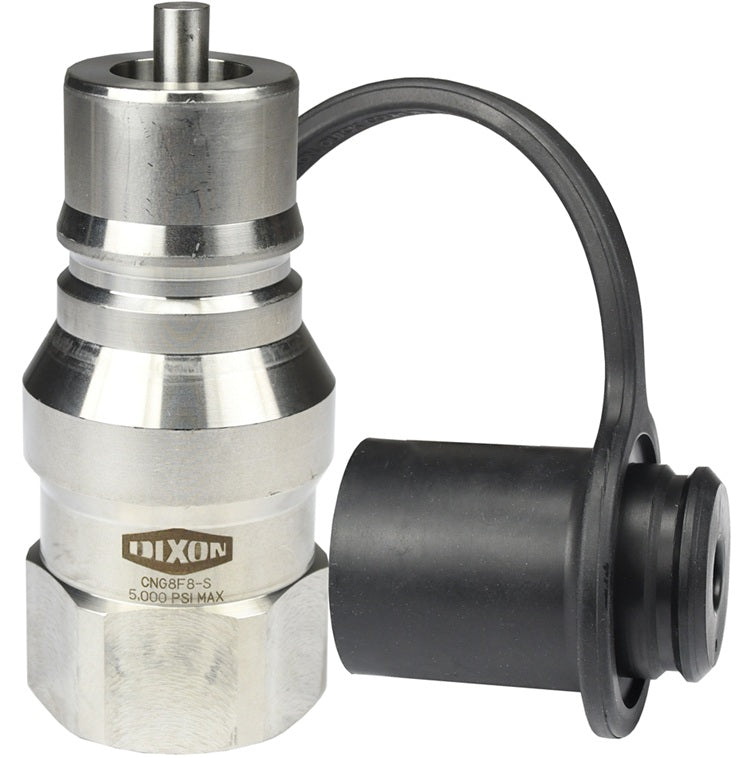

CNG8F8-S by Dixon Valve | Hydraulic Quick Disconnect Coupling | CNG-Series | 1" Female NPTF x 1" Body Size | ISO-B Compressed Natural Gas Plug | 303 Stainless Steel

CNG8F8-S by Dixon Valve | Hydraulic Quick Disconnect Coupling | CNG-Series | 1" Female NPTF x 1" Body Size | ISO-B Compressed Natural Gas Plug | 303 Stainless Steel

Save $14.94 Save $14.94
$134.42
$134.42 - $134.42
$134.42
$119.48
$119.48 - $119.48
$119.48

Dixon Valve & Coupling
Hydraulic Coupling: CNG-Series ISO-B Compressed Natural Gas Plug (Female Threads)

Used to facilitate the large volume transfer of high-pressure compressed natural gas (CNG) for applications such as virtual CNG pipelines, mining, oil exploration, well site development, and remote location natural gas delivery.
Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for Variant SKU: CNG8F8-S Dixon
Series: CNG-Series
Shape (Orientation): Straight
Ends Configuration: 1in Male ISO-B QD Interchange, 1in Female NPTF
Material(s): 303 Stainless Steel
Compatibility & Interchange:
  • Designed to ISO7241-B Series
  • Interchangeable with Oasis 300 Series
Specifications:
  • Improved body and valve design provides a 30% increased flow performance over standard ISO-B designs.
  • The latch mechanism provides brinelling resistance.
  • Locking sleeve design prevents accidental disconnection.
  • Captured valve O-ring for reliability in high-flow conditions.
  • CNG plugs supplied with combination dust cap/plug.
  • Non-sparking material.
Construction:
  • Machined from 303 stainless steel bar stock.
  • Pressure Seal: FKM / Nitrile.
  • Nitrile seals are standard, providing a temperature range of -65°F to 180°F (-65°C to 82°C).
Features:
  • Optimized geometry to improve flow.
  • Elongated plug body length.
  • Captured valve O-ring.
Use:
  • Meets CNG service requirements.
Additional Information:
CNG-Series | ISO-B Compressed Natural Gas Plug (Female Threads)
Part
Number		 Coupling
Type		 Body
Size		 Threads Material Length Max.
OD		 Hex Max. Operating
Pressure		 Working
Pressure		 Burst
Pressure		 Flow
CNG8F8-S Plug/Male 1" 1" - 11-1/2
Female NPTF 		303 Stainless 4.72"
(119.88mm)		 2.06"
(52.32mm)		 1-7/8" 5000 PSI
(345 bar)		 5000 PSI MAWP 18,500 PSI
(1,275 bar)		 74 GPM @
22 PSI
CNG-Series | ISO-B Compressed Natural Gas Coupler (Female Threads)
Part
Number		 Coupling
Type		 Body
Size		 Threads Material Length Max.
OD		 Hex Max. Operating
Pressure		 Working
Pressure		 Burst
Pressure		 Flow
8CNGF8-S Socket/Female 1" 1" - 11-1/2
Female NPTF		 303 Stainless 4.30"
(109.22mm)		 2.53"
(64.26mm)		 1-7/8" 5000 PSI
(345 bar)		 5000 PSI MAWP 18,500 PSI
(1,275 bar)		 74 GPM @
22 PSI
CNG-Series | ISO-B Compressed Natural Gas Plug (Male Threads)
Part
Number		 Coupling
Type		 Body
Size		 Threads Material Length Max.
OD		 Hex Max. Operating
Pressure		 Working
Pressure		 Burst
Pressure		 Flow
CNG8OM8-S Plug/Male 1" 1-5/16" - 12
Male ORB		 303 Stainless 4.70"
(119.38mm)		 2.66"
(67.57mm)		 2-3/8" 5,000 PSI
(345 bar)		 5,000 PSI MAWP 18,500 PSI
(1,275 bar)		 74 GPM @
22 PSI
