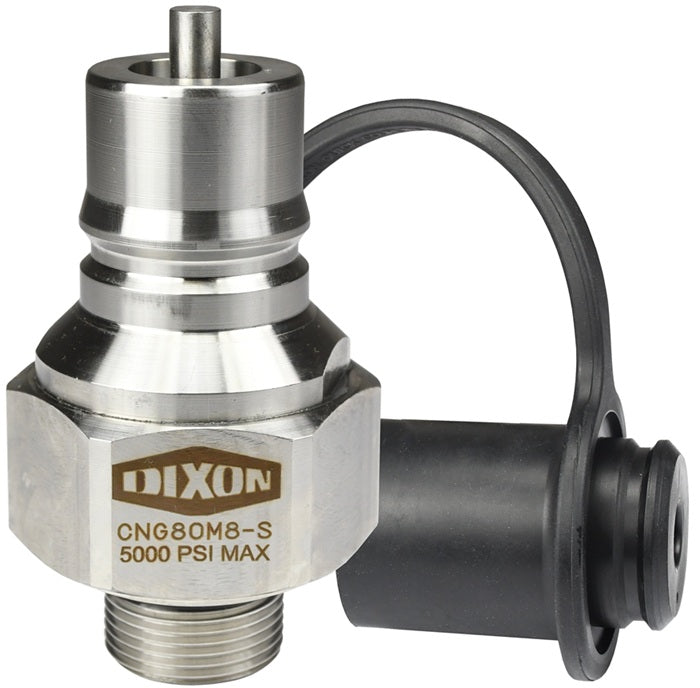

CNG8OM8-S by Dixon Valve | Hydraulic Quick Disconnect Coupling | CNG-Series | 1" Male ORB x 1" Body Size | ISO-B Compressed Natural Gas Plug | 303 Stainless Steel

CNG8OM8-S by Dixon Valve | Hydraulic Quick Disconnect Coupling | CNG-Series | 1" Male ORB x 1" Body Size | ISO-B Compressed Natural Gas Plug | 303 Stainless Steel

Save $142.22 Save $142.22
$355.55
$355.55 - $355.55
$355.55
$213.33
$213.33 - $213.33
$213.33

Dixon Valve & Coupling
Hydraulic Coupling: CNG-Series ISO-B Compressed Natural Gas Plug (Male Threads)

Used to facilitate the large volume transfer of high-pressure compressed natural gas (CNG) for applications such as virtual CNG pipelines, mining, oil exploration, well site development, and remote location natural gas delivery.
Specifications for Variant SKU: CNG8OM8-S Dixon
Series: CNG-Series
Shape (Orientation): Straight
Ends Configuration: 1in Male ISO-B QD Interchange, 1in Female NPTF
Material(s): 303 Stainless Steel
Compatibility & Interchange:
  • Designed to ISO7241-B Series
  • Interchangeable with Oasis 300 Series
Specifications:
  • Improved body and valve design provides a 30% increased flow performance over standard ISO-B designs.
  • The latch mechanism provides brinelling resistance.
  • Locking sleeve design prevents accidental disconnection.
  • Captured valve O-ring for reliability in high-flow conditions.
  • CNG plugs supplied with combination dust cap/plug.
  • Non-sparking material.
Warning:
  • For gas service only. Not for use in hydraulic applications.
Use:
  • Meets CNG service requirements.
Additional Information:
CNG-Series | ISO-B Compressed Natural Gas Plug (Male Threads)
Part
Number		 Coupling
Type		 Body
Size		 Threads Material Length Max.
OD		 Hex Max. Operating
Pressure		 Working
Pressure		 Burst
Pressure		 Flow
CNG8OM8-S Plug/Male 1" 1-5/16" - 12
Male ORB		 303 Stainless 4.70"
(119.38mm)		 2.66"
(67.57mm)		 2-3/8" 5,000 PSI
(345 bar)		 5,000 PSI MAWP 18,500 PSI
(1,275 bar)		 74 GPM @
22 PSI
CNG-Series | ISO-B Compressed Natural Gas Coupler (Female Threads)
Part
Number		 Coupling
Type		 Body
Size		 Threads Material Length Max.
OD		 Hex Max. Operating
Pressure		 Working
Pressure		 Burst
Pressure		 Flow
8CNGF8-S Socket/Female 1" 1" - 11-1/2
Female NPTF		 303 Stainless 4.30"
(109.22mm)		 2.53"
(64.26mm)		 1-7/8" 5000 PSI
(345 bar)		 5000 PSI MAWP 18,500 PSI
(1,275 bar)		 74 GPM @
22 PSI
8CNGOM8-S Socket/Female 1" 1-5/16" - 12
Female ORB		 303 Stainless 4.49"
(119.4 mm)		 2.65"
(67.6 mm)		 - 5000 PSI
(345 bar)		 5000 PSI MAWP 18,500 PSI
(1,275 bar)		 74 GPM @
22 PSI
CNG-Series | ISO-B Compressed Natural Gas Plug (Female Threads)
Part
Number		 Coupling
Type		 Body
Size		 Threads Material Length Max.
OD		 Hex Max. Operating
Pressure		 Working
Pressure		 Burst
Pressure		 Flow
CNG8F8-S Plug/Male 1" 1" - 11-1/2
Female NPTF		 303 Stainless 4.72"
(119.88mm)		 2.06"
(52.32mm)		 1-7/8" 5000 PSI
(345 bar)		 5000 PSI MAWP 18,500 PSI
(1,275 bar)		 74 GPM @
22 PSI
