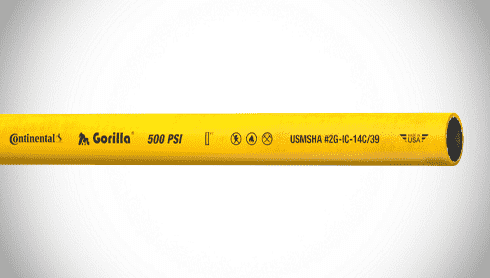

ContiTech Gorilla® Air / Multipurpose Hose - 1.50" (1-1/2") ID - 500 PSI - Yellow - 20026309 Goodyear/Continental - 300ft

20026309 Gorilla® by ContiTech | Air / Multipurpose Hose | Continental | 1.50" (1-1/2") ID | 500 PSI | Yellow | 300ft

Save $114.91 Save $114.91
$4,670.67
$4,670.67 - $4,670.67
$4,670.67
$4,555.76
$4,555.76 - $4,555.76
$4,555.76

Continental ContiTech Gorilla® Air & Multipurpose Hose

A premium-quality, flame resistant, multipurpose industrial hose with a wide range of applications in factories, construction, agriculture, quarries, mines, railroads, the oil and gas industry and shipbuilding. All sizes are crush-resistant and rated at 500 psi (3.4 MPa) maximum working pressure. The premium Carbryn™ cover offers the most superior abrasion resistance of air and multipurpose hoses. Non-conductive, minimum electrical resistance greater than 1 megohm per inch of hose length at 1000 Volts DC.

Package Quantity: 300 FT

Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for Variant SKU: 20026309 ContiTech | 300 |
Brand: Gorilla
Series: Gorilla
Hose Color(s): Yellow
Internal Diameter: 1.50in
Outer Diameter: 2.04in
Tubing Construction: Nitrile
Cover Construction: Synthetic Rubber
Applicable Specs & Approvals: MSHA 2G-IC-14C/39

SPECIFICATIONS

Application: Factories, construction, agriculture, quarries, mines, railroads, oil and gas industry, shipbuilding. SAE Rating: N/A
Other Ratings: N/A Tube: Nitrile synthetic rubber, ARPM Class A (High Oil Resistance)
Reinforcement: Spiral aramid yarn, 2" is braided synthetic yarn Cover: Yellow Carbryn™ synthetic rubber, ARPM Class A (High Oil Resistance) MSHA approved
Temperature Range: -20°F to 210°F (-29°C to 99°C) Fittings: N/A
Branding: Example: Gorilla® by Continental ContiTech 1" (25.4 mm) 500 psi Made in USA Flame Resistant USMSHA No. 2G-IC-14C/39
Part Number Inside
Diameter		 Nominal Outside
Diameter		 Max. Working
Pressure		 Couplings Length Weight Order Code
in. mm in. mm PSI MPa lb./ft. kg/m
20026239 1/4" 6.4mm 0.61" 15.5mm 500 PSI 3.45 MPa - 500ft 0.17 lbs./ft. 0.25 kg/m 56903506400200
20026256 3/8" 9.5mm 0.73" 18.6mm 500 PSI 3.45 MPa - 500ft 0.22 lbs./ft. 0.33 kg/m 56903509500200
20026273 1/2" 12.7mm 0.89" 22.6mm 500 PSI 3.45 MPa - 500ft 0.28 lbs./ft. 0.42 kg/m 56903512700200
20026289 5/8" 15.9mm 1.06" 26.9mm 500 PSI 3.45 MPa - 500ft 0.35 lbs./ft. 0.52 kg/m 56903515900200
20026290 3/4" 19.1mm 1.19" 30.2mm 500 PSI 3.45 MPa - 500ft 0.41 lbs./ft. 0.61 kg/m 56903519100200
20026304 1" 25.4mm 1.50" 37.8mm 500 PSI 3.45 MPa - 450ft 0.58 lbs./ft. 0.86 kg/m 56903525400200
20026306 1-1/4" 31.8mm 1.77" 45.6mm 500 PSI 3.45 MPa - 400ft 0.79 lbs./ft. 1.18 kg/m 56903531800200
20026309 1-1/2" 38.1mm 2.04" 51.8mm 500 PSI 3.45 MPa - 300ft 0.86 lbs./ft. 1.27 kg/m 56903538100200
20305356 1-1/2" 38.1mm 2.04" 51.8mm 500 PSI 3.45 MPa - 50ft 0.86 lbs./ft. 1.27 kg/m 53644606405000
20023183 2" 50.8mm 2.62" 6.66mm 500 PSI 3.45 MPa - 100ft 1.22 lbs./ft. 1.82 kg/m 53644606410000
Coupled Lengths
20129563 1/4" 6.4mm 0.61" 15.5mm 500 PSI 3.45 MPa 1/4" Male NPT x 1/4" Male NPT 25ft 0.17 lbs./ft. 0.25 kg/m 56903506412501
20132763 1/4" 6.4mm 0.61" 15.5mm 500 PSI 3.45 MPa 1/4" Male NPT x 1/4" Male NPT 50ft 0.17 lbs./ft. 0.25 kg/m 56903506453301
20129566 3/8" 9.5mm 0.73" 18.6mm 500 PSI 3.45 MPa 3/8" Male NPT x 3/8" Male NPT 25ft 0.22 lbs./ft. 0.33 kg/m 56903509512501
20132764 3/8" 9.5mm 0.73" 18.6mm 500 PSI 3.45 MPa 3/8" Male NPT x 3/8" Male NPT 50ft 0.22 lbs./ft. 0.33 kg/m 56903509553301
20129569 1/2" 12.7mm 0.89" 22.6mm 500 PSI 3.45 MPa 1/2" Male NPT x 1/2" Male NPT 25ft 0.28 lbs./ft. 0.42 kg/m 56903512712501
20132766 1/2" 12.7mm 0.89" 22.6mm 500 PSI 3.45 MPa 1/2" Male NPT x 1/2" Male NPT 50ft 0.28 lbs./ft. 0.42 kg/m 56903512753301
20129582 3/4" 19.1mm 1.19" 30.2mm 500 PSI 3.45 MPa 3/4" Male NPT x 3/4" Male NPT 50ft 0.41 lbs./ft. 0.61 kg/m 56903519115001

Hose design ratio (burst pressure) 4:1.

Continental ContiTech

Continental ContiTech

ContiTech specializes in the engineering and distribution of innovative, reliable and high-performance industrial hose products for a vast array of industrial, commercial and residential applications. They are used in machine and plant engineering, mining, agriculture, the automotive industry, and other important sectors of the future.
