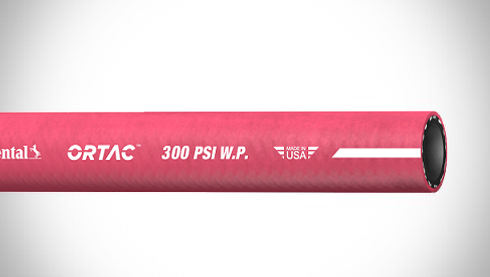

Continental ContiTech Ortac® 300 Air & Multipurpose Hose

Ortac® (Oil-Resistant Tube and Cover) is Continental's most popular premium-quality multipurpose hose. Used in the most abusive industrial applications, Ortac® will handle air, oil, water, kerosene and some chemicals. The premium Carbryn™ cover offers the most superior abrasion resistance of air and multipurpose hoses. Non-conductive, minimum electrical resistance greater than 1 megohm per inch of hose length at 1000 volts DC.

Package Quantity: 500 FT

Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for Variant SKU: 20026568 ContiTech | 500 |
Brand: Ortac 300
Series: Ortac 300
Hose Color(s): Red
Internal Diameter: 0.50in
Outer Diameter: 0.89in
Tubing Construction: Nitrile
Cover Construction: Synthetic Rubber

SPECIFICATIONS

Application: Air, oil, water, kerosene and some chemicals. SAE Rating: N/A
Other Ratings: N/A Tube: Nitrile synthetic rubber, ARPM Class A (High Oil Resistance)
Reinforcement: Spiral synthetic yarn, 2" is braided Cover: Red Carbryn™ synthetic rubber, ARPM Class A (High Oil Resistance)
Temperature Range: -20°F to 210°F (-29°C to 99°C) Fittings: N/A
Branding: Example: 1-1/2" (38.1 mm) Ortac® 300 psi WP. Made in USA. ContiTech
Part Number Inside
Diameter		 Nominal Outside
Diameter		 Max. Working
Pressure		 Length Weight Order Code
in. mm in. mm PSI MPa lb./ft. kg/m
20026560 3/16" 4.8mm 0.44" 11.8mm 300 PSI 2.07 MPa 500ft 0.07 lbs./ft. 0.10 kg/m 56905904800200
20026561 1/4" 6.4mm 0.61" 15.7mm 300 PSI 2.07 MPa 500ft 0.14 lbs./ft. 0.21 kg/m 56905906400200
20026563 5/16" 7.9mm 0.68" 17.3mm 300 PSI 2.07 MPa 500ft 0.16 lbs./ft. 0.24 kg/m 56905907900200
20026564 3/8" 9.5mm 0.73" 18.6mm 300 PSI 2.07 MPa 500ft 0.18 lbs./ft. 0.27 kg/m 56905909500200
20026568 1/2" 12.7mm 0.89" 22.6mm 300 PSI 2.07 MPa 500ft 0.25 lbs./ft. 0.37 kg/m 56905912700200
20026570 5/8" 15.9mm 1.06" 26.9mm 300 PSI 2.07 MPa 500ft 0.35 lbs./ft. 0.52 kg/m 56905915900200
20026571 3/4" 19.1mm 1.19" 30.2mm 300 PSI 2.07 MPa 500ft 0.40 lbs./ft. 0.60 kg/m 56905919100200
20026575 1" 25.4mm 1.50" 38.1mm 300 PSI 2.07 MPa 450ft 0.59 lbs./ft. 0.88 kg/m 56905925400200
20026579 1-1/4" 31.8mm 1.81" 46.0mm 300 PSI 2.07 MPa 400ft 0.76 lbs./ft. 1.13 kg/m 56905931800200
20026583 1-1/2" 38.1mm 2.08" 52.8mm 300 PSI 2.07 MPa 300ft 0.88 lbs./ft. 1.31 kg/m 56905938100200

Hose design ratio (burst pressure) 4:1.
