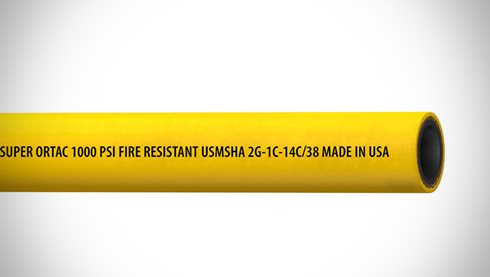

20024066 Super Ortac® by ContiTech | Heavy Duty Air / Multipurpose Hose | Continental | 1.00" (1") ID | 1000 PSI | Yellow | 100ft

20024066 Super Ortac® by ContiTech | Heavy Duty Air / Multipurpose Hose | Continental | 1.00" (1") ID | 1000 PSI | Yellow | 100ft

Minimum Order Quantity: 2 Units

Save $474.45 Save $474.45
$1,398.45
$1,398.45 - $1,398.45
$1,398.45
$924.00
$924.00 - $924.00
$924.00

Continental ContiTech Super Ortac® Heavy Duty Air & Multipurpose Hose

For heavy-duty service in handling air, water, oil, petroleum-based solvents and agricultural spray solutions.

This hose ships in 50ft reels

Package Quantity: 100 FT

Specifications for Variant SKU: 20024066 ContiTech | 100 |
Brand: Super Ortac
Series: Super Ortac
Hose Color(s): Yellow
Internal Diameter: 1in
Outer Diameter: 1.45in
Tubing Construction: Nitrile
Cover Construction: Synthetic Rubber
Applicable Specs & Approvals: MSHA 2G-IC-14C/38

SPECIFICATIONS

Application: Air, water, oil, petroleumbased solvents and agricultural spray solutions. SAE Rating: N/A
Other Ratings: MSHA approved Tube: Nitrile synthetic rubber, ARPM Class B (Medium Oil Resistance)
Reinforcement: One braided steel wire Cover: Yellow Chemivic synthetic rubber, ARPM Class B (Medium Oil Resistance), smooth finish, pin-pricked, MSHA approved
Temperature Range: -20°F to 210°F (-29°C to 99°C) Fittings: N/A
Branding: Continental ContiTech 1" Super Ortac® 1000 psi Fire-resistant USMSHA 2G-IC-14C/38 Made in USA
Yellow
Part Number		 Inside
Diameter		 Nominal Outside
Diameter		 Max. Working
Pressure		 Length Weight Yellow
Order Code
in. mm in. mm PSI MPa lb./ft. kg/m
20024049 1/2" 12.7mm 0.91" 23.1mm 1000 PSI 6.9 MPa 500ft 0.34 lbs./ft. 0.51 kg/m 53915201600200
20024051 1/2" 12.7mm 0.91" 23.1mm 1000 PSI 6.9 MPa 50ft 0.34 lbs./ft. 0.51 kg/m 53915201605000
20024054 3/4" 19.1mm 1.14" 29.0mm 1000 PSI 6.9 MPa 500ft 0.44 lbs./ft. 0.65 kg/m 53915202400200
20024056 3/4" 19.1mm 1.14" 29.0mm 1000 PSI 6.9 MPa 50ft 0.44 lbs./ft. 0.65 kg/m 53915202405000
20024064 1" 25.4mm 1.45" 36.8mm 1000 PSI 6.9 MPa 500ft 0.63 lbs./ft. 0.94 kg/m 53915203200200
20024066 1" 25.4mm 1.45" 36.8mm 1000 PSI 6.9 MPa 50ft 0.63 lbs./ft. 0.94 kg/m 53915203205000
20024068 1-1/4" 31.8mm 1.75" 44.5mm 1000 PSI 6.9 MPa 300ft 0.86 lbs./ft. 1.28 kg/m 53915204000200
20024070 1-1/4" 31.8mm 1.75" 44.5mm 1000 PSI 6.9 MPa 50ft 0.86 lbs./ft. 1.28 kg/m 53915204005000
20024072 1-1/2" 38.1mm 1.98" 50.8mm 1000 PSI 6.9 MPa 300ft 1.08 lbs./ft. 1.61 kg/m 53915204800200
20024074 1-1/2" 38.1mm 1.98" 50.8mm 1000 PSI 6.9 MPa 50ft 1.08 lbs./ft. 1.61 kg/m 53915204805000
20024077 2" 50.8mm 2.55" 64.3mm 1000 PSI 6.9 MPa 50ft 1.57 lbs./ft. 2.34 kg/m 53915206405000

Hose design ratio (burst pressure) 4:1.

Continental ContiTech

ContiTech specializes in the engineering and distribution of innovative, reliable and high-performance industrial hose products for a vast array of industrial, commercial and residential applications. They are used in machine and plant engineering, mining, agriculture, the automotive industry, and other important sectors of the future.
