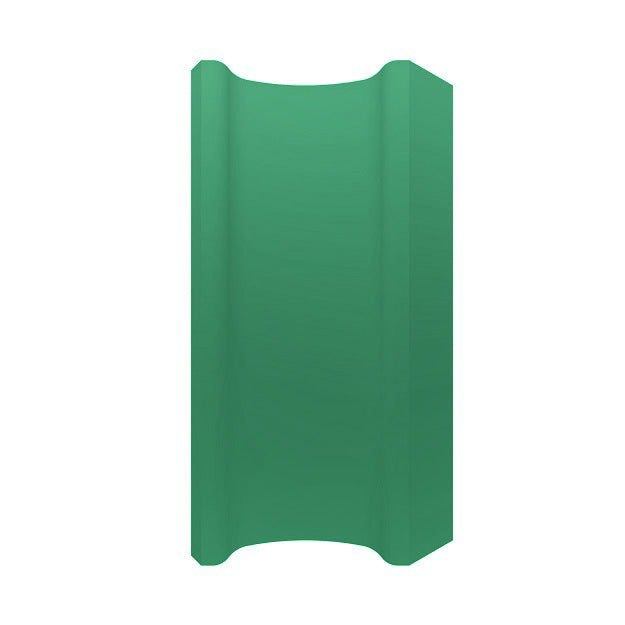

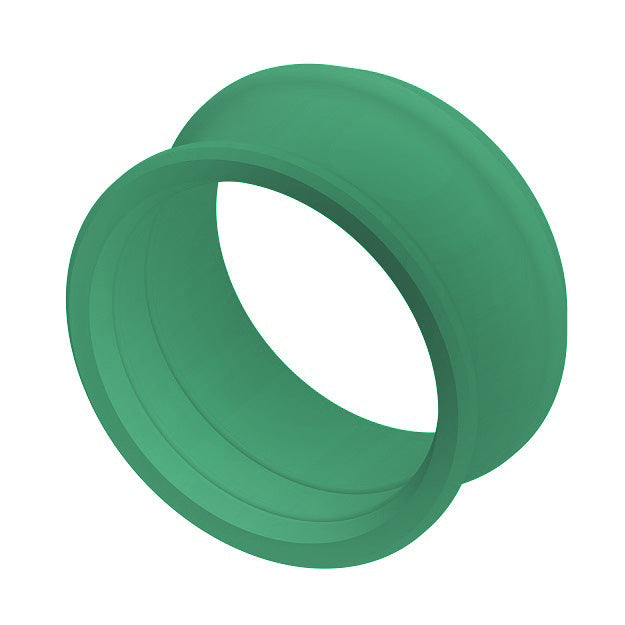

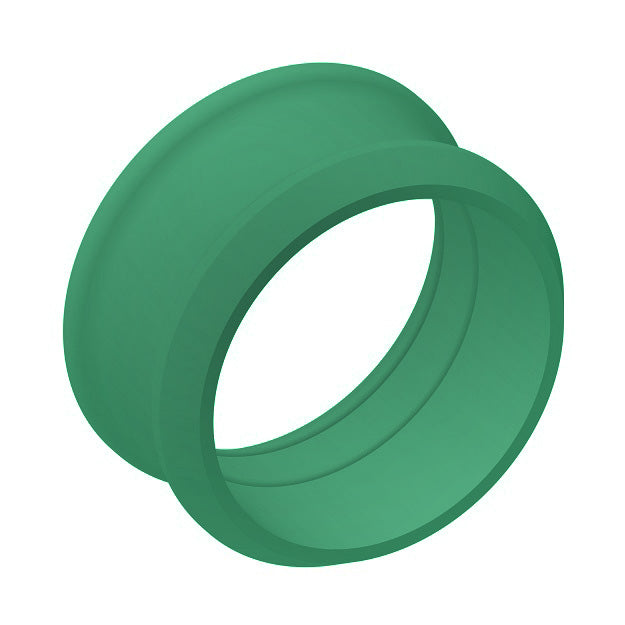

CR12FFSDG Hansen® by Danfoss | Quick Disconnect Coupling | Color Coding Ring for FF Series/MLFF Series Sockets | 1/2" Body Size | Green

CR12FFSDG Hansen® by Danfoss | Quick Disconnect Coupling | Color Coding Ring for FF Series/MLFF Series Sockets | 1/2" Body Size | Green

Name: CR12FFSDG Hansen® by Danfoss | Quick Disconnect Coupling | Color Coding Ring for FF Series/MLFF Series Sockets | 1/2" Body Size | Green
Brand: Danfoss/Eaton
SKU: CR12FFSDG Danfoss
Price: 4.84 USD
Availability: InStock

$4.84 - $4.84

$4.84

$4.84 - $4.84

$4.84

Hansen® by Danfoss
FF Series | MLFF Series | Flat Face ISO 16028 Interchange | Color Coding Ring

Color identification rings to help prevent crossing of lines.

Specifications for Variant SKU: CR12FFSDG Danfoss
Brand:	Hansen
Series:	FF Series/MLFF Series

Product Features:	Good thermal, chemical and weather resistance provides a great fit on the coupling and a extended life time in toughest conditions. The color coded rings are easy to install by using the referenced tools.
Materials:	For color coded rings TPE material is used that offers excellent flexibility which allows a very good shock resistance in demanding applications

Rings for Socket/Female
Blue Part Number	Red Part Number	Yellow Part Number	Green Part Number	Body Size	ISO Size	Series	Installation Tool Part Number
CR10FFSLB	CR10FFSRD	CR10FFSYL	CR10FFSDG	3/8"	10mm	10FF / 10MLFF	CR10FFSP93
CR12FFSLB	CR12FFSRD	CR12FFSYL	CR12FFSDG	1/2"	12.5mm	12FF / 12MLFF	CR12FFSP93
CR16FFSLB	CR16FFSRD	-	CR16FFSDG	5/8"	16mm	16FF / 16MLFF	CR16FFSP93
CR19FFSLB	CR19FFSRD	CR19FFSYL	CR19FFSDG	3/4"	19mm	19FF / 19MLFF	-

Rings for Plug/Male
Blue Part Number	Red Part Number	Yellow Part Number	Green Part Number	Body Size	ISO Size	Series	Installation Tool Part Number
CR10FFPLB	CR10FFPRD	CR10FFPYL	CR10FFPDG	3/8"	10mm	10FF / 10MLFF	CR10FFSP93
CR12FFPLB	CR12FFPRD	CR12FFPYL	CR12FFPDG	1/2"	12.5mm	12FF / 12MLFF	CR12FFSP93
CR16FFPLB	CR16FFPRD	-	CR16FFPDG	5/8"	16mm	16FF / 16MLFF	CR16FFSP93
CR19FFPLB	CR19FFPRD	CR19FFPYL	CR19FFPDG	3/4"	19mm	19FF / 19MLFF	CR19FFSP93
