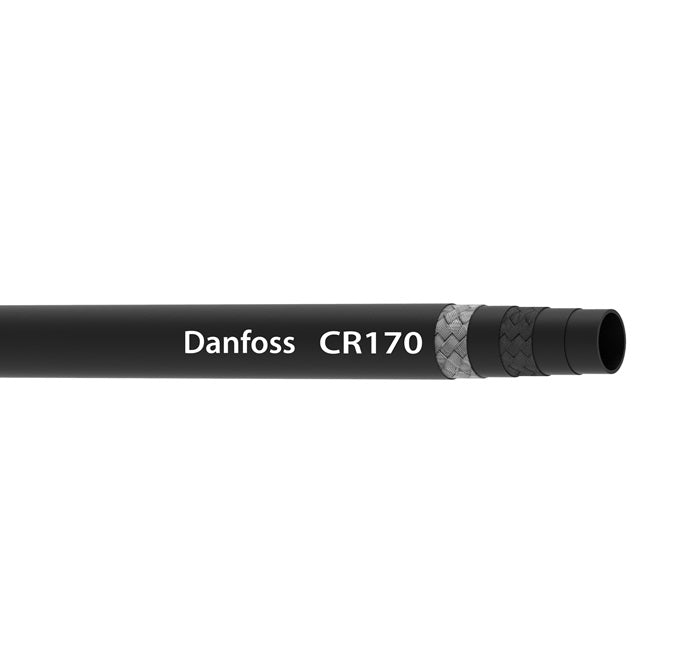

CR170-06 Aeroquip by Danfoss | LPG Single Stainless Steel Braided Transportation Hose | CGA Type III | 0.31" ID

CR170-06 Aeroquip by Danfoss | LPG Single Stainless Steel Braided Transportation Hose | CGA Type III | 0.31" ID

$15.56 - $15.56
$15.56
$15.56 - $15.56
$15.56

Aeroquip® by Danfoss
CR170 Series | LPG Single Stainless Steel Braided Transportation Hose

Purchased Lengths of hose will be multiple pieces unless Product Option or Title specifies Exact Length.
Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for Variant SKU: CR170-06 Danfoss
Brand: Aeroquip
Series: CR170 Series
Hose Color(s): Black
Internal Diameter: 0.31in
Outer Diameter: 0.67in
Tubing Construction: Nylon
Cover Construction: Neoprene
Hose Properties:
Application: LPG (propane) vehicle, alternative fuel conversion systems. SAE Ratings: N/A
Other Ratings: Meets: CGA Type III (Canadian Gas Association)
NOTE: Sizes 8 & 12 only are UL MH60773		 Tube: Nylon
Reinforcement: Single Stainless Steel Braid Cover: Perforated Synthetic Rubber
Operating Parameters: -40°F to +250°F (-40°C to +121°C)

WARNING: LPG is a very hazardous liquid or gas and should be handled with maximum care to prevent leakage. Since the gas is heavier than air, it may flow along the ground if it escapes and cause an explosion or a fire. No leakage should ever be tolerated.

Part Number Hose ID Hose OD Max. Operating Pressure Min. Burst Pressure Min. Bend Radius Weight
mm in mm in bar psi bar psi mm in kg/m lbs/ft
CR170-06 7,9mm 0.31" 17,0mm 0.67" 24,0 bar 350 psi 630,0 bar 9000 psi 101,6mm 4.00" 0,32 kg/m 0.22 lbs/ft
CR170-08* 10,4mm 0.41" 19,6mm 0.77" 24,0 bar 350 psi 560,0 bar 8000 psi 117,3mm 4.62" 0,38 kg/m 0.26 lbs/ft
CR170-12* 15,9mm 0.63" 28,0mm 1.10" 24,0 bar 350 psi 414,0 bar 6000 psi 165,1mm 6.50" 0,71 kg/m 0.48 lbs/ft

* Sizes 8 & 12 only are UL MH60773

Bulk / By the Foot: We sell Danfoss hose in "Bulk Length" unless otherwise specified in the title or option selector as "Exact Length". When you buy "Bulk Length" hose you are agreeing to buy multiple lengths that add up to the length you purchased. If your length can be supplied as a single piece then it will be, but there can be no assurance of this even if you contact us. If you need a single piece then you can select an "Exact Length" option or Contact Us for a quote.

Warning! Danfoss hose and fittings are engineered to match Danfoss Aeroquip hose and fitting tolerances. The use of Danfoss fittings on hose supplied by other manufacturers may result in the production of unreliable and unsafe hose assemblies and is neither recommended or authorized by Danfoss Corporation, Murdock Industrial Inc., or any other entity. Consult current master catalog for additional warnings and cautions.
