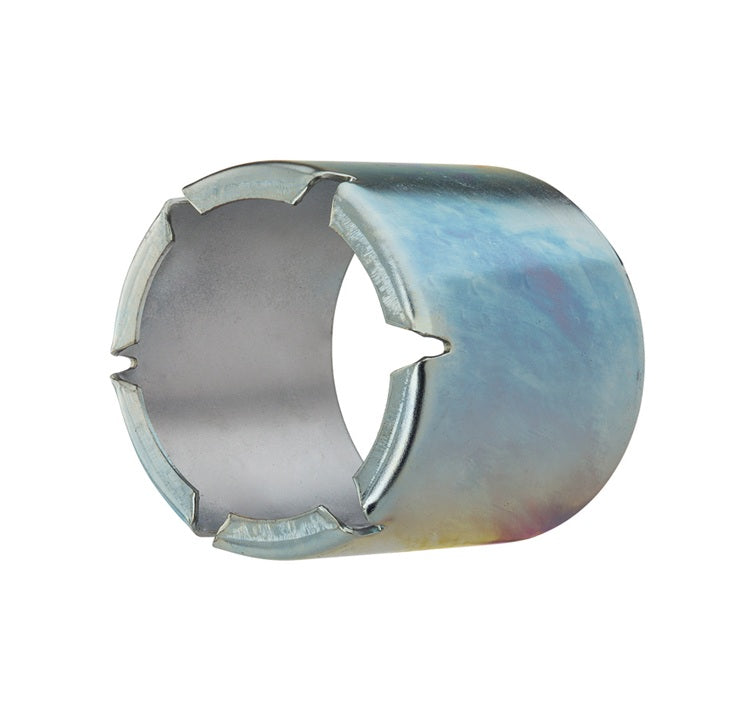

CRF-CS60706 KuriCrimp™ by Kuriyama | CRF-CS Series | Crimp Ferrule | 6" Hose ID | 7.38" Ferrule ID | Zinc Plated Steel

CRF-CS60706 KuriCrimp™ by Kuriyama | CRF-CS Series | Crimp Ferrule | 6" Hose ID | 7.38" Ferrule ID | Zinc Plated Steel

Save $16.42 Save $16.42
$48.77
$48.77 - $48.77
$48.77
$32.35
$32.35 - $32.35
$32.35

Kuriyama of America Inc.
CRF-CS Series | Crimp Ferrule | Zinc Plated Steel

Ferrules designed for use with fittings that have interlocking collars.
Specifications for Variant SKU: CRF-CS60706 Kuriyama
Brand: KuriCrimp
Series: CRF-CS Series
Material(s): Zinc Plated Steel

What are the Features?

  • Ferrules designed for use with fittings that have interlocking collars.

What are the Materials?

  • Zinc plated steel: AISI 1008
Part Number Hose ID Ferrule ID Wall Thickness Length Weight Each
(in) (in) (mm) (in) (mm) (in) (mm) (lbs)
CRF-CS08105 3/4" 1.31" 33.3mm 0.059" 1.5mm 2.14" 54.4mm 0.15 lbs
CRF-CS08106 3/4" 1.38" 35.0mm 0.059" 1.5mm 2.14" 54.4mm 0.16 lbs
CRF-CS08107 3/4" 1.44" 36.6mm 0.059" 1.5mm 2.14" 54.4mm 0.17 lbs
CRF-CS08108 3/4" 1.50" 38.1mm 0.059" 1.5mm 2.14" 54.4mm 0.18 lbs
CRF-CS10108 1" 1.50" 38.1mm 0.059" 1.5mm 2.29" 58.2mm 0.19 lbs
CRF-CS10109 1" 1.56" 39.6mm 0.059" 1.5mm 2.29" 58.2mm 0.20 lbs
CRF-CS10110 1" 1.63" 41.4mm 0.059" 1.5mm 2.29" 58.2mm 0.21 lbs
CRF-CS10111 1" 1.69" 42.9mm 0.059" 1.5mm 2.29" 58.2mm 0.22 lbs
CRF-CS10112 1" 1.75" 44.5mm 0.059" 1.5mm 2.29" 58.2mm 0.23 lbs
CRF-CS10113 1" 1.81" 46.0mm 0.059" 1.5mm 2.29" 58.2mm 0.24 lbs
CRF-CS15200 1-1/2" 2.00" 50.8mm 0.059" 1.5mm 2.36" 60.0mm 0.25 lbs
CRF-CS15202 1-1/2" 2.12" 53.8mm 0.059" 1.5mm 2.36" 60.0mm 0.26 lbs
CRF-CS15204 1-1/2" 2.25" 57.2mm 0.059" 1.5mm 2.36" 60.0mm 0.27 lbs
CRF-CS15206 1-1/2" 2.39" 60.7mm 0.059" 1.5mm 2.36" 60.0mm 0.28 lbs
CRF-CS20208 2" 2.50" 63.5mm 0.059" 1.5mm 2.36" 60.0mm 0.35 lbs
CRF-CS20209 2" 2.56" 65.0mm 0.059" 1.5mm 2.79" 70.9mm 0.37 lbs
CRF-CS20210 2" 2.62" 66.5mm 0.059" 1.5mm 2.79" 70.9mm 0.40 lbs
CRF-CS20211 2" 2.68" 68.1mm 0.059" 1.5mm 2.79" 70.9mm 0.40 lbs
CRF-CS20213 2" 2.81" 71.4mm 0.059" 1.5mm 2.79" 70.9mm 0.42 lbs
CRF-CS20215 2" 2.94" 74.7mm 0.059" 1.5mm 2.79" 70.9mm 0.44 lbs
CRF-CS25302 2-1/2" 3.12" 71.4mm 0.059" 1.5mm 3.11" 79.0mm 0.52 lbs
CRF-CS25304 2-1/2" 3.25" 82.6mm 0.059" 1.5mm 3.11" 79.0mm 0.54 lbs
CRF-CS25306 2-1/2" 3.39" 86.1mm 0.059" 1.5mm 3.11" 79.0mm 0.56 lbs
CRF-CS25308 2-1/2" 3.50" 88.9mm 0.059" 1.5mm 3.11" 79.0mm 0.58 lbs
CRF-CS30309 3" 3.56" 86.1mm 0.091" 2.3mm 3.94" 100.1mm 1.17 lbs
CRF-CS30310 3" 3.62" 88.9mm 0.091" 2.3mm 3.94" 100.1mm 1.19 lbs
CRF-CS30311 3" 3.69" 93.5mm 0.091" 2.3mm 3.94" 100.1mm 1.20 lbs
CRF-CS30312 3" 3.75" 95.3mm 0.091" 2.3mm 3.94" 100.1mm 1.21 lbs
CRF-CS30313 3" 3.81" 96.8mm 0.091" 2.3mm 3.94" 100.1mm 1.23 lbs
CRF-CS30315 3" 3.94" 100.1mm 0.091" 2.3mm 3.94" 100.1mm 1.25 lbs
CRF-CS30400 3" 4.00" 101.6mm 0.091" 2.3mm 3.94" 100.1mm 1.30 lbs
CRF-CS30404 3" 4.25" 108.0mm 0.091" 2.3mm 3.94" 100.1mm 1.35 lbs
CRF-CS40409 4" 4.56" 115.8mm 0.091" 2.3mm 4.19" 106.4mm 1.57 lbs
CRF-CS40410 4" 4.63" 117.6mm 0.091" 2.3mm 4.19" 106.4mm 1.59 lbs
CRF-CS40411 4" 4.68" 118.9mm 0.091" 2.3mm 4.19" 106.4mm 1.61 lbs
CRF-CS40412 4" 4.75" 120.7mm 0.091" 2.3mm 4.19" 106.4mm 1.63 lbs
CRF-CS40413 4" 4.81" 122.2mm 0.091" 2.3mm 4.19" 106.4mm 1.65 lbs
CRF-CS40414 4" 4.88" 124.0mm 0.091" 2.3mm 4.19" 106.4mm 1.67 lbs
CRF-CS40500 4" 5.00" 127.0mm 0.091" 2.3mm 4.19" 106.4mm 1.72 lbs
CRF-CS40501 4" 5.06" 128.5mm 0.091" 2.3mm 4.19" 106.4mm 1.74 lbs
CRF-CS60608 6" 6.50" 165.1mm 0.118" 3.0mm 5.67" 144.1mm 3.97 lbs
CRF-CS60610 6" 6.63" 168.4mm 0.118" 3.0mm 5.67" 144.1mm 4.02 lbs
CRF-CS60612 6" 6.75" 171.5mm 0.118" 3.0mm 5.67" 144.1mm 4.10 lbs
CRF-CS60614 6" 6.88" 174.8mm 0.118" 3.0mm 5.67" 144.1mm 4.17 lbs
CRF-CS60700 6" 7.00" 177.8mm 0.118" 3.0mm 5.67" 144.1mm 4.24 lbs
CRF-CS60702 6" 7.13" 181.1mm 0.118" 3.0mm 5.67" 144.1mm 4.31 lbs
CRF-CS60704 6" 7.25" 184.2mm 0.118" 3.0mm 5.67" 144.1mm 4.39 lbs
CRF-CS60706 6" 7.38" 187.5mm 0.118" 3.0mm 5.67" 144.1mm 4.47 lbs
