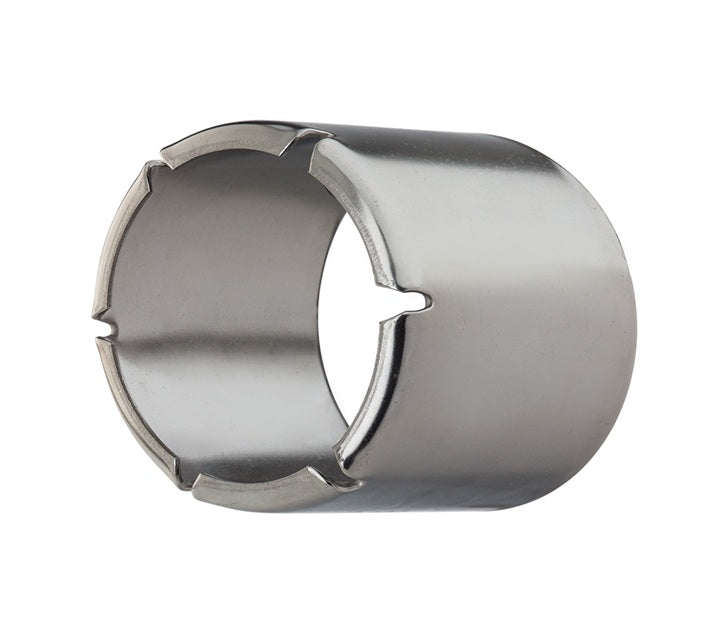

CRF-SS20210 KuriCrimp™ by Kuriyama | CRF-SS Series | Crimp Ferrule | 2" Hose ID | 2.62" Ferrule ID | 304 Stainless Steel

CRF-SS20210 KuriCrimp™ by Kuriyama | CRF-SS Series | Crimp Ferrule | 2" Hose ID | 2.62" Ferrule ID | 304 Stainless Steel

Save $7.60 Save $7.60
$21.55
$21.55 - $21.55
$21.55
$13.95
$13.95 - $13.95
$13.95

Kuriyama of America Inc.
Sanitary Kuri-Crimp™ Crimp Ferrule
Specifications for Variant SKU: CRF-SS20210 Kuriyama
Brand: Kuri-Crimp
Series: CRF-SS Series
Material(s): 304 Stainless Steel

What are the Features?

  • Designed for use with TCS-SS, FBS-SS, MBS-SS, FILS-SS, MILS-SS and TES-SS series fittings.
Part Number Hose ID Ferrule ID Wall Thickness Length Weight
Each
(in) (in) (mm) (in) (mm) (lbs)
CRF-SS10108 1" 1.50" 38.1mm 0.059" 1.5mm 2.29" 58.2mm 0.20 lbs
CRF-SS10109 1" 1.56" 39.6mm 0.059" 1.5mm 2.29" 58.2mm 0.21 lbs
CRF-SS10110 1" 1.63" 41.4mm 0.059" 1.5mm 2.29" 58.2mm 0.21 lbs
CRF-SS10111 1" 1.69" 42.9mm 0.059" 1.5mm 2.29" 58.2mm 0.23 lbs
CRF-SS10112 1" 1.75" 44.5mm 0.059" 1.5mm 2.29" 58.2mm 0.23 lbs
CRF-SS10113 1" 1.81" 46.0mm 0.059" 1.5mm 2.29" 58.2mm 0.24 lbs
CRF-SS15200 1-1/2" 2.00" 50.8mm 0.059" 1.5mm 2.36" 60.0mm 0.27 lbs
CRF-SS15202 1-1/2" 2.12" 53.8mm 0.059" 1.5mm 2.36" 60.0mm 0.29 lbs
CRF-SS15204 1-1/2" 2.25" 57.2mm 0.059" 1.5mm 2.36" 60.0mm 0.29 lbs
CRF-SS15206 1-1/2" 2.39" 60.7mm 0.059" 1.5mm 2.36" 60.0mm 0.30 lbs
CRF-SS20208 1-1/2" 2.50" 63.5mm 0.059" 1.5mm 2.36" 60.0mm 0.35 lbs
CRF-SS20209 2" 2.56" 65.0mm 0.059" 1.5mm 2.79" 70.9mm 0.40 lbs
CRF-SS20210 2" 2.62" 66.5mm 0.059" 1.5mm 2.79" 70.9mm 0.43 lbs
CRF-SS20211 2" 2.68" 68.1mm 0.059" 1.5mm 2.79" 70.9mm 0.40 lbs
CRF-SS20213 2" 2.81" 71.4mm 0.059" 1.5mm 2.79" 70.9mm 0.44 lbs
CRF-SS20215 2" 2.94" 74.7mm 0.059" 1.5mm 2.79" 70.9mm 0.46 lbs
CRF-SS25302 2-1/2" 3.12" 71.4mm 0.059" 1.5mm 3.11" 79.0mm 0.56 lbs
CRF-SS25304 2-1/2" 3.25" 74.7mm 0.059" 1.5mm 3.11" 79.0mm 0.58 lbs
CRF-SS25306 2-1/2" 3.39" 86.1mm 0.059" 1.5mm 3.11" 79.0mm 0.60 lbs
CRF-SS25308 2-1/2" 3.50" 88.9mm 0.059" 1.5mm 3.11" 79.0mm 0.62 lbs
CRF-SS30309 3" 3.56" 86.1mm 0.091" 2.3mm 3.94" 100.1mm 1.27 lbs
CRF-SS30310 3" 3.62" 88.9mm 0.091" 2.3mm 3.94" 100.1mm 1.29 lbs
CRF-SS30312 3" 3.75" 95.3mm 0.091" 2.3mm 3.94" 100.1mm 1.31 lbs
CRF-SS30313 3" 3.81" 96.8mm 0.091" 2.3mm 3.94" 100.1mm 1.33 lbs
CRF-SS30315 3" 3.94" 100.1mm 0.091" 2.3mm 3.94" 100.1mm 1.36 lbs
CRF-SS30400 3" 4.00" 101.6mm 0.091" 2.3mm 3.94" 100.1mm 1.40 lbs
CRF-SS40409 4" 4.56" 115.8mm 0.091" 2.3mm 4.19" 106.4mm 1.57 lbs
CRF-SS40410 4" 4.63" 117.6mm 0.091" 2.3mm 4.19" 106.4mm 1.59 lbs
CRF-SS40411 4" 4.68" 118.9mm 0.091" 2.3mm 4.19" 106.4mm 1.74 lbs
CRF-SS40412 4" 4.75" 120.7mm 0.091" 2.3mm 4.19" 106.4mm 1.76 lbs
CRF-SS40413 4" 4.81" 122.2mm 0.091" 2.3mm 4.19" 106.4mm 1.78 lbs
CRF-SS40414 4" 4.88" 124.0mm 0.091" 2.3mm 4.19" 106.4mm 1.82 lbs
CRF-SS40500 4" 5.00" 127.0mm 0.091" 2.3mm 4.19" 106.4mm 1.86 lbs
CRF-SS40501 4" 5.06" 128.5mm 0.091" 2.3mm 4.19" 106.4mm 1.89 lbs

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
