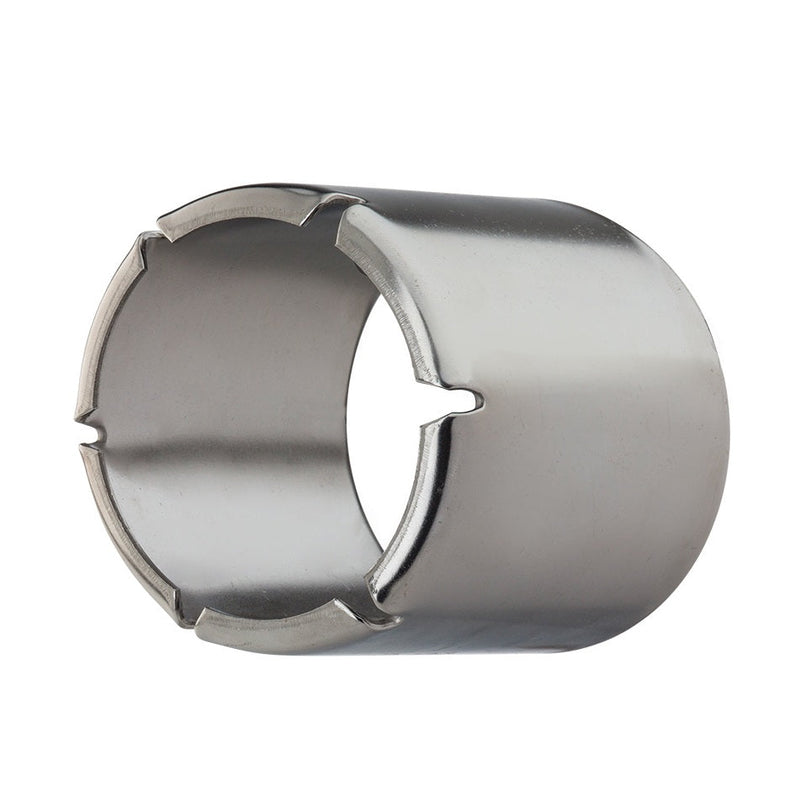

CRFHD-CS40502 Kuri-Krimp™ by Kuriyama | CRFHD-CS Series | Heavy Duty Crimp Ferrule | 4" Hose ID | 5.13" Ferrule ID | Plated Carbon Steel

Save $11.18

$28.48

$28.48 - $28.48

$28.48

$17.30

$17.30 - $17.30

$17.30

Kuriyama of America Inc.
CRFHD-CS Series | Heavy Duty Crimp Ferrule | Plated Carbon Steel

Specifications for Variant SKU: CRFHD-CS40502 Kuriyama
Series:	CRFHD-CS Series
Material(s):	Plated Carbon Steel

Camlocks by Kuriyama
KOA | Speciality | CRFHD-CS Series | Carbon Steel Plated Heavy Duty Crimp Ferrules

Hose Properties:

Part Number	Hose ID (in)	Ferrule ID (in)	Ferrule ID (mm)	Wall Thickness (in)	Wall Thickness (mm)	Length (in)	Length (mm)	Weight Each (lbs)	Standard Carton
CRFHD-CS40411	4"	4.69"	119.1mm	0.12"	3mm	4.19"	106.4mm	2.18 lbs	30
CRFHD-CS40413	4"	4.81"	122.2mm	0.12"	3mm	4.19"	106.4mm	2.28 lbs	30
CRFHD-CS40500	4"	5.00"	127.0mm	0.12"	3mm	4.19"	106.4mm	2.39 lbs	30
CRFHD-CS40501	4"	5.06"	128.5mm	0.12"	3mm	4.19"	106.4mm	2.45 lbs	30
CRFHD-CS40502	4"	5.13"	130.3mm	0.12"	3mm	4.19"	106.4mm	2.48 lbs	30
CRFHD-CS40503	4"	5.19"	131.8mm	0.12"	3mm	4.19"	106.4mm	2.52 lbs	30
CRFHD-CS40504	4"	5.25"	133.4mm	0.12"	3mm	4.19"	106.4mm	2.57 lbs	30
