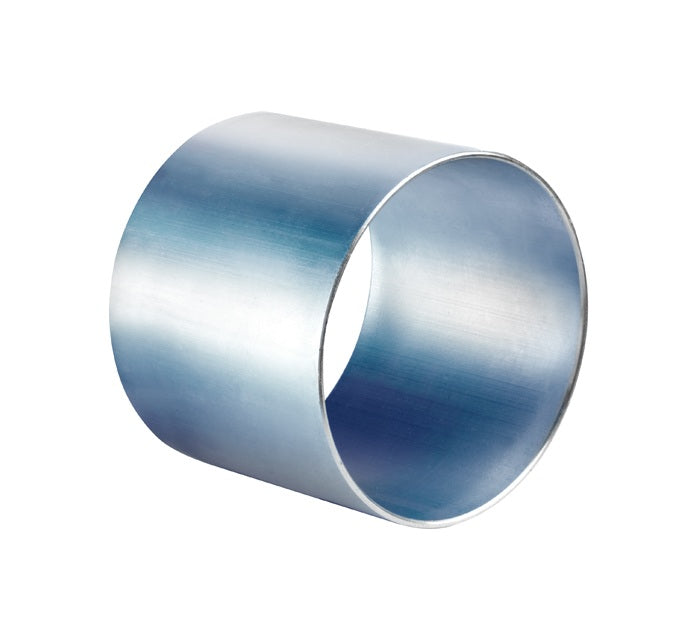

CRS-AL30400 by Kuriyama | CRS-AL Series | Crimp Sleeve | 4.00" Sleeve ID | 0.079" Wall Thickness | Aluminum

Save $7.70

$21.99

$21.99 - $21.99

$21.99

$14.29

$14.29 - $14.29

$14.29

Kuriyama of America Inc.
CRS-AL Series | Crimp Sleeve | Aluminum

Sleeves designed for use with a variety of fittings and couplings.

Specifications for Variant SKU: CRS-AL30400 Kuriyama
Series:	CRS-AL Series
Material(s):	Aluminum

What are the Features?

Sleeves designed for use with a variety of fittings and couplings.

What are the Materials?

Aluminum.

Part Number	Sleeve ID		Wall Thickness		Length		Weight Each
Part Number	(in)	(mm)	(in)	(mm)	(in)	(mm)	(lbs)
CRS-AL20209	2.56"	65.00mm	0.079"	2.00mm	2.79"	70.9mm	0.18 lbs
CRS-AL20210	2.63"	66.80mm	0.079"	2.00mm	2.79"	70.9mm	0.18 lbs
CRS-AL20211	2.69"	68.30mm	0.079"	2.00mm	2.79"	70.9mm	0.19 lbs
CRS-AL20213	2.81"	71.40mm	0.079"	2.00mm	2.79"	70.9mm	0.20 lbs
CRS-AL20215	2.94"	74.70mm	0.079"	2.00mm	2.79"	70.9mm	0.21 lbs
CRS-AL30310	3.63"	92.20mm	0.079"	2.00mm	3.94"	100.1mm	0.35 lbs
CRS-AL30312	3.75"	95.30mm	0.079"	2.00mm	3.94"	100.1mm	0.36 lbs
CRS-AL30313	3.81"	96.80mm	0.079"	2.00mm	3.94"	100.1mm	0.37 lbs
CRS-AL30400	4.00"	101.60mm	0.079"	2.00mm	3.94"	100.1mm	0.39 lbs
CRS-AL40411	4.69"	119.10mm	0.098"	2.50mm	4.19"	106.4mm	0.60 lbs
CRS-AL40412	4.75"	120.70mm	0.098"	2.50mm	4.19"	106.4mm	0.61 lbs
CRS-AL40413	4.81"	122.20mm	0.098"	2.50mm	4.19"	106.4mm	0.62 lbs
CRS-AL40500	5.00"	127.00mm	0.098"	2.50mm	4.19"	106.4mm	0.64 lbs

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
