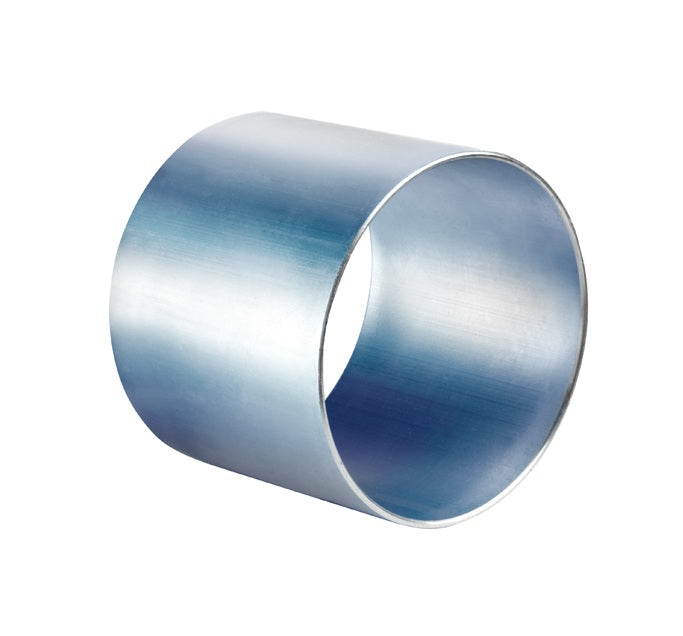

CRS-AL40500 by Kuriyama | CRS-AL Series | Crimp Sleeve | 5.00" Sleeve ID | 0.098" Wall Thickness | Aluminum

CRS-AL40500 by Kuriyama | CRS-AL Series | Crimp Sleeve | 5.00" Sleeve ID | 0.098" Wall Thickness | Aluminum

Save $9.06 Save $9.06
$28.52
$28.52 - $28.52
$28.52
$19.46
$19.46 - $19.46
$19.46

Kuriyama of America Inc.
CRS-AL Series | Crimp Sleeve | Aluminum

Sleeves designed for use with a variety of fittings and couplings.
Specifications for Variant SKU: CRS-AL40500 Kuriyama
Series: CRS-AL Series
Material(s): Aluminum

What are the Features?

  • Sleeves designed for use with a variety of fittings and couplings.

What are the Materials?

  • Aluminum.
Part Number Sleeve ID Wall Thickness Length Weight Each
(in) (mm) (in) (mm) (in) (mm) (lbs)
CRS-AL20209 2.56" 65.00mm 0.079" 2.00mm 2.79" 70.9mm 0.18 lbs
CRS-AL20210 2.63" 66.80mm 0.079" 2.00mm 2.79" 70.9mm 0.18 lbs
CRS-AL20211 2.69" 68.30mm 0.079" 2.00mm 2.79" 70.9mm 0.19 lbs
CRS-AL20213 2.81" 71.40mm 0.079" 2.00mm 2.79" 70.9mm 0.20 lbs
CRS-AL20215 2.94" 74.70mm 0.079" 2.00mm 2.79" 70.9mm 0.21 lbs
CRS-AL30310 3.63" 92.20mm 0.079" 2.00mm 3.94" 100.1mm 0.35 lbs
CRS-AL30312 3.75" 95.30mm 0.079" 2.00mm 3.94" 100.1mm 0.36 lbs
CRS-AL30313 3.81" 96.80mm 0.079" 2.00mm 3.94" 100.1mm 0.37 lbs
CRS-AL30400 4.00" 101.60mm 0.079" 2.00mm 3.94" 100.1mm 0.39 lbs
CRS-AL40411 4.69" 119.10mm 0.098" 2.50mm 4.19" 106.4mm 0.60 lbs
CRS-AL40412 4.75" 120.70mm 0.098" 2.50mm 4.19" 106.4mm 0.61 lbs
CRS-AL40413 4.81" 122.20mm 0.098" 2.50mm 4.19" 106.4mm 0.62 lbs
CRS-AL40500 5.00" 127.00mm 0.098" 2.50mm 4.19" 106.4mm 0.64 lbs

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
