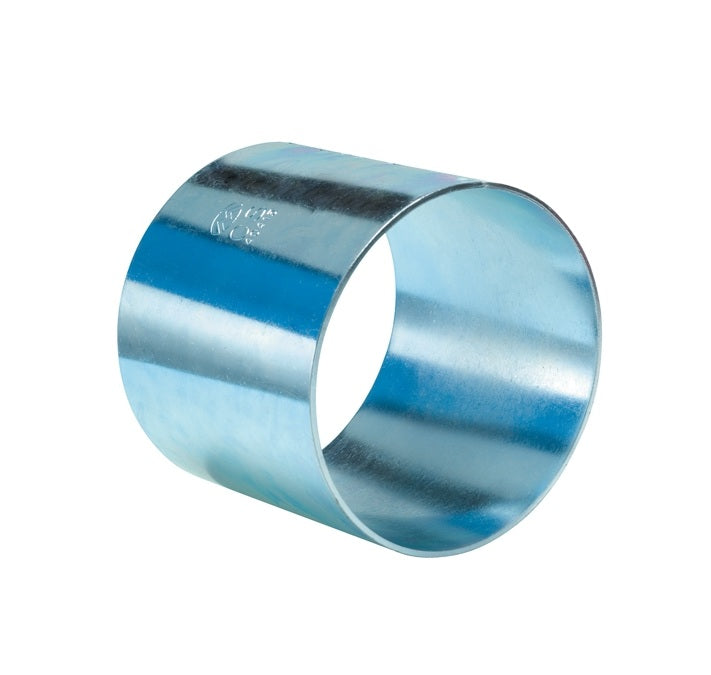

CRS-CS15200 by Kuriyama | CRF-CS Series | Crimp Sleeve | 2.00" Sleeve ID | 0.059" Wall Thickness | Zinc Plated Steel

CRS-CS15200 by Kuriyama | CRF-CS Series | Crimp Sleeve | 2.00" Sleeve ID | 0.059" Wall Thickness | Zinc Plated Steel

Save $5.11 Save $5.11
$8.52
$8.52 - $8.52
$8.52
$3.41
$3.41 - $3.41
$3.41

Kuriyama of America Inc.
CRS-CS Series | Crimp Sleeve | Zinc Plated Steel

Sleeves designed for use with a variety of fittings and couplings.
Specifications for Variant SKU: CRS-CS15200 Kuriyama
Series: CRF-CS Series
Material(s): Zinc Plated Steel

What are the Features?

  • Sleeves designed for use with a variety of fittings and couplings.

What are the Materials?

  • Zinc plated steel: AISI 1008
Part Number Sleeve ID Wall Thickness Length Weight Each
(in) (mm) (in) (mm) (in) (mm) (lbs)
CRS-CS10106 1.38" 35.00mm 0.059" 1.5mm 2.29" 58.2mm 0.17 lbs
CRS-CS10108 1.50" 39.60mm 0.059" 1.5mm 2.29" 58.2mm 0.19 lbs
CRS-CS10109 1.56" 41.40mm 0.059" 1.5mm 2.29" 58.2mm 0.20 lbs
CRS-CS10111 1.69" 42.90mm 0.059" 1.5mm 2.29" 58.20mm 0.22 lbs
CRS-CS15113 1.81" 44.50mm 0.059" 1.5mm 2.36" 60.0mm 0.25 lbs
CRS-CS15200 2.00" 46.00mm 0.059" 1.5mm 2.36" 60.0mm 0.25 lbs
CRS-CS15202 2.12" 53.80mm 0.059" 1.5mm 2.36" 60.0mm 0.26 lbs
CRS-CS15204 2.25" 57.20mm 0.059" 1.5mm 2.36" 60.0mm 0.27 lbs
CRS-CS15206 2.39" 60.70mm 0.059" 1.5mm 2.36" 60.0mm 0.28 lbs
CRS-CS20207 2.44" 62.0mm 0.059" 1.5mm 2.79" 70.90mm 0.34 lbs
CRS-CS20209 2.56" 65.0mm 0.059" 1.5mm 2.79" 70.9mm 0.37 lbs
CRS-CS20210 2.62" 66.5mm 0.059" 1.5mm 2.79" 70.9mm 0.40 lbs
CRS-CS20211 2.68" 68.1mm 0.059" 1.5mm 2.79" 70.9mm 0.40 lbs
CRS-CS20213 2.81" 71.4mm 0.059" 1.5mm 2.79" 70.9mm 0.42 lbs
CRS-CS20215 2.94" 74.70mm 0.059" 1.5mm 2.79" 70.9mm 0.44 lbs
CRS-CS25300 3.00" 76.20mm 0.059" 1.5mm 3.11" 79.00mm 0.50 lbs
CRS-CS25302 3.12" 71.4mm 0.059" 1.5mm 3.11" 79.0mm 0.52 lbs
CRS-CS25304 3.25" 74.70mm 0.059" 1.5mm 3.11" 79.0mm 0.54 lbs
CRS-CS25306 3.39" 86.1mm 0.059" 1.5mm 3.11" 79.0mm 0.56 lbs
CRS-CS25308 3.50" 88.9mm 0.059" 1.5mm 3.11" 79.0mm 0.58 lbs
CRS-CS30310 3.62" 88.9mm 0.091" 2.3mm 3.94" 100.1mm 1.19 lbs
CRS-CS30312 3.75" 95.3mm 0.091" 2.3mm 3.94" 100.1mm 1.21 lbs
CRS-CS30313 3.81" 96.8mm 0.091" 2.3mm 3.94" 100.1mm 1.23 lbs
CRS-CS30314 3.88" 98.60mm 0.091" 2.3mm 3.94" 100.1mm 1.25 lbs
CRS-CS30400 4.00" 101.6mm 0.091" 2.3mm 3.94" 100.1mm 1.30 lbs
CRS-CS40404 4.25" 108.0mm 0.091" 2.3mm 4.19" 106.40mm 1.54 lbs
CRS-CS40406 4.38" 111.30mm 0.091" 2.3mm 4.19" 106.4mm 1.56 lbs
CRS-CS40408 4.50" 114.30mm 0.091" 2.3mm 4.19" 106.4mm 1.58 lbs
CRS-CS40411 4.68" 118.9mm 0.091" 2.3mm 4.19" 106.4mm 1.61 lbs
CRS-CS40412 4.75" 120.7mm 0.091" 2.3mm 4.19" 106.4mm 1.63 lbs
CRS-CS40413 4.81" 122.2mm 0.091" 2.3mm 4.19" 106.4mm 1.65 lbs
CRS-CS40415 4.94" 125.50mm 0.091" 2.3mm 4.19" 106.4mm 1.68 lbs
CRS-CS40500 5.00" 127.0mm 0.091" 2.3mm 4.19" 106.4mm 1.72 lbs
CRS-CS50509 5.56" 141.20mm 0.118" 3.0mm 4.57" 116.10mm 2.58 lbs
CRS-CS50512 5.75" 146.00mm 0.118" 3.0mm 4.57" 116.10mm 2.65 lbs
CRS-CS50515 5.94" 150.90mm 0.118" 3.0mm 4.57" 116.10mm 2.74 lbs
CRS-CS60604 6.25" 158.80mm 0.118" 3.0mm 5.67" 144.00mm 3.81 lbs
CRS-CS60606 6.38" 162.00mm 0.118" 3.0mm 5.67" 144.00mm 3.88 lbs
CRS-CS60608 6.50" 165.10mm 0.118" 3.0mm 5.67" 144.00mm 3.95 lbs
CRS-CS60610 6.63" 168.40mm 0.118" 3.0mm 5.67" 144.00mm 4.02 lbs
CRS-CS60612 6.75" 171.50mm 0.118" 3.0mm 5.67" 144.00mm 4.10 lbs
CRS-CS60614 6.88" 174.80mm 0.118" 3.0mm 5.67" 144.00mm 4.17 lbs
CRS-CS60700 7.00" 177.80mm 0.118" 3.0mm 5.67" 144.00mm 4.24 lbs
CRS-CS60704 7.25" 184.20mm 0.118" 3.0mm 5.67" 144.00mm 4.39 lbs
CRS-CS60706 7.38" 187.50mm 0.118" 3.0mm 5.67" 144.00mm 4.47 lbs
CRS-CS80808 8.50" 215.90mm 0.118" 3.0mm 6.50" 165.10mm 5.95 lbs
CRS-CS80812 8.75" 222.30mm 0.118" 3.0mm 6.50" 165.10mm 6.06 lbs
CRS-CS80814 8.88" 225.60mm 0.118" 3.0mm 6.50" 165.10mm 6.15 lbs
CRS-CS80900 9.00" 228.60mm 0.118" 3.0mm 6.50" 165.10mm 6.23 lbs
CRS-CS80902 9.13" 231.90mm 0.118" 3.0mm 6.50" 165.10mm 6.32 lbs
CRS-CS80904 9.25" 235.00mm 0.118" 3.0mm 6.50" 165.10mm 6.41 lbs
CRS-CS80908 9.50" 241.30mm 0.118" 3.0mm 6.50" 165.10mm 6.58 lbs
CRS-CS1001008 10.50" 266.70mm 0.120" 3.0mm 6.50" 165.10mm 7.24 lbs
CRS-CS1001012 10.75" 273.00mm 0.120" 3.0mm 6.50" 165.10mm 7.42 lbs
CRS-CS1001100 11.00" 279.40mm 0.120" 3.0mm 6.50" 165.10mm 7.60 lbs
CRS-CS1001104 11.25" 285.80mm 0.120" 3.0mm 6.50" 165.10mm 7.78 lbs
CRS-CS1201208 12.50" 317.50mm 0.120" 3.0mm 9.00" 228.60mm 11.95 lbs
CRS-CS1201212 12.75" 323.90mm 0.120" 3.0mm 9.00" 228.60mm 12.18 lbs
CRS-CS1201300 13.00" 330.20mm 0.120" 3.0mm 9.00" 228.60mm 12.40 lbs
CRS-CS1201304 13.25" 336.60mm 0.120" 3.0mm 9.00" 228.60mm 12.64 lbs

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
