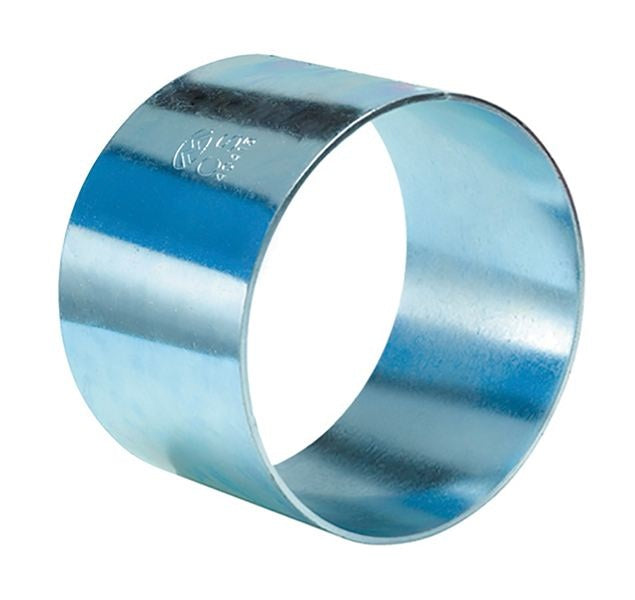

CRS-CS30306S by Kuriyama | CRS-CS Series | Short Crimp Sleeve | 3.38" Sleeve ID | 0.091" Wall Thickness | Zinc Plated Steel

CRS-CS30306S by Kuriyama | CRS-CS Series | Short Crimp Sleeve | 3.38" Sleeve ID | 0.091" Wall Thickness | Zinc Plated Steel

Save $6.70 Save $6.70
$14.63
$14.63 - $14.63
$14.63
$7.93
$7.93 - $7.93
$7.93

Kuriyama of America Inc.
CRS-CS Series | Short Crimp Sleeve | Zinc Plated Steel

Sleeves designed for use with a variety of fittings and couplings.
Specifications for Variant SKU: CRS-CS30306S Kuriyama
Series: CRS-CS Series
Material(s): Zinc Plated Steel
Special Properties: Short

What are the Features?

  • Sleeves designed for use with a variety of fittings and couplings.

What are the Materials?

  • Zinc Plated Steel: AISI 1008.
Part Number Sleeve ID Wall Thickness Length Weight Each
(in) (mm) (in) (mm) (in) (mm) (lbs)
CRS-CS13112S 1.63" 41.4mm 0.059" 1.5mm 1.26" 32.0mm 0.12 lbs
CRS-CS13113S 1.81" 46.0mm 0.059" 1.5mm 1.26" 32.0mm 0.12 lbs
CRS-CS13114S 1.88" 47.8mm 0.059" 1.5mm 1.26" 32.0mm 0.13 lbs
CRS-CS13115S 1.94" 49.3mm 0.059" 1.5mm 1.26" 32.0mm 0.15 lbs
CRS-CS15200S 2.00" 50.8mm 0.059" 1.5mm 1.46" 37.1mm 0.16 lbs
CRS-CS15202S 2.13" 54.1mm 0.059" 1.5mm 1.46" 37.1mm 0.17 lbs
CRS-CS15203S 2.19" 55.6mm 0.059" 1.5mm 1.46" 37.1mm 0.17 lbs
CRS-CS20204S 2.25" 57.2mm 0.059" 1.5mm 1.81" 46.0mm 0.22 lbs
CRS-CS20206S 2.38" 60.5mm 0.059" 1.5mm 1.81" 46.0mm 0.23 lbs
CRS-CS20207S 2.44" 62.0mm 0.059" 1.5mm 1.81" 46.0mm 0.23 lbs
CRS-CS20208S 2.50" 63.5mm 0.059" 1.5mm 1.81" 46.0mm 0.25 lbs
CRS-CS20209S 2.56" 65.0mm 0.059" 1.5mm 1.81" 46.0mm 0.25 lbs
CRS-CS20210S 2.63" 66.8mm 0.059" 1.5mm 1.81" 46.0mm 0.26 lbs
CRS-CS20212S 2.75" 69.9mm 0.059" 1.5mm 1.81" 46.0mm 0.27 lbs
CRS-CS25214S 2.88" 73.2mm 0.059" 1.5mm 2.28" 57.9mm 0.35 lbs
CRS-CS25300S 3.00" 76.2mm 0.059" 1.5mm 2.28" 57.9mm 0.37 lbs
CRS-CS25302S 3.13" 79.5mm 0.059" 1.5mm 2.28" 57.9mm 0.37 lbs
CRS-CS25304S 3.25" 82.6mm 0.059" 1.5mm 2.28" 57.9mm 0.38 lbs
CRS-CS30306S 3.38" 85.9mm 0.091" 2.3mm 2.44" 62.0mm 0.68 lbs
CRS-CS30307S 3.44" 87.4mm 0.091" 2.3mm 2.44" 62.0mm 0.69 lbs
CRS-CS30308S 3.50" 88.9mm 0.091" 2.3mm 2.44" 62.0mm 0.71 lbs
CRS-CS30309S 3.56" 90.4mm 0.091" 2.3mm 2.44" 62.0mm 0.72 lbs
CRS-CS30310S 3.63" 92.2mm 0.091" 2.3mm 2.44" 62.0mm 0.73 lbs
CRS-CS30311S 3.69" 93.7mm 0.091" 2.3mm 2.44" 62.0mm 0.73 lbs
CRS-CS30313S 3.81" 96.8mm 0.091" 2.3mm 2.44" 62.0mm 0.75 lbs
CRS-CS30400S 4.00" 101.6mm 0.091" 2.3mm 2.44" 62.0mm 0.80 lbs
CRS-CS40404S 4.25" 108.0mm 0.091" 2.3mm 3.31" 84.1mm 1.16 lbs
CRS-CS40406S 4.38" 111.3mm 0.091" 2.3mm 3.31" 84.1mm 1.19 lbs
CRS-CS40408S 4.50" 114.3mm 0.091" 2.3mm 3.31" 84.1mm 1.22 lbs
CRS-CS40409S 4.56" 115.8mm 0.091" 2.3mm 3.31" 84.1mm 1.24 lbs
CRS-CS40410S 4.63" 117.6mm 0.091" 2.3mm 3.31" 84.1mm 1.27 lbs
CRS-CS40411S 4.69" 119.1mm 0.091" 2.3mm 3.31" 84.1mm 1.28 lbs
CRS-CS40412S 4.75" 120.7mm 0.091" 2.3mm 3.31" 84.1mm 1.29 lbs
CRS-CS40413S 4.81" 122.2mm 0.091" 2.3mm 3.31" 84.1mm 1.31 lbs
