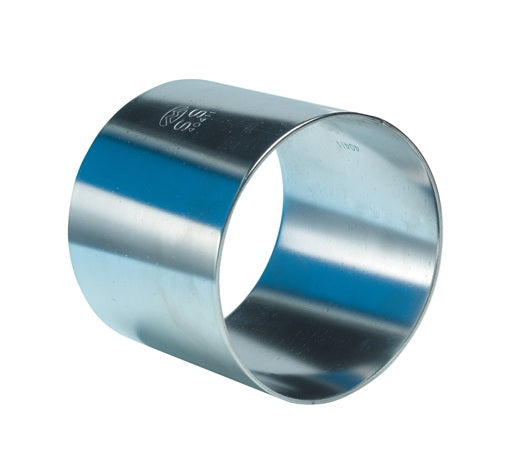

CRS-SS20209 by Kuriyama | CRS-SS Series | Crimp Sleeve | 2.56" Sleeve ID | 0.059" Wall Thickness | 304 Stainless Steel

CRS-SS20209 by Kuriyama | CRS-SS Series | Crimp Sleeve | 2.56" Sleeve ID | 0.059" Wall Thickness | 304 Stainless Steel

Save $6.62 Save $6.62
$16.15
$16.15 - $16.15
$16.15
$9.53
$9.53 - $9.53
$9.53

Kuriyama of America Inc.
CRS-SS Series | Crimp Sleeve | 304 Stainless Steel

Sleeves designed for use with a variety of fittings and couplings.
Specifications for Variant SKU: CRS-SS20209 Kuriyama
Series: CRS-SS Series
Material(s): 304 Stainless Steel

What are the Features?

  • Sleeves designed for use with a variety of fittings and couplings.

What are the Materials?

  • 304 Stainless Steel: ASTM A666 304 SS.
Part Number Sleeve ID Wall Thickness Length Weight Each
(in) (mm) (in) (mm) (in) (mm) (lbs)
CRS-SS10106 1.38" 35.00mm 0.059" 1.5mm 2.29" 58.2mm 0.17 lbs
CRS-SS10108 1.50" 39.6mm 0.059" 1.5mm 2.29" 58.2mm 0.20 lbs
CRS-SS10109 1.56" 41.4mm 0.059" 1.5mm 2.29" 58.2mm 0.21 lbs
CRS-SS10111 1.69" 42.9mm 0.059" 1.5mm 2.29" 58.2mm 0.23 lbs
CRS-SS15113 1.81" 44.5mm 0.059" 1.5mm 2.29" 58.2mm 0.25 lbs
CRS-SS15200 2.00" 46.0mm 0.059" 1.5mm 2.36" 60.0mm 0.27 lbs
CRS-SS15202 2.12" 53.8mm 0.059" 1.5mm 2.36" 60.0mm 0.29 lbs
CRS-SS15204 2.25" 57.2mm 0.059" 1.5mm 2.36" 60.0mm 0.29 lbs
CRS-SS15206 2.39" 60.7mm 0.059" 1.5mm 2.36" 60.0mm 0.30 lbs
CRS-SS15207 2.44" 62.0mm 0.059" 1.5mm 2.79" 70.9mm 0.37 lbs
CRS-SS15209 2.56" 65.0mm 0.059" 1.5mm 2.79" 70.9mm 0.40 lbs
CRS-SS20210 2.62" 66.5mm 0.059" 1.5mm 2.79" 70.9mm 0.43 lbs
CRS-SS20211 2.68" 68.1mm 0.059" 1.5mm 2.76" 70.9mm 0.43 lbs
CRS-SS20213 2.81" 71.4mm 0.059" 1.5mm 2.79" 70.9mm 0.44 lbs
CRS-SS20215 2.94" 74.7mm 0.059" 1.5mm 2.79" 70.9mm 0.46 lbs
CRS-SS25302 3.12" 71.4mm 0.059" 1.5mm 3.11" 79.0mm 0.56 lbs
CRS-SS25304 3.25" 74.7mm 0.059" 1.5mm 3.11" 79.0mm 0.58 lbs
CRS-SS25306 3.39" 86.1mm 0.059" 1.5mm 3.11" 79.0mm 0.60 lbs
CRS-SS25308 3.50" 88.9mm 0.059" 1.5mm 3.11" 79.0mm 0.62 lbs
CRS-SS30310 3.62" 88.9mm 0.091" 2.3mm 3.94" 100.1mm 1.29 lbs
CRS-SS30312 3.75" 95.3mm 0.091" 2.3mm 3.94" 100.1mm 1.31 lbs
CRS-SS30313 3.81" 96.8mm 0.091" 2.3mm 3.94" 100.1mm 1.33 lbs
CRS-SS30314 3.88" 98.6mm 0.091" 2.3mm 3.94" 100.1mm 1.35 lbs
CRS-SS30400 4.00" 101.6mm 0.091" 2.3mm 3.94" 100.1mm 1.40 lbs
CRS-SS40404 4.25" 108.0mm 0.091" 2.3mm 4.19" 106.4mm 1.60 lbs
CRS-SS40408 4.50" 114.3mm 0.091" 2.3mm 4.19" 106.4mm 1.68 lbs
CRS-SS40411 4.68" 118.9mm 0.091" 2.3mm 4.19" 106.4mm 1.74 lbs
CRS-SS40412 4.75" 120.7mm 0.091" 2.3mm 4.19" 106.4mm 1.76 lbs
CRS-SS40413 4.81" 122.2mm 0.091" 2.3mm 4.19" 106.4mm 1.78 lbs
CRS-SS40415 4.94" 125.5mm 0.091" 2.3mm 4.19" 106.4mm 1.82 lbs
CRS-SS40500 5.00" 127.0mm 0.091" 2.3mm 4.19" 106.4mm 1.86 lbs
CRS-SS60604 6.25" 158.8mm 0.118" 3.0mm 5.67" 144.0mm 3.81 lbs
CRS-SS60606 6.38" 162.0mm 0.118" 3.0mm 5.67" 144.0mm 3.88 lbs
CRS-SS60608 6.50" 165.1mm 0.118" 3.0mm 5.67" 144.0mm 3.95 lbs
CRS-SS60610 6.63" 168.4mm 0.118" 3.0mm 5.67" 144.0mm 4.32 lbs
CRS-SS60612 6.75" 171.5mm 0.118" 3.0mm 5.67" 144.0mm 4.41 lbs
CRS-SS60614 6.88" 174.8mm 0.118" 3.0mm 5.67" 144.0mm 4.48 lbs
CRS-SS60700 7.00" 177.8mm 0.118" 3.0mm 5.67" 144.0mm 4.56 lbs
CRS-SS60704 7.25" 184.2mm 0.118" 3.0mm 5.67" 144.0mm 4.72 lbs
CRS-SS60706 7.38" 187.5mm 0.118" 3.0mm 5.67" 144.0mm 4.81 lbs

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
