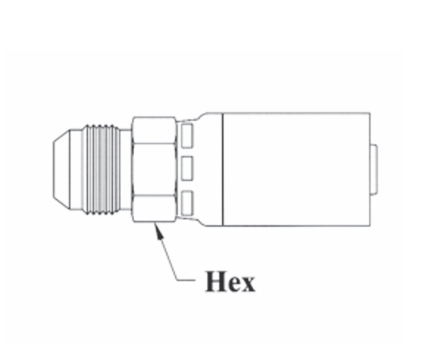

CS08-12X10 Couplamatic VARI-CRIMP Coupling - JIC 37° - Male Solid - 3/4" Hose ID - 7/8x14 Thread (Old Part Number: 1218V)

CS08-12X10 by Couplamatic | VARI-CRIMP Coupling | 3/4" Hose ID x 7/8x14 Thread Male Solid JIC 37° | Straight | Trivalent Zinc Plating | Replaces: 1218V

Save $1.51 Save $1.51
$13.56
$13.56 - $13.56
$13.56
$12.05
$12.05 - $12.05
$12.05

Couplamatic Systems Inc.
Vari-Crimp Couplings - JIC 37° - Male Solid
Specifications for Variant SKU: CS08-12X10 Couplamatic
Series: VARI-CRIMP Series
Shape (Orientation): Straight
Ends Configuration: 5/8in Male JIC, 3/4in Hose Barb
Material(s): Steel
Compatible with the following Series: 56MB-1 Series  |   57MB-2 Series  |   56MB-2 Series  |   HPI Series  |   HPIII Series  |   2SN Series  |   R16 Series  |   DH16 Series  |   DHEX16 Series  |   R17 Series  |   R17R Series  |   WDH17 Series  |   3319A Series
Description:
  • The Vari-Crimp coupling is compatible with virtually all Crimp Machines. Trivalent Zinc Plating.
Part Number Hose ID Thread Size Tube OD Hex Size Previous Part Number Cross Reference Part Numbers
Dayco HY Parker HY Weatherhead U
CS08-4X4 1/4" 7/16x20 1/4" 9/16" 418V HY04-04MJ 103HY-4-4 04U-504
CS08-4X5 1/4" 1/2x20 5/16" 9/16" 421V HY04-05MJ 103HY-5-4 04U-505
CS08-4X6 1/4" 9/16x18 3/8" 5/8" 430V HY04-06MJ 103HY-6-4 04U-506
CS08-6X6 3/8" 9/16x18 3/8" 11/16" 618V HY06-06MJ 103HY-6-6 06U-506
CS08-6X8 3/8" 3/4x16 1/2" 3/4" 621V HY06-08MJ 103HY-8-6 06U-508
CS08-6X10 3/8" 7/8x14 5/8" 7/8" 669V HY06-10MJ 103HY-10-6 06U-510
CS08-8X8 1/2" 3/4x16 1/2" 7/8" 815V HY08-08MJ 103HY-8-8 08U-508
CS08-8X10 1/2" 7/8x14 5/8" 7/8" 818V HY08-10MJ 103HY-10-8 08U-510
CS08-8X12 1/2" 1-1/16x12 3/4" 1-1/8" 848V HY08-12MJ 103HY-12-8 08U-512
CS08-10X8 5/8" 3/4x16 1/2" 15/16" 1012V HY10-08MJ - 10U-508
CS08-10X10 5/8" 7/8x14 5/8" 15/16" 1018V HY10-10MJ 103HY-10-10 10U-510
CS08-10X12 5/8" 1-1/16x12 3/4" 1-1/8" 1015V HY10-12MJ 103HY12-10 10U-512
CS08-12X10 3/4" 7/8x14 5/8" 1-1/8" 1218V HY12-10MJ 103HY-10-12 12U-510
CS08-12X12 3/4" 1-1/16x12 3/4" 1-1/8" 1215V HY12-12MJ 103HY-12-12 12U-512
CS08-12X14 3/4" 1-3/16x12 7/8" 1-3/8" 1260V HY12-14MJ 103HY-14-12 12U-514
CS08-12X16 3/4" 1-5/16x12 1" 1-3/8" 1233V HY12-16MJ 103HY-16-12 12U-516
CS08-16X14 1" 1-3/16x12 7/8" 1-3/8" 1615V HY16-14MJ 103HY-14-16 16U-514
CS08-16X16 1" 1-5/16x12 1" 1-3/8" 1612V HY16-16MJ 103HY-16-16 16U-516
CS08-20X20 1-1/4" 1-5/8x12 1-1/4" 1-11/16" 2015V HY20-20MJ 103HY-20-20 20U-520

The cross reference is for thread identification and hose inside diameter only. Exact dimensions of the couplings may vary from manufacturer to manufacturer. Please check hose cut off factor, tube length, and tube drop carefully.
