CS10-20X20 Couplamatic VARI-CRIMP Coupling - BSPP - British Standard Parallel 60° Cone - Female Swivel - 1-1/4" Hose ID - G-1-1/4-11 Thread - 1-1/4" BSPP (Old Part Number: 2081V)

CS10-20X20 by Couplamatic | VARI-CRIMP Coupling | 1-1/4" Hose ID x G-1-1/4-11 Thread Female Swivel | 1-1/4" BSPP | Straight | Trivalent Zinc Plating | Replaces: 2081V

Save $25.32

$63.30

$63.30 - $63.30

$63.30

$37.98

$37.98 - $37.98

$37.98

Couplamatic Systems Inc.
Vari-Crimp Couplings - BSPP - British Standard Parallel 60° Cone - Female Swivel

Specifications for Variant SKU: CS10-20X20 Couplamatic
Series:	VARI-CRIMP Series
Shape (Orientation):	Straight
Ends Configuration:	1-1/4in Female BSPP, 1-1/4in Hose Barb
Material(s):	Steel
Compatible with the following Series:	56MB-1 Series \| 57MB-2 Series \| 56MB-2 Series \| HPI Series \| HPIII Series \| 2SN Series \| R16 Series \| DH16 Series \| DHEX16 Series \| R17 Series \| R17R Series \| WDH17 Series \| 3319A Series

Description:
The Vari-Crimp coupling is compatible with virtually all Crimp Machines. Trivalent Zinc Plating. G. as part of thread size is ISO designation for parallel thread.

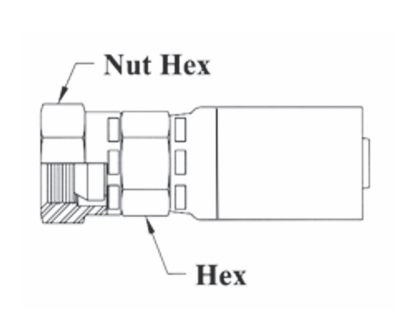

Part Number	Hose ID	BSPP Size	Thread Size	Hex Size	Nut Hex	PreviousPart Number	Cross Reference Part Numbers
Part Number	Hose ID	BSPP Size	Thread Size	Hex Size	Nut Hex	PreviousPart Number	Dayco HY	Parker HY	Weatherhead U
CS10-4X4	1/4"	1/4"	G-1/4-19	9/16"	3/4"	481V	HY04-04BPF	1GUHY-4-4	04U-354
CS10-4X6	1/4"	3/8"	G-3/8-19	3/4"	7/8"	486V	HY04-06BPF	1GUHY-6-4	04U-356
CS10-6X6	3/8"	3/8"	G-3/8-19	3/4"	7/8"	681V	HY06-06BPF	1GUHY-6-6	06U-356
CS10-6X8	3/8"	1/2"	G-1/2-14	3/4"	1"	694V	HY06-12BPF	192HY-8-6 1GUHY-8-6	06U-358
CS10-8X8	1/2"	1/2"	G-1/2-14	7/8"	1"	881V	HY08-08BPF	CS10-8X8	08U-358
CS10-10X10	5/8"	5/8"	G-5/8-14	15/16"	1-3/16"	1081V	HY10-10BPF	1GUHY-10-10	10U-360
CS10-12X12	3/4"	3/4"	G-3/4-14	1-1/8"	1-1/4"	1281V	HY12-12BPF	1GUHY-12-12	12U-362
CS10-16X16	1"	1"	G-1-11	1-3/8"	1-1/2"	1681V	HY16-16BPF	1GUHY-16-16	16U-366
CS10-20X20	1-1/4"	1-1/4"	G-1-1/4-11	1-11/16"	1-7/8"	2081V	-	-	20U-370

The cross reference is for thread identification and hose inside diameter only. Exact dimensions of the couplings may vary from manufacturer to manufacturer. Please check hose cut off factor, tube length, and tube drop carefully.
