CS205 by Couplamatic | 2" Benchtop Crimper

CS205 by Couplamatic | 2" Benchtop Crimper

Save $749.69 Save $749.69
$13,083.02
$13,083.02 - $13,083.02
$13,083.02
$12,333.33
$12,333.33 - $12,333.33
$12,333.33

Couplamatic Inc
Hose Fabrication Equipment - Hydraulic Hose Assembly Equipment - 2" Benchtop Crimper & Optional Dies
Specifications for Variant SKU: CS205 Couplamatic

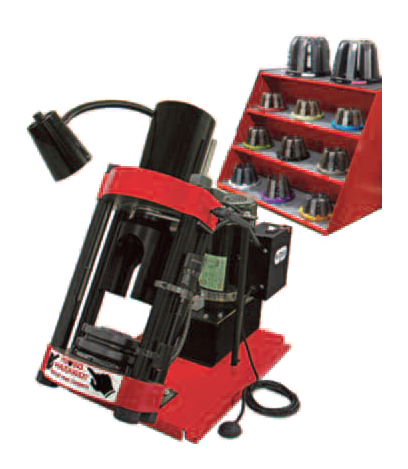

CS205: 2" Benchtop Crimper
  • Capable of crimping thru 2" Six Spiral Hose. It comes standard with a set of dies to crimp thru 2" Four Spiral (GW Series) and a die storage shelf. It is powered by a 80 ton cylinder and a 2.0 HP, 220 Volt automatic pump.
  • Standard Dies: 0.520, 0.670, 0.830, 0.950, 1.100, 1.320, 1.500, 1.730, 1.920, 2.140, & 2.800 Crimps 1/4" thru 1-1/4" Vari-Crimp, A Series, & Grip-Crimp, 1/2" thru 1-1/4" 4H Series, & 1/2" thru 2" GW Series.
  • Optional Dies: See Below
Part Number Description
CS205 2" Benchtop Crimper
Optional Dies
Part Number Die Coupling Series
EN98-020-09 0.350 3/16" & 1/4" T Series, 1/8" 3-Series Thermoplastic
EN98-020-0450 0.450 5/16" T Series, 3/16" 3-Series Thermoplastic
CC-020-1181 1.181 5/8" 6GC Series
EN98-032-08 1.730 WB 1" 6GC, 1-3/8" R5 Series
EN98-032-04 1.920 WB 1-1/4" SX
EN98-032-12 2.050 WB 1-1/2" 4H Series
EN98-032-01 2.300 WB 1-1/2" Grip Crimp, 1-1/2" 4GC, 1-1/2" 6GC, 1-1/2" SX
EN98-032-07 2.620 WB 2" 4H Series, 2" Grip Crimp, 2" 4GC
EN98-032-09 3.000 WB 2" 6GC
