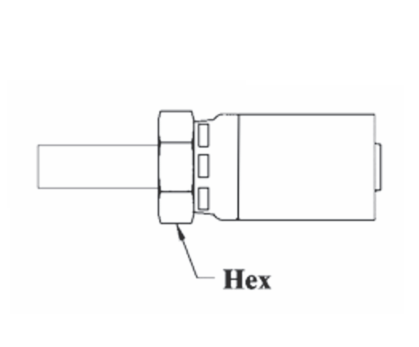

CS21-10X10 Couplamatic VARI-CRIMP Coupling - Standpipe - 5/8" Hose ID - 5/8" Tube Size (Old Part Number: 10T10V)

CS21-10X10 by Couplamatic | VARI-CRIMP Coupling | 5/8" Hose ID x 5/8" Tube Size Standpipe | Straight | Trivalent Zinc Plating | Replaces: 10T10V

Save $5.95

$14.87

$14.87 - $14.87

$14.87

$8.92

$8.92 - $8.92

$8.92

Couplamatic Systems Inc.
Vari-Crimp Couplings - Standpipe

Specifications for Variant SKU: CS21-10X10 Couplamatic
Series:	VARI-CRIMP Series
Shape (Orientation):	Straight
Ends Configuration:	5/8in Tube Stub, 5/8in Hose Barb
Material(s):	Steel
Compatible with the following Series:	56MB-1 Series \| 57MB-2 Series \| 56MB-2 Series \| HPI Series \| HPIII Series \| 2SN Series \| R16 Series \| DH16 Series \| DHEX16 Series \| R17 Series \| R17R Series \| WDH17 Series \| 3319A Series

Description:
The Vari-Crimp coupling is compatible with virtually all Crimp Machines. Trivalent Zinc Plating.

Part Number	Hose ID	Tube Size	Tube Rise	Hex Size	PreviousPart Number	Cross Reference Part Numbers
Part Number	Hose ID	Tube Size	Tube Rise	Hex Size	PreviousPart Number	Dayco HY	Parker HY	Weatherhead U
CS21-4X4	1/4"	1/4"	1.10	5/8"	4T04V	HY04-04RL	-	04U-T04
CS21-6X6	3/8"	3/8"	1.30"	3/4"	6T06V	HY06-06RL	134HY-6-6	06U-T06
CS21-8X8	1/2"	1/2"	1.58"	7/8"	8T08V	HY08-08RL	-	08U-T08
CS21-10X10	5/8"	5/8"	1.34"	1"	10T10V	HY10-10RL	-	10U-T10
CS21-12X12	3/4"	3/4"	1.17"	1-1/8"	12T12V	HY12-12RL	134HY-12-12	12U-T12
CS21-16X16	1"	1"	1.30"	1-3/8"	16T16V	HY16-16RL	-	16U-T16

The cross reference is for thread identification and hose inside diameter only. Exact dimensions of the couplings may vary from manufacturer to manufacturer. Please check hose cut off factor, tube length, and tube drop carefully.

Couplamatic Systems Inc

In the business for over 50 years, we're here to bring you the highest quality, most rigorously tested, American made hydraulic components on the market. We utilize state-of-the-art facilities and equipment to produce industry leading, quality hydraulic products. When you buy Couplamatic System Inc. products, you are buying precision and reliability.
