CS22-6X6 Couplamatic VARI-CRIMP Coupling - SAE 45° Seat - 45° Female Swivel - 3/8" Hose ID - 5/8x18 Thread (Old Part Number: 6148V)

CS22-6X6 by Couplamatic | VARI-CRIMP Coupling | 3/8" Hose ID x 5/8x18 Thread SAE 45° Seat Female Swivel | 45° Elbow | Trivalent Zinc Plating | Replaces: 6148V

Save $5.70 Save $5.70
$14.25
$14.25 - $14.25
$14.25
$8.55
$8.55 - $8.55
$8.55

Couplamatic Systems Inc.
Vari-Crimp Couplings - SAE 45° Seat - 45° Female Swivel
Specifications for Variant SKU: CS22-6X6 Couplamatic
Series: VARI-CRIMP Series
Shape (Orientation): 45 Degree
Ends Configuration: 3/8in Female SAE 45 Flare, 3/8in Hose Barb
Material(s): Steel
Compatible with the following Series: 56MB-1 Series  |   57MB-2 Series  |   56MB-2 Series  |   HPI Series  |   HPIII Series  |   2SN Series  |   R16 Series  |   DH16 Series  |   DHEX16 Series  |   R17 Series  |   R17R Series  |   WDH17 Series  |   3319A Series
Description:
  • The Vari-Crimp coupling is compatible with virtually all Crimp Machines. Trivalent Zinc Plating.

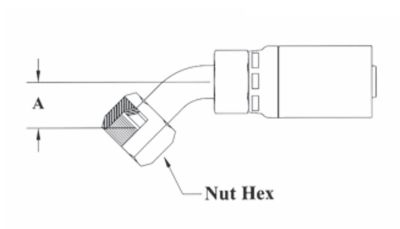

Part Number Hose ID Thread Size Tube OD A-Drop Inches Nut Hex Previous Part Number Cross Reference Part Numbers
Dayco HY Parker HY Weatherhead U
CS22-6X6 3/8" 5/8x18 3/8" 0.59" 3/4" 6148V HY06-06FA45T 177HY-6-6 06U-486

The cross reference is for thread identification and hose inside diameter only. Exact dimensions of the couplings may vary from manufacturer to manufacturer. Please check hose cut off factor, tube length, and tube drop carefully.

Couplamatic Systems Inc

Couplamatic Systems Inc

In the business for over 50 years, we're here to bring you the highest quality, most rigorously tested, American made hydraulic components on the market. We utilize state-of-the-art facilities and equipment to produce industry leading, quality hydraulic products. When you buy Couplamatic System Inc. products, you are buying precision and reliability.
