CS26-8X10 Couplamatic VARI-CRIMP Coupling - JIC/SAE Dual Seat - 90° Female Swivel - 1/2" Hose ID - 7/8x14 Thread (Old Part Number: 8160V)

CS26-8X10 by Couplamatic | VARI-CRIMP Coupling | 1/2" Hose ID x 7/8x14 Thread JIC/SAE Dual Seat Female Swivel | 90° Elbow | Trivalent Zinc Plating | Replaces: 8160V | Pack of 5

Save $6.04 Save $6.04
$60.38
$60.38 - $60.38
$60.38
$54.34
$54.34 - $54.34
$54.34

Couplamatic Systems Inc.
Vari-Crimp Couplings - JIC/SAE Dual Seat - 90° Female Swivel

Package Quantity: 5 EA

Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for Variant SKU: CS26-8X10 Couplamatic | 5 |
Series: VARI-CRIMP Series
Shape (Orientation): 90 Degree
Ends Configuration: 5/8in Female JIC, 1/2in Hose Barb, 5/8in Female SAE 45 Flare
Material(s): Steel
Compatible with the following Series: 56MB-1 Series  |   57MB-2 Series  |   56MB-2 Series  |   HPI Series  |   HPIII Series  |   2SN Series  |   R16 Series  |   DH16 Series  |   DHEX16 Series  |   R17 Series  |   R17R Series  |   WDH17 Series  |   3319A Series
Description:
  • The Vari-Crimp coupling is compatible with virtually all Crimp Machines. Trivalent Zinc Plating.

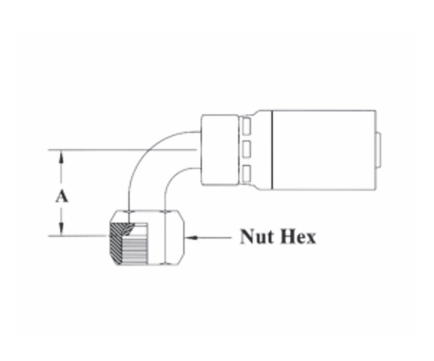

Part Number Hose ID Thread Size Tube OD A-Drop Inches Nut Hex Previous Part Number Cross Reference Part Numbers
Dayco HY Parker HY Weatherhead U
CS26-4X4 1/4" 7/16x20 1/4" 0.81" 9/16" 4130V HY04-04FJ90T 139HY-4-4 04U-664
CS26-4X5 1/4" 1/2x20 5/16" 0.83" 5/8" 4157V HY04-05FJ90T 139HY-5-4 04U-665
CS26-4X6* 1/4" 9/16x18 3/8" 0.91 11/16" 4160V* HY04-06FJ90T 139HY-6-4 04U-666
CS26-6X4 3/8" 7/16x20 1/4" 0.81 9/16" 6187V - - 06U-664
CS26-6X5 3/8" 1/2x20 5/16" 0.83 5/8" 6133V - - -
CS26-6X6* 3/8" 9/16x18 3/8" 0.91 11/16" 6160V* HY06-06FJ90T 139HY-6-6 06U-666
CS26-6X8 3/8" 3/4x16 1/2" 1.15" 7/8" 6163V HY06-08FJ90T 139HY-8-6 06U-668
CS26-8X8 1/2" 3/4x16 1/2" 1.15 7/8" 8133V HY08-08FJ90T 139HY-8-8 08U-668
CS26-8X10 1/2" 7/8x14 5/8" 1.23 1" 8160V HY08-10FJ90T 139HY-10-8 08U-670
CS26-10X10 5/8" 7/8x14 5/8" 1.23 1" 1060V HY10-10FJ90T 139HY-10-10 10U-670
CS26-10X12* 5/8" 1-1/16x12 3/4" 1.88 1-1/4" 1066V* HY10-12FJ90T 139HY-12-10 10U-672
CS26-12X10 3/4" 7/8x14 5/8" 1.23 1" 12660V HY12-10FJ90T 139HY-10-12 12U-670
CS26-12X12* 3/4" 1-1/16x12 3/4" 1.88 1-1/4" 12651V* HY12-12FJ90T 139HY-12-12 12U-672
CS26-12X16* 3/4" 1-5/16x12 1" 2.20 1-1/2" 12666V* - - -
CS26-16X16* 1" 1-5/16x12 1" 2.20 1-1/2" 16651V* HY16-16FJ90T 139HY-16-16 16U-676
CS26-20X20 1-1/4" 1-5/8x12 1-1/4" 3.31 2" 20677V HY20-20FJ90T - 20U-677

* JIC Seat & Thread Only.

The cross reference is for thread identification and hose inside diameter only. Exact dimensions of the couplings may vary from manufacturer to manufacturer. Please check hose cut off factor, tube length, and tube drop carefully.
