CS39-6X18 Couplamatic VARI-CRIMP Coupling - Komatsu 30° Flare - Female Swivel - 3/8" Hose ID - M18x1.5 Thread (Old Part Number: 6K18V)

CS39-6X18 by Couplamatic | VARI-CRIMP Coupling | 3/8" Hose ID x M18x1.5 Thread Female Swivel Komatsu 30° Flare | Straight | Trivalent Zinc Plating | Replaces: 6K18V

Save $5.31 Save $5.31
$13.27
$13.27 - $13.27
$13.27
$7.96
$7.96 - $7.96
$7.96

Couplamatic Systems Inc.
Vari-Crimp Couplings - Komatsu 30° Flare - Female Swivel
Specifications for Variant SKU: CS39-6X18 Couplamatic
Series: VARI-CRIMP Series
Shape (Orientation): Straight
Ends Configuration: 18mm Female Komatsu, 3/8in Hose Barb
Material(s): Steel
Compatible with the following Series: 56MB-1 Series  |   57MB-2 Series  |   56MB-2 Series  |   HPI Series  |   HPIII Series  |   2SN Series  |   R16 Series  |   DH16 Series  |   DHEX16 Series  |   R17 Series  |   R17R Series  |   WDH17 Series  |   3319A Series
Description:
  • The Vari-Crimp coupling is compatible with virtually all Crimp Machines. Trivalent Zinc Plating.

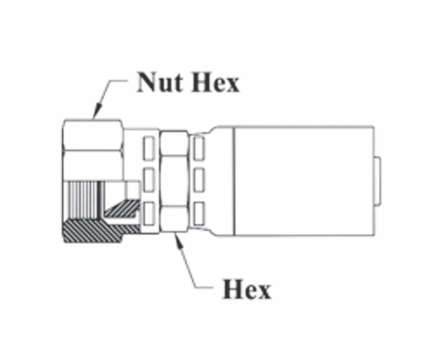

Part Number Hose ID Thread Size Hex Size Nut Hex PreviousPart Number Cross Reference Part Numbers
Dayco HY Parker HY Weatherhead U
CS39-4X14 1/4" M14x1.5 9/16" 3/4" 4K14V HY04-14KMF 1MUHY-4-4 04U-14K
CS39-6X18 3/8" M18x1.5 11/16" 7/8" 6K18V HY06-18KMF 1MUHY-6-6 06U-18K
CS39-8X22 1/2" M22x1.5 7/8" 1" 8K22V HY08-22KMF 1MUHY-22-8 08U-22K
CS39-10X24 5/8" M24x1.5 1" 1-1/4" 10K24V HY10-24KMF 1XUHY-24-10 10U-24K
CS39-12X30 3/4" M30x1.5 1-1/8" 1-3/8" 12K30V HY12-30KMF 1XUHY-12-12 12U-30K
CS39-16X33 1" M33x1.5 1-3/8" 1-5/8" 16K33V HY16-33KMF 1XUHY-16-16 16U-33K
CS39-20X36 1-1/4" M36x1.5 1-11/16" 1-7/8" 20K36V - - 20U-36K

The cross reference is for thread identification and hose inside diameter only. Exact dimensions of the couplings may vary from manufacturer to manufacturer. Please check hose cut off factor, tube length, and tube drop carefully.

Couplamatic Systems Inc

Couplamatic Systems Inc

In the business for over 50 years, we're here to bring you the highest quality, most rigorously tested, American made hydraulic components on the market. We utilize state-of-the-art facilities and equipment to produce industry leading, quality hydraulic products. When you buy Couplamatic System Inc. products, you are buying precision and reliability.
