CS44-12X22 Couplamatic VARI-CRIMP Coupling - DIN Light Universal Seat - Female Swivel 90° Bend - 3/4" Hose ID - M30x2.0 Thread (Old Part Number: 12D72V)

CS44-12X22 by Couplamatic | VARI-CRIMP Coupling | 3/4" Hose ID x M30x2.0 Thread DIN Light Universal Seat Female Swivel | 90° Elbow | Trivalent Zinc Plating | Replaces: 12D72V

Save $14.15 Save $14.15
$35.37
$35.37 - $35.37
$35.37
$21.22
$21.22 - $21.22
$21.22

Couplamatic Systems Inc.
Vari-Crimp Couplings - DIN Light Universal Seat - Female Swivel 90° Bend
Specifications for Variant SKU: CS44-12X22 Couplamatic
Series: VARI-CRIMP Series
Shape (Orientation): 90 Degree
Ends Configuration: L22 Female DIN, 3/4in Hose Barb
Material(s): Steel
Compatible with the following Series: 56MB-1 Series  |   57MB-2 Series  |   56MB-2 Series  |   HPI Series  |   HPIII Series  |   2SN Series  |   R16 Series  |   DH16 Series  |   DHEX16 Series  |   R17 Series  |   R17R Series  |   WDH17 Series  |   3319A Series
Description:
  • The Vari-Crimp coupling is compatible with virtually all Crimp Machines. Trivalent Zinc Plating.

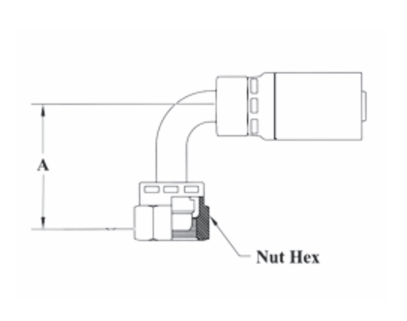

Part Number Hose ID Tube Size Thread Size A-DropInches Nut Hex PreviousPart Number Cross Reference Part Numbers
Dayco HY Parker HY Weatherhead U
CS44-4X8 1/4" 8mm M14x1.5 1.48" 11/16" 4D58V HY04-08RU14A90T 1C5HY-8-4 04U-58D
CS44-4X10 1/4" 10mm M16x1.5 1.65" 3/4" 4D60V HY04-10RU16A90T 1C5HY-10-4 04U-60D
CS44-6X10 3/8" 10mm M16x1.5 1.65" 3/4" 6D60V HY06-10RU16A90T 1C5HY-10-6 06U-60D
CS44-6X12 3/8" 12mm M18x1.5 1.65" 7/8" 6D62V HY06-12RU18A90T 1C5HY-12-6 06U-62D
CS44-8X15 1/2" 15mm M22x1.5 1.93" 1-1/16" 8D65V HY08-15RU22A90T 1C5HY-15-8 08U-65D
CS44-10X18 5/8" 18mm M26x1.5 2.31" 1-1/4" 10D68V - - 10U-68D
CS44-12X22 3/4" 22mm M30x2.0 2.59" 1-1/2" 12D72V HY12-22RU30B90T 1C5HY-22-12 12U-72D

The cross reference is for thread identification and hose inside diameter only. Exact dimensions of the couplings may vary from manufacturer to manufacturer. Please check hose cut off factor, tube length, and tube drop carefully.
